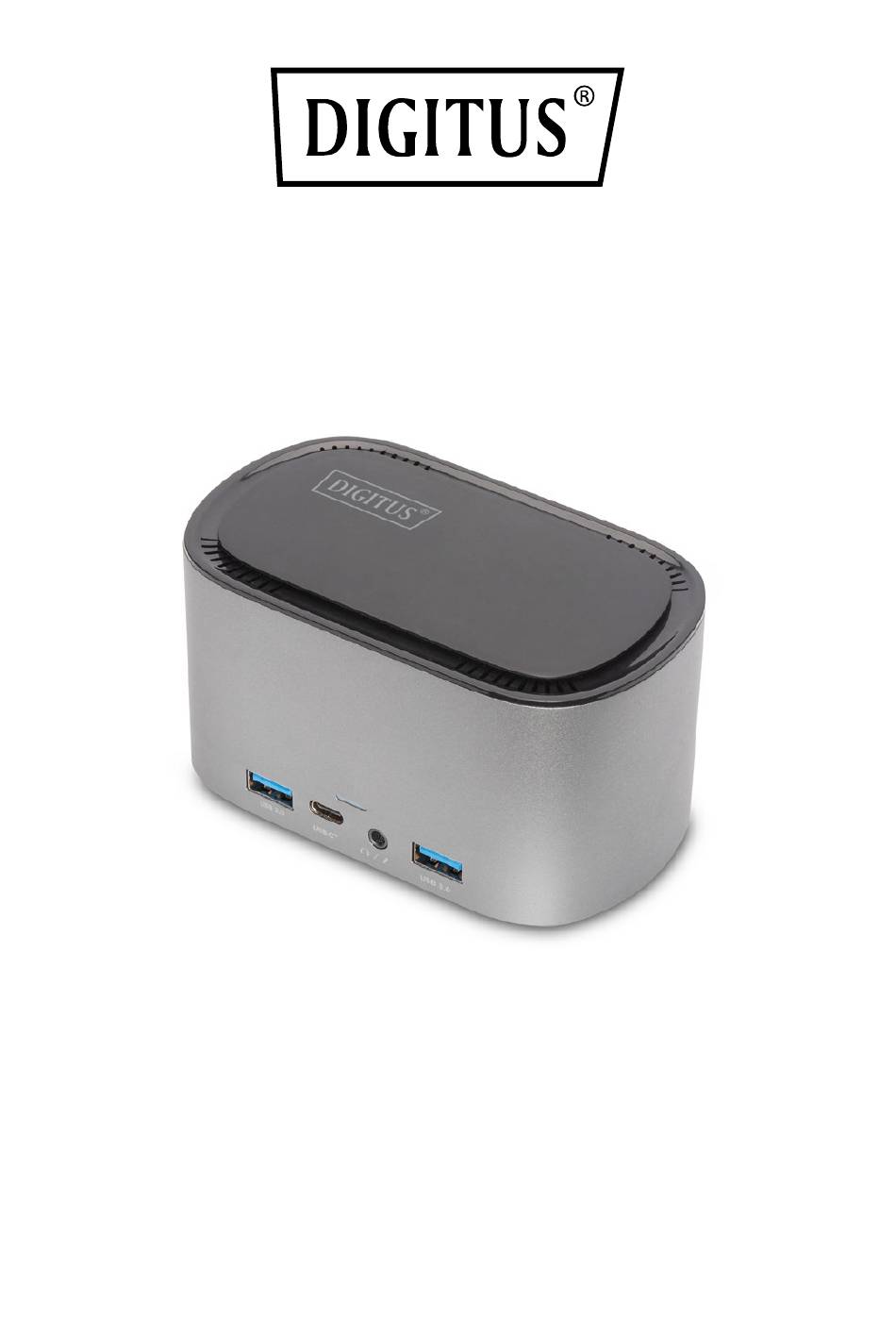

- Page 1 11-PORT USB-C™ DOCKING STATION WITH SSD ENCLOSURE (M.2) Manual DA-70889...
- Page 2 Product Introduction This DIGITUS® 11-in-1 docking station provides you with a housing for M.2 NGFF SSD memory in addition to the common interfaces such as HDMI®, DisplayPort™, USB or Ethernet. Here you can buffer or store data, e.g. for a presentation.

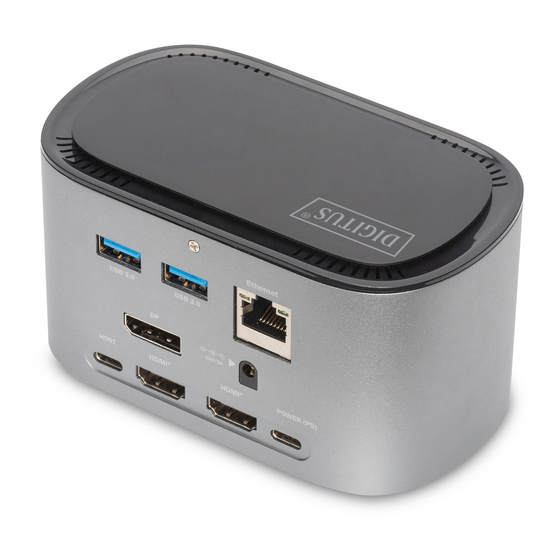

- Page 3 Structure Diagram Front： Back： 1. M.2 SATA 3.0 NGFF SSD Enclosure 1. USB-A (data 5Gbps) 2. LED indicator 2. USB-A (data 5Gbps) 3. USB-A (data + downstream charge) 3. RJ45 Gigabit Ethernet 4. USB-C (data + downstream charge) 4. DP 5.
- Page 4 Connection Features Front: 1. M.2 SATA 3.0 NGFF SSD Enclosure Transfer speed: 5Gbps 2. Exclusively designed for SATA-based M.2/ NGFF (B key & B+M Key) SSD ONLY 3. Support SSD lengths including: 80 mm (2280), 60 mm (2260), 42 mm (2242) and 30 mm (2230) M.2 NGFF SATA SSD up to 2TB. NOTE: It doesn’t support M.2 NVMe PCI-E SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-SATA devices.
- Page 5 6. USB-C: connect to host 7. HDMI 1: 4Kx2K 30Hz / 3840x2160 max 8. HDMI 2: 4Kx2K 60Hz / 3840x2160 (work separately while source is DP 1.4 ) 4Kx2K 30Hz / 3840x2160 (work separately while source is DP 1.2 ) 9.
- Page 6 Warm Reminder 1. Please make sure the USB-C port of your Smartphone/Tablet/Laptop supports the DP feature before purchase, or your PC will not output any contents. 2. 4Kx2K@60Hz video display, need your computer support DisplayPort (DP) v1.4 (HBR3). 3. Please update Mac OS of your MacBook to Catalina (10.15.1) or above version for better compatibility.
