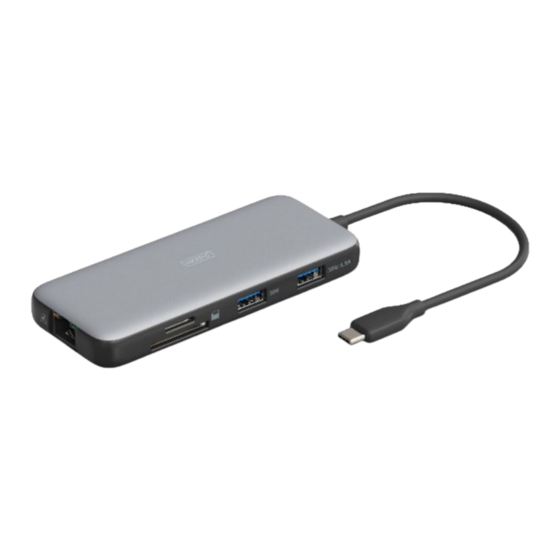

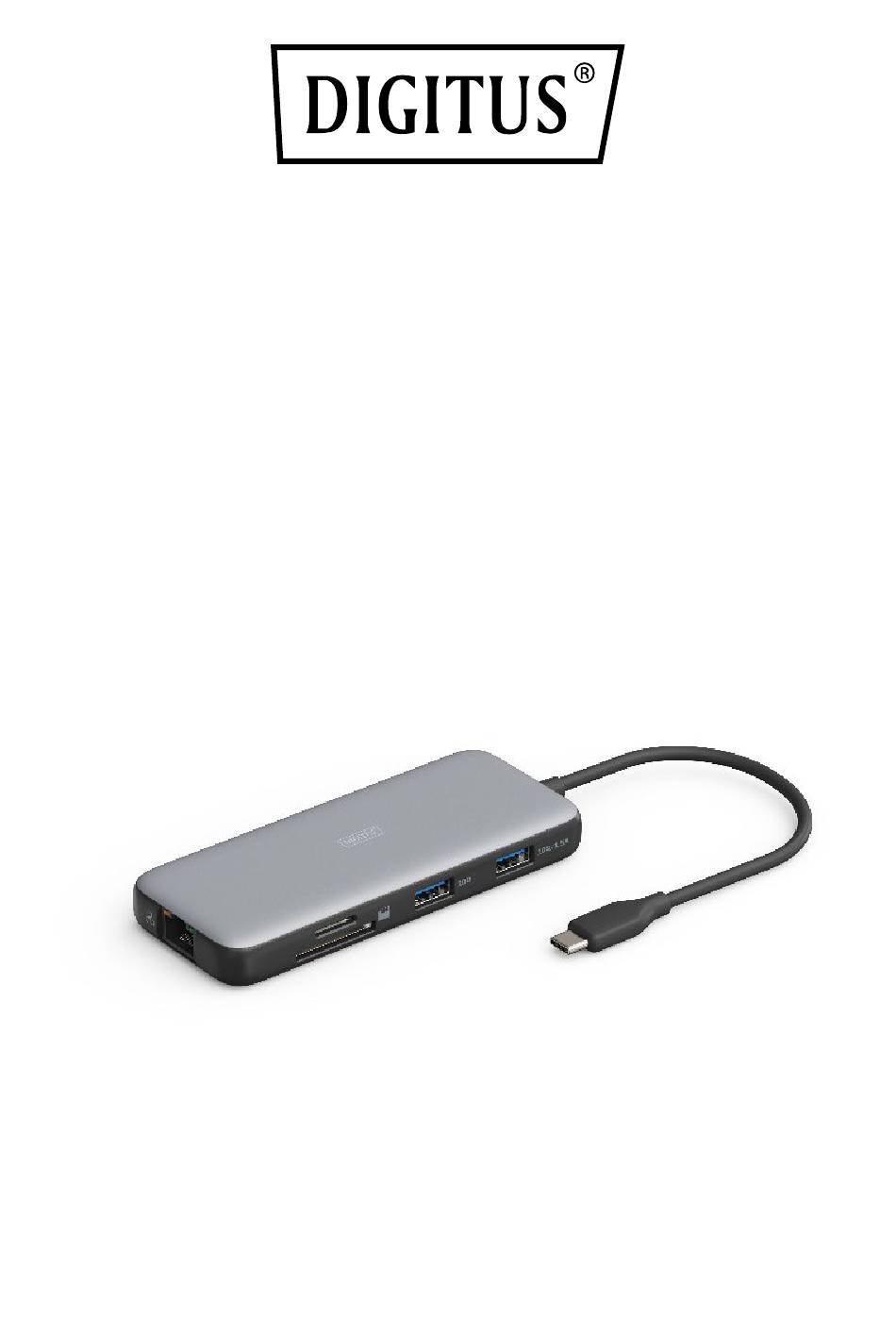

- Page 1 USB-C Docking Station, 7-Port Quick Installation Guide DA-70914...
-
Page 2: Table Of Contents
Table of contents Introduction ................3 Features ...................3 Package content ...............4 Specifications ................4 Connection diagram ..............6... -
Page 3: Introduction
1. Introduction Our 7-Port Docking Station is the ideal solution for expanding and optimizing your workstation. With an HDMI port for an additional external monitor, two fast USB-A 3.2 Gen 2 ports (10 Gbit/s) – One of which has a charging function for mobile devices, a Gigabit Ethernet port (RJ45) for a reliable network connection and two card readers (SD/MicroSD) with high transfer speeds, it offers comprehensive connectivity. -
Page 4: Package Content
• Supports HDCP 2.2, HDCP 1.4, HDCP 1.3 Supports HDR10+ • 3. Package content • 1x USB-C Docking Station, 7-Port 1x QIG • 4. Specifications 1x USB-C (3.2 Gen 2) input – Host PC connection 1x HDMI output – Max. Resolution: UHD 4K/60Hz 2x USB-A 3.2 Gen 2 connection –... - Page 5 Supports HDCP 2.2, HDCP 1.4, HDCP 1.3 Short-circuit, overcurrent and overvoltage protection protection Product colour Grey/ Black Housing Aluminium / Plastic Weight 109 g Dimensions L 12 x W 5 x H 1.55 cm Operating 0°C - + 40°C temperature Cable length 20 cm Cable colour...
-
Page 6: Connection Diagram
5. Connection diagram Gigabit Ethernet Host PC HDMI Display Micro SD3.0 / SD3.0 (max. 4K/60Hz) PD Power Adapter USB devices (max. 100W) - Page 7 Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. info@assmann.com ASSMANN Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
