Components and Functions

This chapter introduces the names of components and the functions of the high-speed
scanner

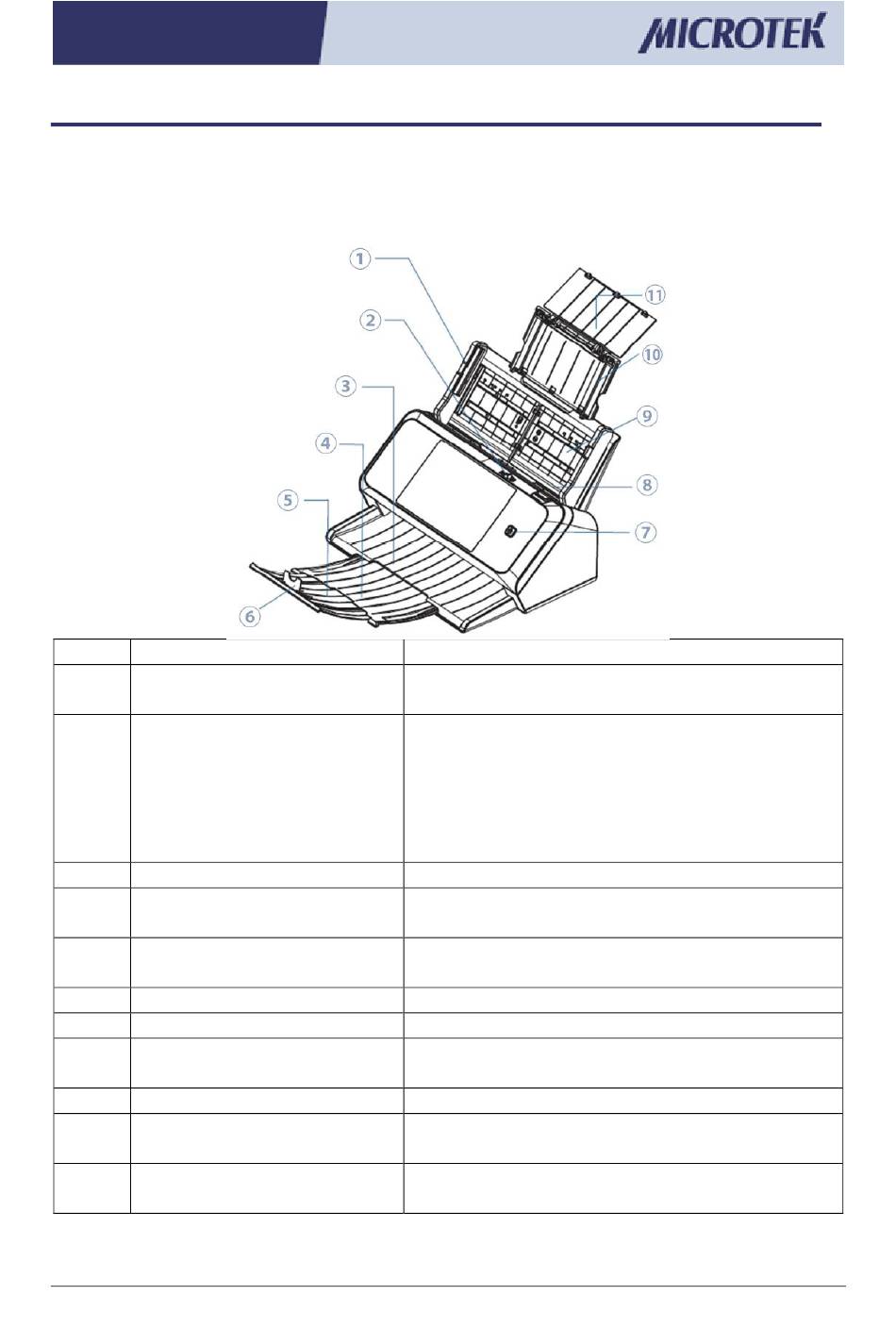

Front
No. Name
1 Guide arm (left/right)
2 Paper feed mode toggle switch
3 Paper output tray
4 Paper output tray extension
board A
5 Paper output tray extension
board B
6 Paper stop board
7 Power button
8 Release button
9 Paper feed tray
Paper feed tray extension
10
board A
Paper feed tray extension
11
board B
Description
Adjust the position of documents to suitable
positions
Slide the switch to toggle between "split" and "non-
split" mode.
- Slide it to the left (white) to set the mode to
manual/single paper feed mode (non-split).
- Slide it to the right (black) to set the mode to
multiple feed mode (split).
Stack the output documents
Pull it out to extend the length of the output tray
Pull it out to extend the length of the output tray
Stop a stack of the output documents from sliding off
Control the scanner's on/off and sleep mode
Lift it up to open the scanner cover for removing
paper jams or for cleaning.
Place the documents to be scanned
Pull it out to extend the length of the feed tray.
Pull it out to extend the length of the feed tray
2-1
