XL-SEAT
INSTALLATION MANUAL
XLS-FRD99L
FORD WINDSTAR 1999-2003 | FORD FREESTAR 2004-2007
MERCURY MONTEREY 2004-2007
DRIVER

Advertisement

loading
Need help?

Need help?

Do you have a question about the XL-SEAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADAPT SOLUTIONS XL-SEAT

  • Page 1 XL-SEAT INSTALLATION MANUAL XLS-FRD99L FORD WINDSTAR 1999-2003 | FORD FREESTAR 2004-2007 MERCURY MONTEREY 2004-2007 DRIVER...

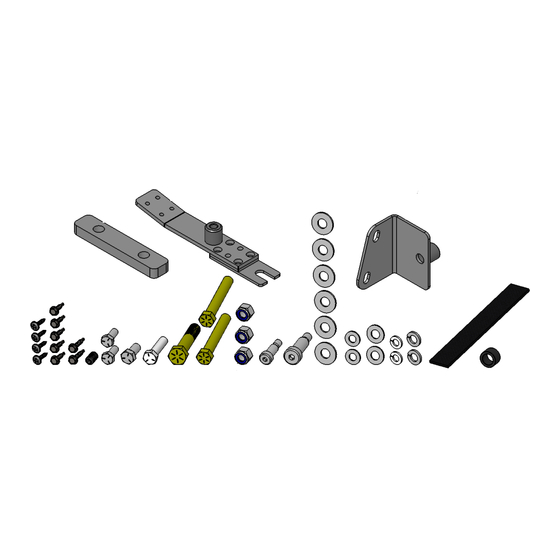

  • Page 2 KIT XL-SEAT FORD MINI-VAN 1999 - 2007 XLS-FRD99-02 Tightening Plate for Floor Adapter XLS-FRD99-03 "B" Pillar Adapter XLS-FRD99L-04 Groove's Adapter to "B" Pillar -Left- XLS-FRD99-BK Bolt Kit PART NUMBER XLS-FRD99L-00 DESCRIPTION XL-Seat Kit Ford Minivan 1999 - 2007 -Left- |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 3 Tighten the slide in place and secure the bottom part of the adaptor in place using self-tapping screws. FOR FREESTAR AND MONTEREY MODELS REFER TO THE ATTACHED DOCUMENT BEFORE CONTINUING. XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 2...
  • Page 4 # XLS-FRD99L-05 and fasten it in place by using the small black screws provided in the kit. (Fasten them behind the rubber seal.) XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 3...
  • Page 5 6- Install the XL-SEAT. To do this, secure the bottom of XL-SEAT to the floor adaptor using a 3/8’’ x 3/4’’ bolt. Attach the motor to the floor adaptor using a 3/8’’ x 1 1/4’’ shoulder bolt.
  • Page 6 ELECTRICAL INSTALLATION FOR XL-SEAT. 9- Install the safety cover over the motor and the seat belt reel of the XL-SEAT using a self- tapping screw. Reinstall the carpet over the floor adaptor. Make a small cut at the base of the motor to allow the carpet to fit in place.
  • Page 7  Make sure that XL-SEAT works well with and without a passenger.  Make sure the door closes properly. (Note: It is normal for the XL-SEAT to touch the door panel trim.)  Make sure the safety guards are fastened in place.
  • Page 8 If the arm of the HI-LIFT is too long, follow the next 4 (four) steps. Remove the rubber end, measure the needed length and cut off the excess. Once completed, reinstall the rubber end. XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 7...
  • Page 9 Secure each side of the strap using the screws that hold the seat together. XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 8...
  • Page 10 “Velcro”. WARNING: Place the hand held control in a safe place so that the door does not risk cutting off the wire. XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 9...
  • Page 11 BLACK = GROUNDED TO THE CHASSIS GREY WIRE TO THE PENDANT TWO YELLOW WIRES RED = 12V POWER SUPPLY TO THE XL-SEAT BLACK = GROUNDED TO THE ACTUATOR CHASSIS XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 10...
  • Page 12 ELECTRICAL BOX CONNECTIONS XL-SEAT with HI-LIFT XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 11...
  • Page 13 WARNING DEACLS After completing the installation of the XL-SEAT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface.  Start by locating a position to install the decals.
  • Page 14 UNDER THE VEHICLE BEFORE DRILLING THE WARNING MOUNTING HOLES TO BE SURE THE DRILL DOES NOT DAMAGE VEHICLE COMPONENTS. (WIRING, BRAKE, FUEL OR AC LINES) XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 13...
  • Page 15: Troubleshooting

    Coat the connection with anticorrosion spray once reassembled. An automotive battery may be weak, having enough power to start the car but not enough power for continuous use. XL-SEAT 1999-2003 FORD WINDSTAR | 2004-2007 FORD FREESTAR | 2004-2007 MERCURY MONTEREY DRIVER p. 14...
  • Page 16 Freight and other related repair charges will be the responsibility of the original purchaser. The only remedy for a defect in one of Adapt Solutions products shall be the repair or the replacement, at the discretion of Adapt Solutions, of the defective part or component. If repair or replacement is not commercially practical or cannot be timely made, Adapt Solutions may decide to refund the purchase price of the equipment (XL-SEAT) instead of repairing or replacing the original equipment.
