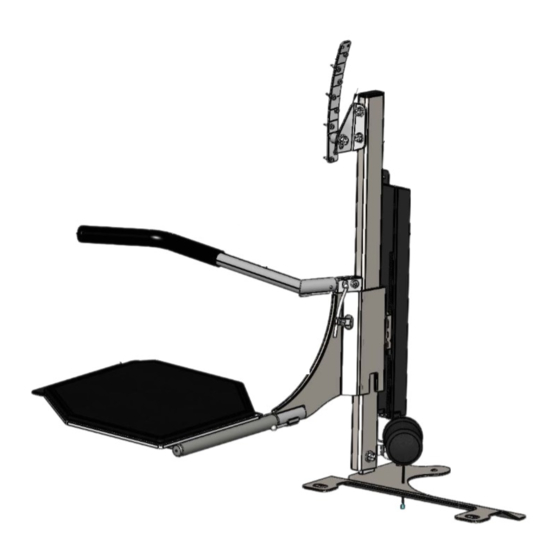

- Page 1 XL-SEAT INSTALLATION MANUAL XLS-SILR99R CHEVROLET SIERRA/SILVERADO EXTENDED CAB (WITHOUT SUICIDE DOORS) 1999-2002 CHEVROLET SIERRA/SILVERADO REGULAR CAB 1999-2006 DRIVER...
- Page 2 ITEM NUMÉRO DE PIÈCE DESCRIPTION XLS100-01R Coulisseau no. XLS100-01R XLS200-02 Fixation d'actuateur pour coulisseau - camionettes et SUV PRD 332-159P Vis cylindrique 6 pans creux plaqué zinc 3/8-16 x 1/2 XLS300-01R Bras de sécurité XL-SEAT -Droite- XLS400-01R Plaque de transfert -Droite- XLS430B-01R Coussin pour la planche de transfert -Droite- Noir XLS500-05...
- Page 3 Flat Washer Zinc Plated I.D. 13/32 SAE for 3/8 PRD 342-115P Spring Lockwasher Zinc plated 5/16 PRD 342-116P Spring Lockwasher Zinc Plated 3/8 XLS810-01 Ring Shock Motor SCALE 1:7 PART NUMBER XLS-SILR99R DESCRIPTION XL-Seat Kit -Right- 2 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 4 Socket set screw cup point 5/16-18 x 1 PRD 192-622 Spring Pin Ø1/4'' x 1-3/8'' Lg. PRD 332-159P Socket Head Cap Screw Zinc Plated 3/8-16 x 1/2 COVB-01 Motor cover PART NUMBER XLS-SILR99R SCALE 1:3 DESCRIPTION XL-Seat Kit -Right- 3 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 Hex Cap Bolt Zinc Plated 3/8-16 x 3/4 G5 PRD 341-147P Flat Washer Zinc Plated I.D. 13/32 SAE for 3/8 PRD 342-116P Spring Lockwasher Zinc Plated 3/8 85,00° SCALE 1:2 SCALE 1:3 SCALE 1:2 PART NUMBER XLS-SILR99R DESCRIPTION XL-Seat Kit -Right- 4 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 6 KIT XL-SEAT CHEVROLET SILVERADO REGULAR CAB 1999 - 2006 XLS810-01 Ring Shock Motor PRD 339-168P Socket Shoulder Screw Zinc 1/2 x 1 1/4 x 3/8-16 THD SCALE 1:3 PART NUMBER XLS-SILR99R DESCRIPTION 5 of 7 XL-Seat Kit -Right- |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 7 PRD 341-147P Flat Washer Zinc Plated I.D. 13/32 SAE for 3/8 PRD 342-115P Spring Lockwasher Zinc plated 5/16 PRD 342-116P Spring Lockwasher Zinc Plated 3/8 SCALE 1:3 PART NUMBER XLS-SILR99R DESCRIPTION XL-Seat Kit -Right- 6 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 8 Long Model Cover Molding PRD 125-117 Hex self-tapping screw #10 x 3/4'' Lg. PRD 339-139P Socket Shoulder Screw Zinc 3/8 x 3/4 x 5/16-18 THD SCALE 1:6 PART NUMBER XLS-SILR99R DESCRIPTION 7 of 7 XL-Seat Kit -Right- |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 9 PLEASE TAKE NOTE THAT THE PICTURES IN THIS MANUAL WERE TAKEN DURING AN INSTALLATION ON THE DRIVER SIDE. HOWEVER, THE INSTALLATION PROCEDURE IS THE SAME ON THE PASSENGER SIDE. Slide seat all the way forward. Remove the “B” pillar shroud as well as the doorstep molding.
- Page 10 Unbolt the back of the seat. Slide the floor adaptor # XLS-SILC07R-01 under the seat brackets. Use the vehicle’s floor bolts to secure the adaptor in place. NOTE: The adaptor should be installed as close to the “B” pillar as possible. Install the XL-SEAT.
-
Page 11: Final Inspection
Install the XL-SEAT transfer board. NOTE: The XL-SEAT transfer board has adjustment if needed. Lift off the cushion. Unbolt the four (4) flat head bolts, relocate the board to the desired position, and secure it in place using the four (4) flat head bolts. Once you have completed, reinstall the cushion. - Page 12 ELECTRICAL INSTALLATION XL-SEAT 1. Thread the lead power cable (red +) under the doorstep molding and through the firewall. WARNING: Pass through a grommet in the firewall to prevent the cable from chaffing. 2. Install the circuit breaker near the battery and then connect the battery to the circuit breaker.
- Page 13 ELECTRICAL BOX CONNECTIONS XL-SEAT ALONE CTRL BOX: XLS710-01 PENDANT: XLS760-01 RED = 12V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS GREY WIRE TO THE PENDANT TWO YELLOW WIRES RED = 12V POWER SUPPLY TO THE XL-SEAT BLACK = GROUNDED TO THE ACTUATOR CHASSIS XL-SEAT 1999-2002 CHEVROLET SIERRA/SILVERADO EXTENDED CAB (WITHOUT SUICIDE DOORS) | 1999-2006 CHEVROLET SIERRA/SILVERADO REGULAR...
-
Page 14: Warning Decals
WARNING DECALS After completing the installation of the XL-SEAT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface. Start by locating a position to install the decals. ... -
Page 15: Troubleshooting
Burnt out switch. Replace pendant. Bad connection. Check the electronic module under the seat. Make sure that all the wires are properly connected. Burnt out electronic module. Contact Adapt Solutions for replacement module. Burnt out actuator. Replace actuator. Power Loss. The XL-SEAT motor is not getting adequate electrical power because of a loose connection. -
Page 16: Year Limited Warranty
Freight and other related repair charges will be the responsibility of the original purchaser. The only remedy for a defect in one of Adapt Solutions products shall be the repair or the replacement, at the discretion of Adapt Solutions, of the defective part or component. If repair or replacement is not commercially practical or cannot be timely made, Adapt Solutions may decide to refund the purchase price of the equipment (XL-SEAT) instead of repairing or replacing the original equipment.
