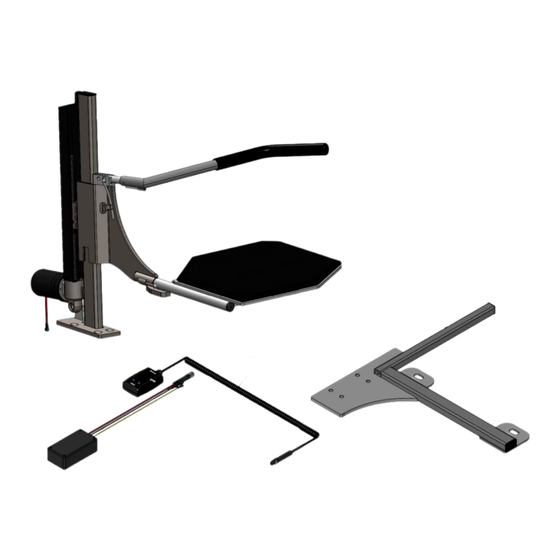

- Page 1 XL-SEAT INSTALLATION MANUAL XLS-COLX04L CHEVROLET CANYON/COLORADO EXTENDED CAB 2004-2012 DRIVER...
- Page 2 Socket set screw cup point 5/16-18 x 1 PRD 192-622 Spring Pin Ø1/4'' x 1-3/8'' Lg. XLS600B-01 Long Model Cover Molding XLS700-AL Electrical Kit COVB-01 Motor cover XLS-COLX04L-00 Installation Kit -Left- SCALE 1:6 PART NUMBER XLS-COLX04L DESCRIPTION XL-Seat Kit -Left- 1 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 3 Socket Shoulder Screw Zinc 3/8 x 3/4 x 5/16-18 THD PRD 339-168P Socket Shoulder Screw Zinc 1/2 x 1 1/4 x 3/8-16 THD XLS810-01 Ring Shock Motor SCALE 1:6 PART NUMBER XLS-COLX04L DESCRIPTION XL-Seat Kit -Left- 2 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 4 Spring Pin Ø1/4'' x 1-3/8'' Lg. PRD 332-159P Socket Head Cap Screw Zinc Plated 3/8-16 x 1/2 COVB-01 Motor cover SCALE 1:8 SCALE 1:4 PART NUMBER XLS-COLX04L Step 1 DESCRIPTION XL-Seat Kit -Left- 3 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 PART NUMBER DESCRIPTION XLS810-01 Ring Shock Motor PRD 339-168P Socket Shoulder Screw Zinc 1/2 x 1 1/4 x 3/8-16 THD SCALE 1:4 SCALE 1:3 PART NUMBER XLS-COLX04L DESCRIPTION Step 2 XL-Seat Kit -Left- 4 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 6 XLS-COLX04L-01 Floor Adapter -Left- XLS500-04R XL-SEAT Pillar 04 -Right- PRD 338-230P Flat Socket Cap Screw Zinc Plated 7/16-14 x 3/4 SCALE 1:8 SCALE 1:4 PART NUMBER XLS-COLX04L Step 3 DESCRIPTION XL-Seat Kit -Left- 5 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 7 Long Model Cover Molding PRD 125-117 Hex self-tapping screw #10 x 3/4'' Lg. PRD 339-139P Socket Shoulder Screw Zinc 3/8 x 3/4 x 5/16-18 THD SCALE 1:6 PART NUMBER XLS-COLX04L Step 4 DESCRIPTION XL-Seat Kit -Left- 6 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 8 1- Remove both of the seat recliner handles. Replace them with the handles provided in the installation kit. (NOTE: Handle # 001 must be installed on the lower part of the seat.) EFORE AFTER Remove the doorstep moulding. Slide the seat to its full forward position. Unbolt the back of the seat.
- Page 9 Reinstall the doorstep moulding. (NOTE: You will need to trim the moulding to fit around the XL-SEAT.) Install the transfer board. NOTE: The XL-SEAT transfer board can be adjusted if needed. Remove the cushion. Unbolt the four (4) flat head bolts, relocate the board to the desired position, and secure it in place using the four (4) flat head bolts.
- Page 10 7- Final inspection: Make sure all bolts are all properly fastened. Make sure that XL-SEAT works well with and without a passenger. Make sure the door closes properly. (Note: It is normal for the XL-SEAT to touch the door panel trim.) ...
- Page 11 ELECTRICAL INSTALLATION XL-SEAT 1. Thread the lead power cable (red +) under the doorstep moulding and through the firewall. WARNING: Pass through a grommet in the firewall to prevent the cable from chaffing. 2. Install the circuit breaker near the battery and then connect the battery to the circuit breaker.
- Page 12 ELECTRICAL BOX CONNECTIONS XL-SEAT ALONE CTRL BOX: XLS710-01 PENDANT: XLS760-01 RED = 12V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS GREY WIRE TO THE PENDANT TWO YELLOW WIRES RED = 12V POWER SUPPLY BLACK = GROUNDED TO THE TO THE XL-SEAT ACTUATOR CHASSIS XL-SEAT 2004-2012 CHEVROLET CANYON/COLORADO EXTENDED CAB DRIVER...
- Page 13 WARNING DECALS After completing the installation of the XL-SEAT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface. Start by locating a position to install the decals. ...
- Page 14 Burnt out switch. Replace pendant. Bad connection. Check the electronic module under the seat. Make sure that all the wires are properly connected. Burnt out electronic module. Contact Adapt Solutions for replacement module. Burnt out actuator. Replace actuator. Power Loss. The XL-SEAT motor is not getting adequate electrical power because of a loose connection.
- Page 15 Freight and other related repair charges will be the responsibility of the original purchaser. The only remedy for a defect in one of Adapt Solutions products shall be the repair or the replacement, at the discretion of Adapt Solutions, of the defective part or component. If repair or replacement is not commercially practical or cannot be timely made, Adapt Solutions may decide to refund the purchase price of the equipment (XL-SEAT) instead of repairing or replacing the original equipment.
