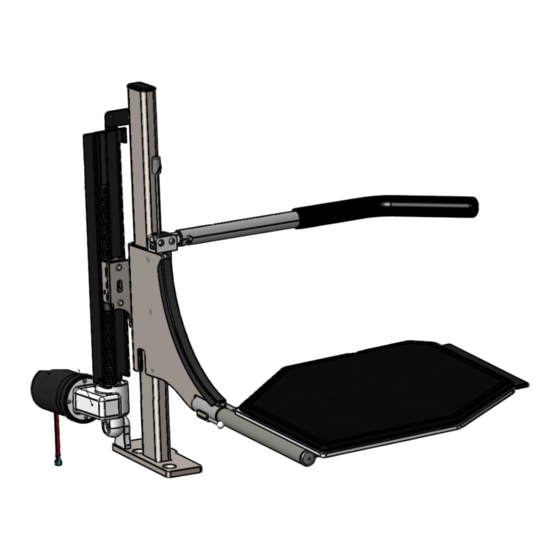

XL-SEAT
INSTALLATION MANUAL
XLS-F150S09L
FORD F150 SUPER CAB 2009-2014
DRIVER

Advertisement

loading
Need help?

Need help?

Do you have a question about the XL-SEAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADAPT SOLUTIONS XL-SEAT

Summary of Contents for ADAPT SOLUTIONS XL-SEAT

  • Page 1 XL-SEAT INSTALLATION MANUAL XLS-F150S09L FORD F150 SUPER CAB 2009-2014 DRIVER...
  • Page 2 COVB-01 Motor cover XLS700-AL Electrical Kit XLS-F150S09LB-05 Replacement Molding -Left- Black XLS-F150S09L-00 Installation Kit -Left- SCALE 1:6 PART NUMBER XLS-F150S09L DESCRIPTION Kit XL-Seat Ford F-150 Super Cab 2009 - 2014 -Left- 1 of 7 SCALE 1:6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 3 Black Ribbed Insert Cap for Rect. Tubing 1" × 1-1/2" 14-20 CP RC-1015-1 XLS810-01 Ring Shock Motor PART NUMBER XLS-F150S09L DESCRIPTION Kit XL-Seat Ford F-150 Super Cab 2009 - 2014 -Left- SCALE 1:6 2 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 4 Spring Pin Ø1/4'' x 1-3/8'' Lg. PRD 332-159P Socket Head Cap Screw Zinc Plated 3/8-16 x 1/2 SCALE 1:5 SCALE 1:4 PART NUMBER XLS-F150S09L DESCRIPTION Kit XL-Seat Ford F-150 Super Cab 2009 - 2014 -Left- 3 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 5 XLS500-07L 07 Pillar XL-SEAT PRD 338-230P Flat Socket Cap Screw Zinc Plated 7/16-14 x 3/4 SCALE 1:4 SCALE 1:3 PART NUMBER XLS-F150S09L DESCRIPTION Kit XL-Seat Ford F-150 Super Cab 2009 - 2014 -Left- 4 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 6 Hex Cap Bolt Zinc Plated M12-1.75 x 50mm G8.8 CP RC-1015-1 Black Ribbed Insert Cap for Rect. Tubing 1" × 1-1/2" 14-20 ga SCALE 1:4 PART NUMBER XLS-F150S09L DESCRIPTION Kit XL-Seat Ford F-150 Super Cab 2009 - 2014 -Left- 5 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 7 Ring Shock Motor PRD 339-168P Socket Shoulder Screw Zinc 1/2 x 1 1/4 x 3/8-16 THD SCALE 1:4 SCALE 1:3 PART NUMBER XLS-F150S09L DESCRIPTION Kit XL-Seat Ford F-150 Super Cab 2009 - 2014 -Left- 6 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 8 Hex self-tapping screw #10 x 3/4'' Lg. PRD 339-139P Socket Shoulder Screw Zinc 3/8 x 3/4 x 5/16-18 THD SCALE 1:6 PART NUMBER XLS-F150S09L DESCRIPTION Kit XL-Seat Ford F-150 Super Cab 2009 - 2014 -Left- 7 of 7 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
  • Page 9 Re-install the OEM lumbar crank handle. Install the replacement recline handle. NOTE: You will need to bend down the seat materiel bracket as shown in the pictures. XL-SEAT 2009-2014 FORD F150 SUPER CAB DRIVER p. 2...
  • Page 10 Attach the adaptor XLS-F150S09L-02 to the floor adaptor using two (2) 1/2-13 UNC × 1 1/2”Lg bolts. NOTE: Do not forget to insert the adaptor XLS-F150S09L-02D in the end of the tubing. This will prevent the tubing from crushing when you tighten the bolts. XL-SEAT 2009-2014 FORD F150 SUPER CAB DRIVER p. 3...
  • Page 11 8- Place the XL-SEAT pillar onto the floor adaptor. Secure the XL-SEAT pillar in place using three (3) 7/16-14 UNC × 3/4”Lg flat head bolts. 9- Slide the XL-SEAT onto the pillar and secure the motor to the pillar base using a 1/2” × 2 3/4”Lg shoulder bolt.
  • Page 12 10- Install the electrical wiring for the XL-SEAT. Follow the instructions found in the attached document entitled: ELECTRICAL INSTALLATION FOR XL-SEAT 11- Attach the security arm to the XL-SEAT using a 3/8” × 3/4”Lg shoulder bolt. Slide the transfer board in place. Install the carpet covered safety covers. Use a self-tapping screw #10 ×...
  • Page 13  Make sure that XL-SEAT works well with and without a passenger.  Make sure the door closes properly. (Note: It is normal for the XL-SEAT to touch the door panel trim.)  Make sure the safety guards are fastened in place.
  • Page 14 “Velcro”. WARNING: Place the hand held control in a safe place so that the door does not risk cutting off the wire. XL-SEAT 2009-2014 FORD F150 SUPER CAB DRIVER p. 7...
  • Page 15 RED = 12V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS GREY WIRE TO THE PENDANT TWO YELLOW WIRES RED = 12V POWER SUPPLY TO THE XL-SEAT BLACK = GROUNDED TO THE ACTUATOR CHASSIS XL-SEAT 2009-2014 FORD F150 SUPER CAB DRIVER p. 8...

  • Page 16: Warning Decals

    WARNING DECALS After completing the installation of the XL-SEAT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface.  Start by locating a position to install the decals.

  • Page 17: Troubleshooting

    Make sure that all the wires are properly connected. Burnt out electronic module. Contact Adapt Solutions for replacement module. Burnt out actuator. Replace actuator. Power Loss. The XL-SEAT motor is not getting adequate electrical power because of a loose connection. Check the XL-SEAT connections for tightness and corrosion (especially the ground connection).

  • Page 18: Year Limited Warranty

    The only remedy for a defect in one of Adapt Solutions products shall be the repair or the replacement, at the discretion of Adapt Solutions, of the defective part or component. If repair or replacement is not commercially practical or cannot be timely made, Adapt Solutions may decide to refund the purchase price of the equipment (XL-SEAT) instead of repairing or replacing the original equipment.

This manual is also suitable for:

Xls-f150s09l
