- Page 1 ASENTO INSTALLATION MANUAL EV-ACA17R GMC ACADIA 2017 & UP PASSENGER SIDE...
- Page 2 Safety Arm -Right- EV400-01R Transfert Platform -Right- XLS430B-01R Transfer Plate Cushion -Right- Black EV600B-01 Pillar Trim -Black- EV700-AL Electrical Kit EV-ACA17R-00 Installation Kit -Right- EV122-01 Spring Rod PART NUMBER EV-ACA17R DESCRIPTION ASENTO GMC ACADIA 2017 & UP -Right- |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
-
Page 3: Manual Seat
Transfer Plate Cushion -Right- Black EV600B-01 Pillar Trim -Black- EV700-AL Electrical Kit EV-TER18R-03 Seat Back Reclining Arm -Right- EV-UNI-100 Safety Belt Rubber Band EV-ACA17R-00 Installation Kit -Right- PART NUMBER EV-ACA17R DESCRIPTION ASENTO GMC ACADIA 2017 & UP -Right- |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS... - Page 4 Flat Head Socket Cap Screw Zinc Plated 1/4-20 x 1 PRD 192-153 Spring Tension Pin 1/4 x 1 EV122-01 Spring Rod ,250 PART NUMBER EV-ACA17R DESCRIPTION ASENTO GMC ACADIA 2017 & UP -Right- 3 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 Hex Cap Bolt Zinc Plated 3/8-16 x 1 1/4 G5 PRD 341-107P Flat Washer Zinc Plated I.D. 5/16 USS EV-ACA17R-01 Floor Adapter - Right - EV122-01 Spring Rod PART NUMBER EV-ACA17R DESCRIPTION ASENTO GMC ACADIA 2017 & UP -Right- 4 of 6 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 6 Flat Washer Zinc Plated I.D. 5/16 USS PRD BTT66 Button Head Stainless 3/16 x 9/16 EV-ACA17R-01 Floor Adapter - Right - EV-ACA17R-02 Pilar Adapter -Right- EV122-01 Spring Rod PART NUMBER EV-ACA17R DESCRIPTION 5 of 6 ASENTO GMC ACADIA 2017 & UP -Right- |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 7 Transfert Platform -Right- XLS430B-01R Transfer Plate Cushion -Right- Black EV600B-01 Pillar Trim -Black- EV-ACA17R-01 Floor Adapter - Right - EV122-01 Spring Rod PART NUMBER EV-ACA17R DESCRIPTION 6 OF 6 ASENTO GMC ACADIA 2017 & UP -Right- |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 8 1. Slack the front seat bolts. Remove the top and bottom rear seat bolts on both sides. Remove the lower brackets and plastic trims from the seat rail. Keep the OEM bolts for reinstallation of the ASENTO floor adapter. 2. Cut a notch in the carpet at the right hand seat mount to facilitate the installation of the floor bracket.
- Page 9 3. Install the ASENTO floor adapter # EV-ACA17R-01 using the OEM bolts. 4. Remove the lower b pillar trim.
- Page 10 5. Remove the upper b pillar trim. 6. Install the b pillar adapter # EV-ACA17R-02 to the b pillar using the eight provided pop rivets. (NOTE: drill slowly high strength steel)Then install the pointed allen screw into the b pillar adapter.
- Page 11 7. A ¾ inch hole will have to be drilled in both the top and bottom b pillar trims to be able to bolt the ASENTO to the b pillar bracket. The plastic stopper on the upper b pillar trim will have to be removed.

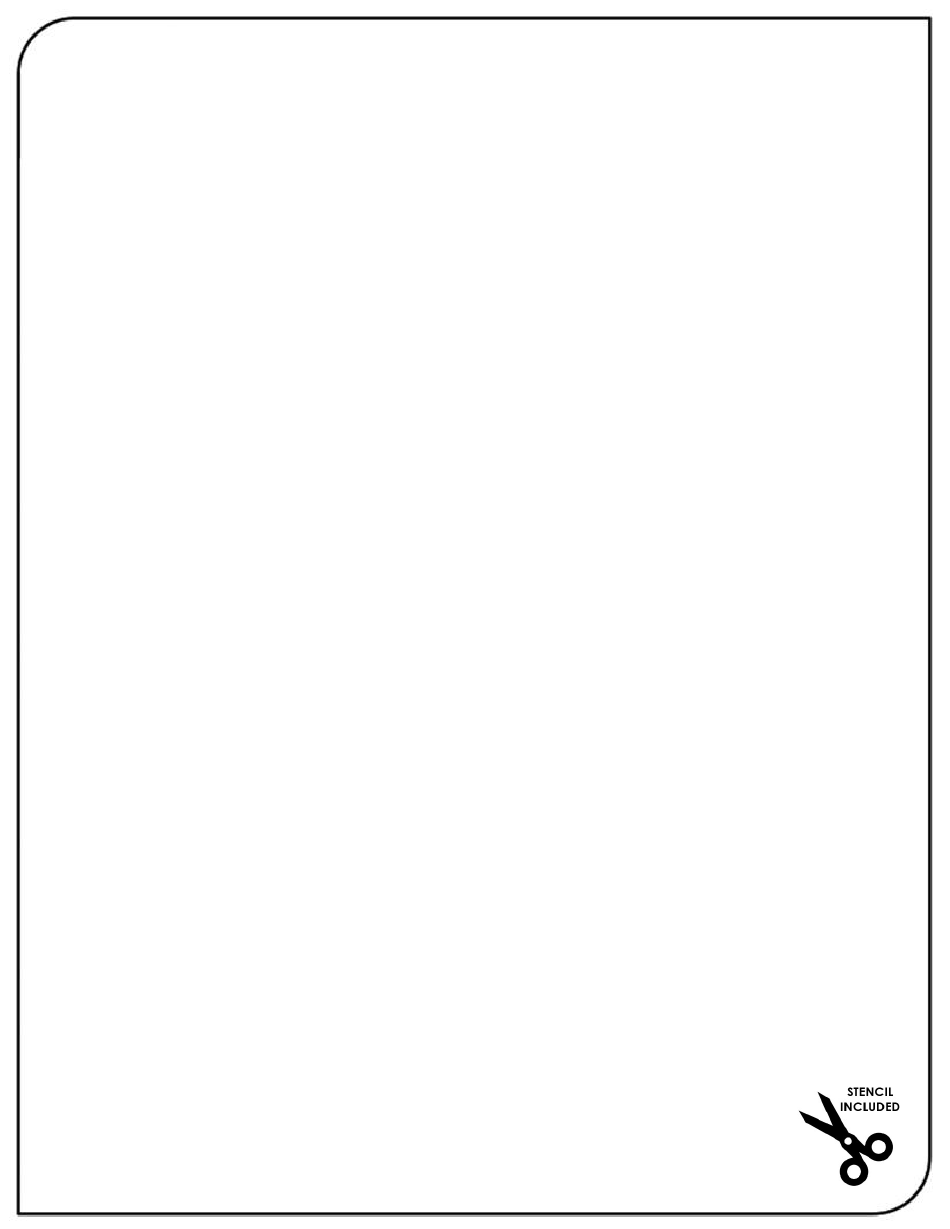

- Page 12 10. The lower b pillar trim will have to be modified to allow clearance for the ASENTO. Use the provided stencil to cut out the hole. Now install the lower trim and mark the hole to be drilled, reinstall the rims and remove the pointed allen screw.
- Page 13 11. On vehicles with a manual seat the recline lever will have to be replaced with the one provided # EV- TER18R-03 and the seat belt retention elastic installed to hold the seat belt in place.
- Page 14 12. Install the ASENTO to the floor adapter and b pillar adapter. Use the 3/8-16x1’’ bolt and flat washer at the floor adapter and the 3/8-16x1’’1/4 bolt and flat washer at the b pillar.
- Page 15 13. Connect the ASENTO control box to the ASENTO. Connect the control box to the pendant and to the 12 volt power supply. Then attach the control box under the seat in a place where it cannot be damaged by the seat moving. Place the hand pendant in a place convenient to the client. NOTE: Once the 12 volt power is connected the ASENTO will beep to signify that it is ready to be programed.
- Page 16 15. Install the transfer board by sliding it onto the chrome shaft of the ASENTO. Make sure that it slides all the way onto the shaft. Final Inspection Make sure all bolts are all properly fastened. Make sure that ASENTO works well with and without a passenger. ...
- Page 17 ELECTRICAL INSTALLATION FOR ASENTO 1. Thread the lead power cable (red +) under the doorstep moulding and through the firewall. WARNING: Pass through a grommet in the firewall to prevent the cable from chaffing. 2. Install the circuit breaker near the battery and then connect the battery to the circuit breaker.
- Page 18 ELECTRICAL BOX CONNECTIONS ASENTO...
- Page 19 ASENTO WITH SPEEDY LIFT...
-
Page 20: Warning Decals
WARNING DECALS After completing the installation of the ASENTO, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface. Start by locating a position to install the decals. ... - Page 21 During the first year of the warranty, Adapt Solutions will supply the replacement parts as well as a pre-set monetary amount (determined by Adapt Solutions) for the repair if a defect in materiel or workmanship is discovered. After the initial year of this warranty, only parts and components are covered.
