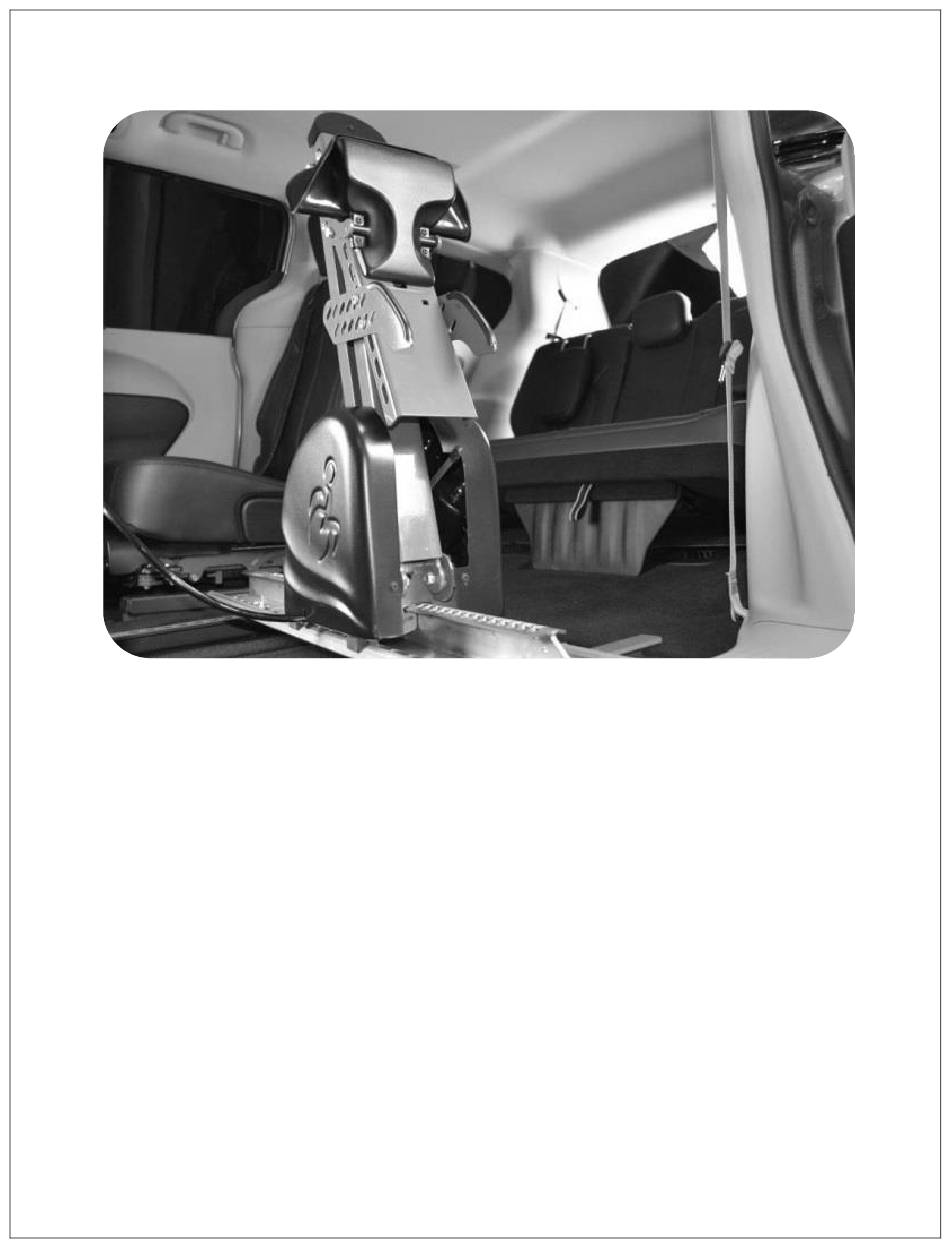

- Page 1 SPEEDY-LIFT INSTALLATION MANUAL SP-HDA18 HONDA ODYSSEY 2018 & UP...
- Page 2 Hook Assembly -Black- SP740 Wheelchair support SL800 Electrical Kit -Alone- SP-HDA18-00 SPEEDY-LIFT Kit Honda Odyssey 2018 & Up PRD 110-104 Round washer head tapping screw #8 x 1/2 PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2...
- Page 3 ITEM PART NUMBER DESCRIPTION SPEEDY-LIFT HONDA ODYSSEY 2018+ SP000-01 Mechanism Assembvly SP-HDA18-01 Floor Adapter SP-HDA18-02 Floor Adapter SP-HDA18-03 Floor Adapter Fixing SP-HDA18-04 Floor Adapter Fixing SP600B Housing Cover Assembly -Black- SL-UNI-07 Nut for SPEEDY-LIFT rail SL-UNI-08 Rail Spacer SL-UNI-09 Rail Spacer Washer...
- Page 4 SPEEDY-LIFT HONDA ODYSSEY 2018+ SP700B Hook Assembly -Black- PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 SCALE 1:6 SCALE 1:5 PART NUMBER SP-HDA18 DESCRIPTION SPEEDY-LIFT Honda Odyssey 2018 & Up 3 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 PRD 2946 Flange Locknut Zinc Plated 5/16-18 SCALE 1:6 SCALE 1:4 SCALE 1:4 PART NUMBER SP-HDA18 DESCRIPTION SPEEDY-LIFT Honda Odyssey 2018 & Up 4 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 6 1. Remove the driver side second row seat. Slide the seat platform completely towards the door and then move back one adjustement. 2. Install the adaptor locking bracket # SP-HDA18-03 to the SPEEDY-LIFT floor adaptor # SP- HDA18-01 using the provided 5/16-18x1’’ bolt, flat washers and lock nut. Install this adaptor on the outside.
- Page 7 3. Install the two floor adapters to the seat base mounting brackets. Lever down the locking bracket and then tighten the bolts. NOTE: To avoid rattling, use electrical tape around mounting points of the floor adapters.
- Page 8 5. Place the SPEEDY-LIFT in the vehicle on the floor adaptors using the plastic shims between the SPEEDY-LIFT and the floor adapters. Center the SPEEDY-LIFT in the door opening. Place the SPEEDY-LIFT as close as possible to the door. 6. The SPEEDY-LIFT up/down and in out motors can be disengaged manually to slide the SPEEDY- LIFT in and out and move the arm up and down.
- Page 9 7. Place the washer over the SPEEDY-LIFT track and use the 5/16” X 1 1/4” button head bolts to line up the washer plate, the SPEEDY-LIFT track and the black plastic shim. Secure the SPEEDY- LIFT to the floor adaptors using the threaded blocks SL-UNI-07. 8.
- Page 10 10. The stop up and stop down height may be adjusted using the bolts in the slotted holes on the up down gear. NOTE: The stop up bolt is predajusted for maximum travel. STOP UP STOP DOWN 11. Press the ‘OUT’ button on the hand held pendant until the upper wheelchair support bracket is positioned 1/4”...
- Page 11 12. To properly position the lower support arms, back the wheelchair up over the upper wheelchair support bracket. Press and hold the ‘IN’ button until the wheelchair barely starts to lift off the ground. Then adjust the lower support arms to the wheelchair. Adjust the liftting angle of the wheelchair by sliding the lower supports forward or back.
- Page 12 13. Adjust the locking mechanism. Remove the wheelchair from the SPEEDY-LIFT. Press and hold the ‘IN’ button until the SPEEDY-LIFT is in its full up position. While holding the lock closed, pull the cable tight and secure the cable lock. Cut off the excess lenght of cable. Test slowly to see if the locking mechanism operates properly.
-
Page 13: Warning Decals
PLEASE HAVE THE SERIAL NUMBER OF THE UNIT ON HAND BEFORE PLACING YOUR CALL. WARNING DECALS After completing the installation of the SPEEDY LIFT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface. -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES Bad electrical connections. Check and clean corrosion from all connections including the car’s battery cable connections. Hand pendant wire problem. Check hand pendant wire to make sure it is properly plugged. Check the wire for any cuts. If so, replace the wire. - Page 15 ELECTRICAL INSTALLATION FOR SPEEDY-LIFT 1. Thread the lead power cable (red +) under the doorstep molding and through the firewall. WARNING: Pass through a grommet in the firewall to prevent the cable from chaffing. 2. Install the circuit breaker near the battery and then connect the battery to the circuit breaker.
- Page 16 ELECTRICAL BOX CONNECTIONS ASENTO SPEEDY LIFT with...
- Page 17 SPEEDY LIFT ALONE SPEEDY LIFT CORD RED = 12 V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS...
- Page 18 The only remedy for a defect in one of Adapt Solutions products shall be the repair or the replacement, at the discretion of Adapt Solutions, of the defective part or component. If repair or replacement is not commercially practical or cannot be timely made, Adapt Solutions may decide to refund the purchase price of the equipment (XL-BASE;...
