ADAPT SOLUTIONS XL-SEAT Installation Manual
Hide thumbs
Also See for XL-SEAT:
- Installation manual (18 pages) ,
- Installation manual (18 pages) ,
- Installation manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for ADAPT SOLUTIONS XL-SEAT
Summary of Contents for ADAPT SOLUTIONS XL-SEAT
- Page 1 XL-SEAT INSTALLATION MANUAL XLS-F150C09R FORD F150 SUPER CREW CAB 2009-2014 PASSENGER...
- Page 2 ITEM PART NUMBER DESCRIPTION KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 XLS100-06R Slider no. XLS100-06R XLS200-01 Actuator Fixing PRD 332-159P Socket Head Cap Screw Zinc Plated 3/8-16 x 1/2 XLS300-03 XL-SEAT Safety Right Arm XLS400-01R XL-SEAT Transfert Board -Right-...
- Page 3 ITEM PART NUMBER DESCRIPTION KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 XLS100-06R Slider no. XLS100-06R XLS200-01 Actuator Fixing PRD 332-159P Socket Head Cap Screw Zinc Plated 3/8-16 x 1/2 XLS300-03 XL-SEAT Safety Right Arm XLS400-01R XL-SEAT Transfert Board -Right-...
- Page 4 ITEM PART NUMBER DESCRIPTION KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 XLS100-06R Slider no. XLS100-06R XLS200-01 Actuator Fixing Electrical Actuator 12 Volts -11.000'' Stroke - Type "B" Knob XLS800-134 with Ø3/8'' Hole - Left Handed XLS811-01 Shock Ring...
- Page 5 KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 ITEM PART NUMBER DESCRIPTION XLS-F150C09R-01 Floor Adapter -Right- XLS-F150C09-02 Seat Spacer PRD 302-178P Hex Cap Bolt Zinc Plated 3/8-16 x 1 1/2 G5 PRD 333-108 Nylon Insert Locknut 3/8-16 PRD 341-107P Flat Washer Zinc Plated I.D.
- Page 6 ITEM PART NUMBER DESCRIPTION KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 XLS500-02 XL-SEAT Pillar 02 PRD 302-172P Hex Cap Bolt Zinc Plated 3/8-16 x 3/4 G5 PRD 341-147P Flat Washer Zinc Plated I.D. 13/32 SAE for 3/8...
- Page 7 ITEM PART NUMBER DESCRIPTION KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 XLS-F150C09R-01 Floor Adapter -Right- XLS500-02 XL-SEAT Pillar 02 Electrical Actuator 12 Volts -11.000'' Stroke - Type "B" Knob with XLS800-134 Ø3/8'' Hole - Left Handed COVB-01...
- Page 8 ITEM PART NUMBER DESCRIPTION KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 XLS-F150C09-03 "B" Pillar Adapter XLS-F150C09R-04 "B" Pillar Adapter -Right- PRD 125-117 Hex self-tapping screw #10 x 3/4'' Lg. PRD 302-138P Hex Cap Bolt Zinc Plated 5/16-18 x 3/4 G5...
- Page 9 ITEM PART NUMBER DESCRIPTION KIT XL-SEAT FORD F-150 SUPER CREW CAB 2009 - 2014 XLS300-03 XL-SEAT Safety Right Arm XLS400-01R XL-SEAT Transfert Board -Right- XLS430B-01R Transfer Plate Cushion -Right- Black XLS600B-01 Long Model Cover Molding PRD 125-117 Hex self-tapping screw #10 x 3/4'' Lg.
- Page 10 2- Remove the doorsill shrouds in both the front door and the rear door. Remove the “B” pillar shroud. 3- Unbolt the 2 rear seat bolts. XL-SEAT 2009-2014 FORD F150 SUPER CREW CAB PASSENGER p. 2...
- Page 11 5- Lift the back of the seat and slide the shim # XLS-F150C09-02 under the left rear seat bracket. Slide the XL-SEAT floor adaptor # XLS-F150C09R-01 under the right rear seat bracket. Use the OEM seat bolts to secure both adaptors in place. Secure the front of the adaptor using a 3/8”...
- Page 12 7- Attach the “B” pillar adaptor XLS-F150C09-03 to the “B” pillar. Position the adaptor as shown in the picture below and use 6 self-tapping screws to secure the adaptor in place. XL-SEAT 2009-2014 FORD F150 SUPER CREW CAB PASSENGER p. 4...
- Page 13 You may need to trim the lower edge of the shroud so that it fits around the XL- SEAT floor adaptor.) 9- Install the XL-SEAT onto the floor adaptor. Use a 3/8” X 3/4” bolt to secure the pillar to the floor adaptor. Secure the top of the pillar to the adaptor # XLS-F150C09R-04 using two (2) 5/16”...
- Page 14 10- Secure the motor to the floor adaptor using a 1/2” X 1 1/4” shoulder bolt. 11- Install the security arm using a 3/8” X 3/4” shoulder bolt. 12- Install the electrical wiring for the XL-SEAT. Follow the instructions found in the attached document entitled: ELECTRICAL INSTALLATION FOR XL-SEAT 13- Re-install the doorsill trims.
- Page 15 Make sure that XL-SEAT works well with and without a passenger. Make sure the door closes properly. (Note: It is normal for the XL-SEAT to touch the door panel trim.) Make sure the safety guards are fastened in place.
- Page 16 “Velcro”. WARNING: Place the hand held control in a safe place so that the door does not risk cutting off the wire. XL-SEAT 2009-2014 FORD F150 SUPER CREW CAB PASSENGER p. 8...
- Page 17 RED = 12V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS GREY WIRE TO THE PENDANT TWO YELLOW WIRES RED = 12V POWER SUPPLY TO THE XL-SEAT BLACK = GROUNDED TO THE ACTUATOR CHASSIS XL-SEAT 2009-2014 FORD F150 SUPER CREW CAB PASSENGER p. 9...
-
Page 18: Warning Decals
WARNING DECALS After completing the installation of the XL-SEAT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface. Start by locating a position to install the decals. -
Page 19: Troubleshooting
Make sure that all the wires are properly connected. Burnt out electronic module. Contact Adapt Solutions for replacement module. Burnt out actuator. Replace actuator. Power Loss. The XL-SEAT motor is not getting adequate electrical power because of a loose connection. Check the XL-SEAT connections for tightness and corrosion (especially the ground connection). -
Page 20: Year Limited Warranty
The only remedy for a defect in one of Adapt Solutions products shall be the repair or the replacement, at the discretion of Adapt Solutions, of the defective part or component. If repair or replacement is not commercially practical or cannot be timely made, Adapt Solutions may decide to refund the purchase price of the equipment (XL-SEAT) instead of repairing or replacing the original equipment.
Need help?
Do you have a question about the XL-SEAT and is the answer not in the manual?
Questions and answers
How to install/cut B Pilar and shroud replacement
To install and cut the B Pillar and shroud replacement for the ADAPT SOLUTIONS XL-SEAT:

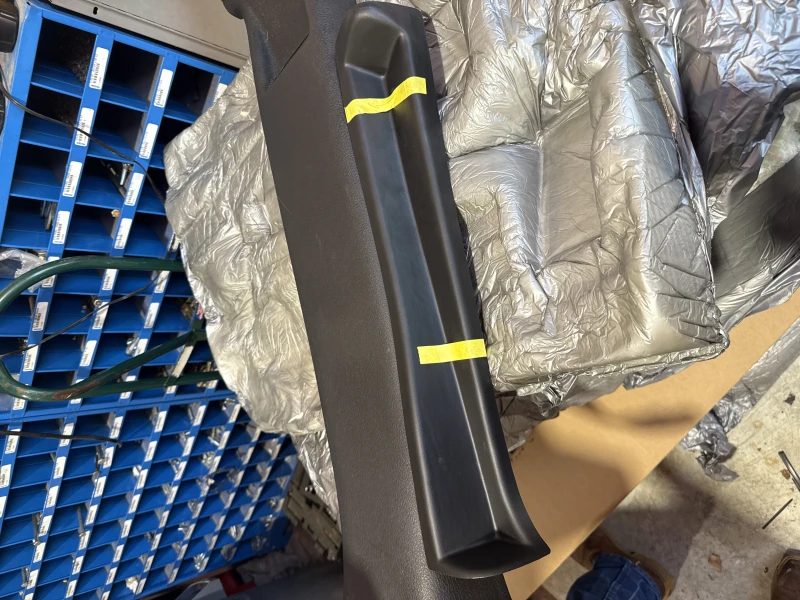

1. Cut the B Pillar Trim: Cut a portion of the “B” pillar trim to fit the replacement shroud. Be careful not to oversize the cuts.
2. Install Shroud Replacement: Install the plastic replacement shroud #XLS-F150C09R-06.
3. Secure the Shroud: Drill ¼” holes around the shroud’s perimeter and use Christmas tree panel clips to hold it in place.
4. Attach B Pillar Adapter: Position the “B” pillar adapter #XLS-F150C09-03 on the B pillar as shown in the manual and secure it with 6 self-tapping screws.
5. Insert Socket Set Screw: Insert a socket set screw into the B pillar to complete the installation.
