Atdec AWMS-DB-F Installation Manual page 3

Arm Base

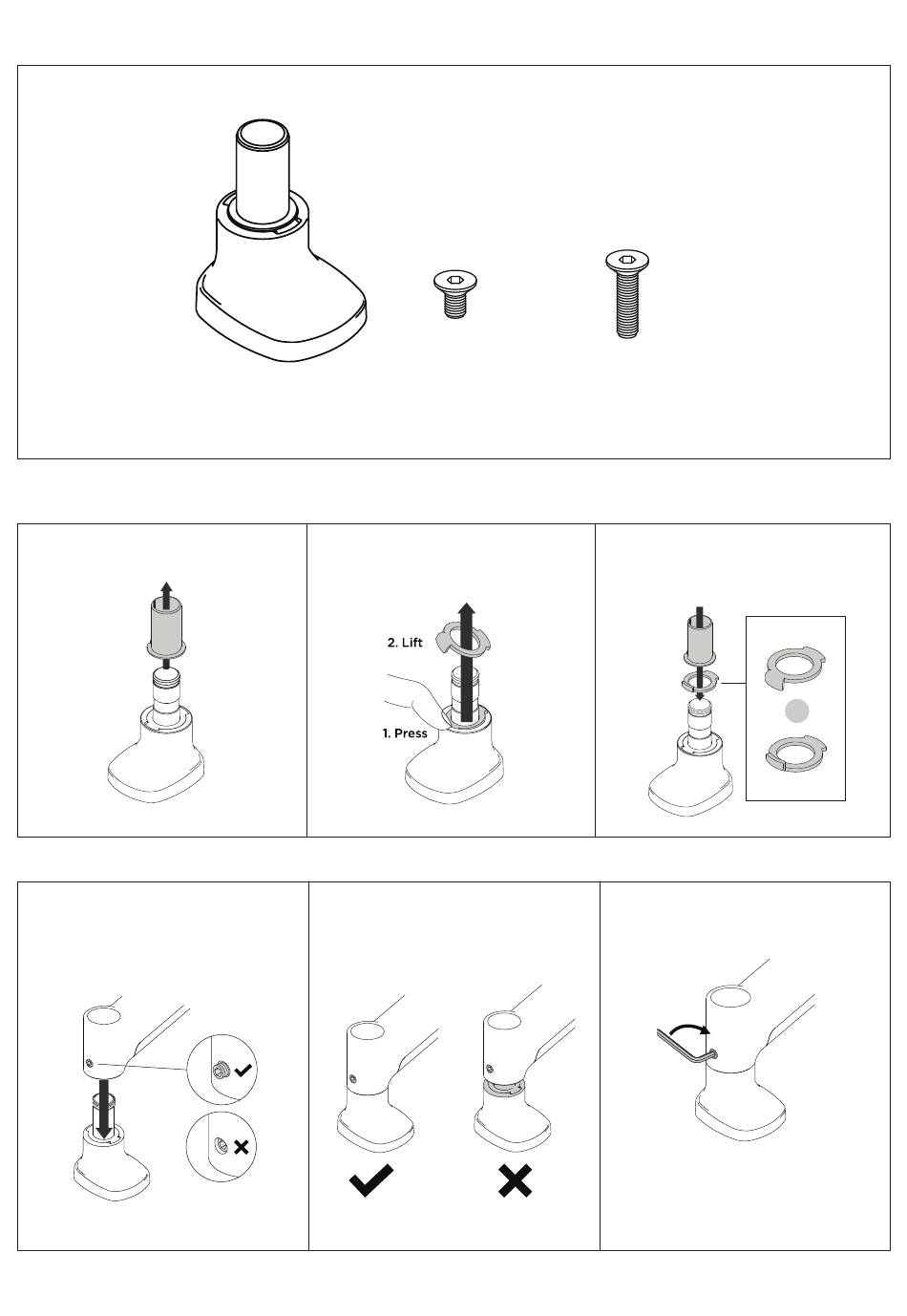

COMPONENT CHECKLIST
1. (Optional) Set arm rotation to 180°
Note rotation is set to 360° by default.
1.1 Remove plastic sleeve.
2. Fit arm onto Base
2.1 Push arm onto base, grub screw
must be backed off at this time.
NOTE: Ensure plastic sleeve is on
shaft before fitting arm.
NOTE: Arm packaged seperately
A
Base Screw
(x1) M8x16
1.2 To remove rotation ring press
down on front edge and lift.
2.2 Ensure arm is fully pushed
onto base.
B
Screw
M8x30
(x1)
1.3 Replace rotation ring in the
desired orientation and replace
plastic sleeve.
AWM-LB
C
(x1)
Default Position
Default Position
Default Position
360°
180°
Flipped Position Flipped Position
Flipped Position
2.3 Tighten set screw.
NOTE: Check the arm pan adjustment
is smooth after tightening.
AWMS-DB-F Page 3 of 6
360°
360°
OR
OR
OR
180° 180°
