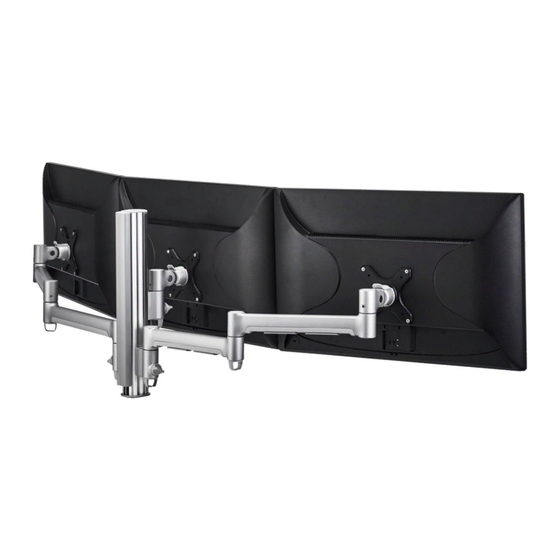

1 x 130 Arm and 2 x 710 Arm on 400 Post
with C-Clamp
COMPONENT CHECKLIST
A
AWM-A13
130 Arm
(x1)
CONTENTS
C-Clamp
Page 2
Page 3
400 Post
Page 6
Page 7
130 Arm
Page 8
Page 9
Page 10
Page 11
460 Arm
Page 12
Page 13
Page 14
Page 15
B
C
AWM-A71
AWM-P40
710 Arm
400 Post
(x2)
(x1)
AWM-FC
Component Checklist
Clamp Installation
AWM-P40
Component Checklist
Post Installation
AWM-130
Component Checklist
Arm Installation
Monitor Installation
Cable Management
AWM-460
Component Checklist
Arm Installation
Monitor Installation
Cable Management

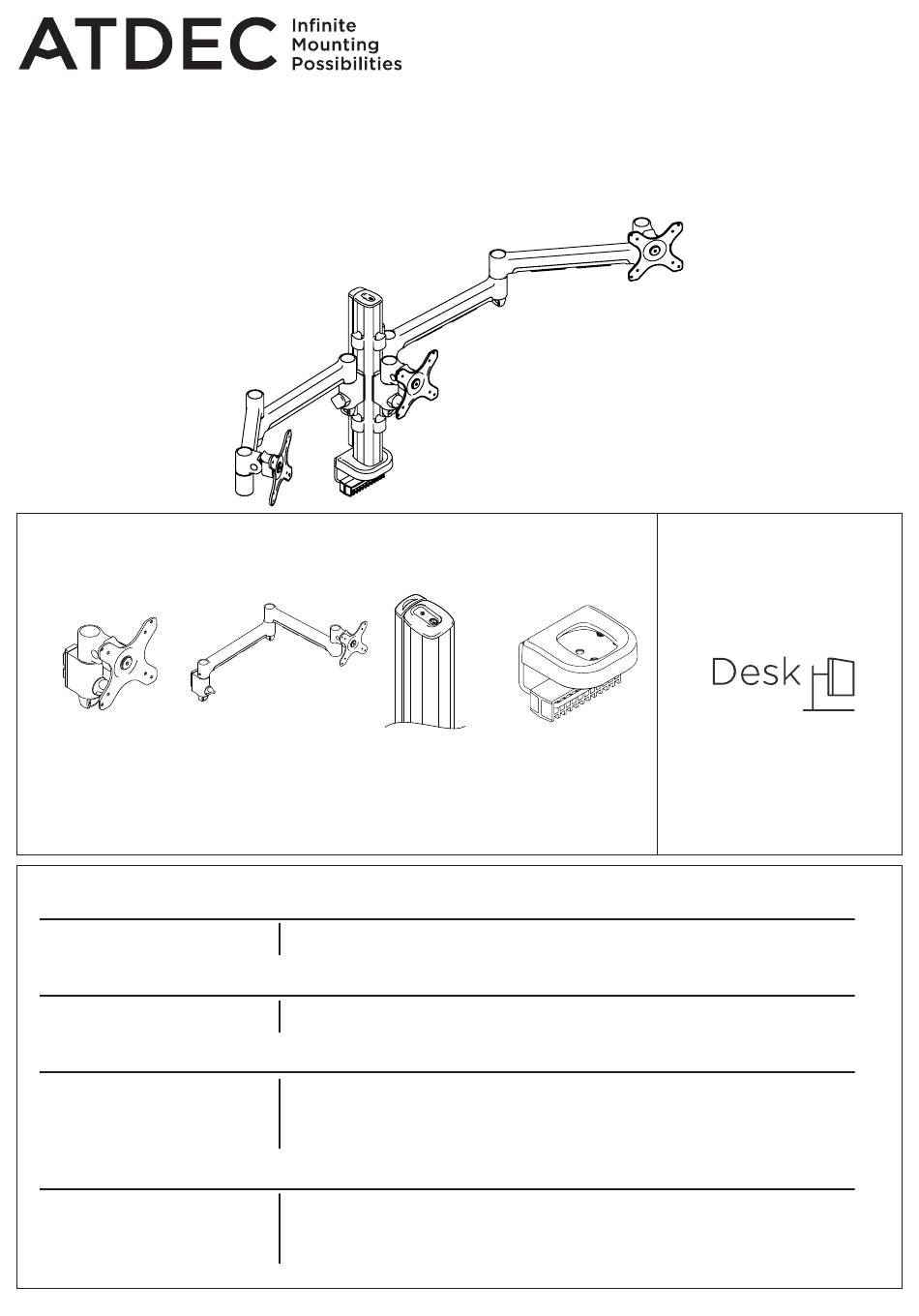

Installation Guide
AWMS-3-137140-C
RANGE
D
AWM-FC
C-Clamp
(x1)
AWMS-3-137140-C | Page 1 of 15
Advertisement
Related Manuals for Atdec AWMS-3-137140-C
Summary of Contents for Atdec AWMS-3-137140-C
- Page 1 Page 8 Component Checklist Page 9 Arm Installation Page 10 Monitor Installation Page 11 Cable Management 460 Arm AWM-460 Page 12 Component Checklist Page 13 Arm Installation Page 14 Monitor Installation Page 15 Cable Management AWMS-3-137140-C | Page 1 of 15...
- Page 2 (x1) IMPORTANT INFORMATION ! Please ensure this product is installed as per these installation instructions. ! This product is compatible with Atdec modular (AWM) products. ! The manufacturer accepts no responsibility for incorrect installation. AWMS-3-137140-C | Page 2 of 15...
- Page 3 3.5 Tighten the set screws firmly and evenly on both sides of the desk clamp bracket is positioned tight up against the mounting desk clamp bracket. surface edge M8 x 16mm Set Screw Desk Clamp Bracket Mounting surface AWMS-3-137140-C | Page 3 of 15 AWM-FC Page 2 of 4...
- Page 4 5.5 Tighten the set screws firmly and evenly on both sides of the desk clamp bracket is positioned tight up against the mounting desk clamp bracket surface edge M8 x 16mm Set Screw Desk Clamp Bracket Mounting surface AWMS-3-137140-C | Page 4 of 15 AWM-FC Page 3 of 4...
- Page 5 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20180502D...
- Page 6 IMPORTANT INFORMATION ! Please ensure this product is installed as per these installation instructions. ! This product is compatible with Atdec AWM Series products. ! The manufacturer accepts no responsibility for incorrect installation. AWMS-3-137140-C | Page 6 of 15...
- Page 7 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20180518E...
- Page 8 ! Please ensure this product is installed as per these installation instructions. ! The manufacturer accepts no responsibility for incorrect installation. ! This product is compatible with Atdec AWM Series products. AWMS-3-137140-C | Page 8 of 15 AWM-A13 Page 1 of 4...
- Page 9 3.2 Ensure arm is fully pushed onto shaft. 3.3 Tighten joint screw. to clamp Note: Check the Tip: Check the arm rotation is arm rotation i smooth after smooth after tightening. tightening. AWMS-3-137140-C | Page 9 of 15 AWM-A13 Page 2 of 4...
- Page 10 To install the optional security screw tilt the head upwards Note: Support monitor while adjusting Loosen Loosen Tighten Tighten AWMS-3-137140-C | Page 10 of 15 AWM-A13 Page 3 of 4...
- Page 11 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20180521C...
- Page 12 ! Please ensure this product is installed as per these installation instructions. ! The manufacturer accepts no responsibility for incorrect installation. ! This product is compatible with Atdec AWM Series products. AWMS-3-137140-C | Page 12 of 15 AWM-A46 Page 1 of 4...
- Page 13 3.2 Ensure arm is fully pushed onto shaft. 3.3 Tighten joint screw. nto clamp Note: Check the Tip: Check the arm rotation is arm rotation i smooth after smooth after tightening. tightening. AWMS-3-137140-C | Page 13 of 15 AWM-A46 Page 2 of 4...
- Page 14 To install the optional security screw tilt the head upwards Note: Support monitor while adjusting. Loosen Loosen Tighten Tighten AWMS-3-137140-C | Page 14 of 15 AWM-A46 Page 3 of 4...
- Page 15 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20180521C the express written consent of Atdec Pty Ltd.
