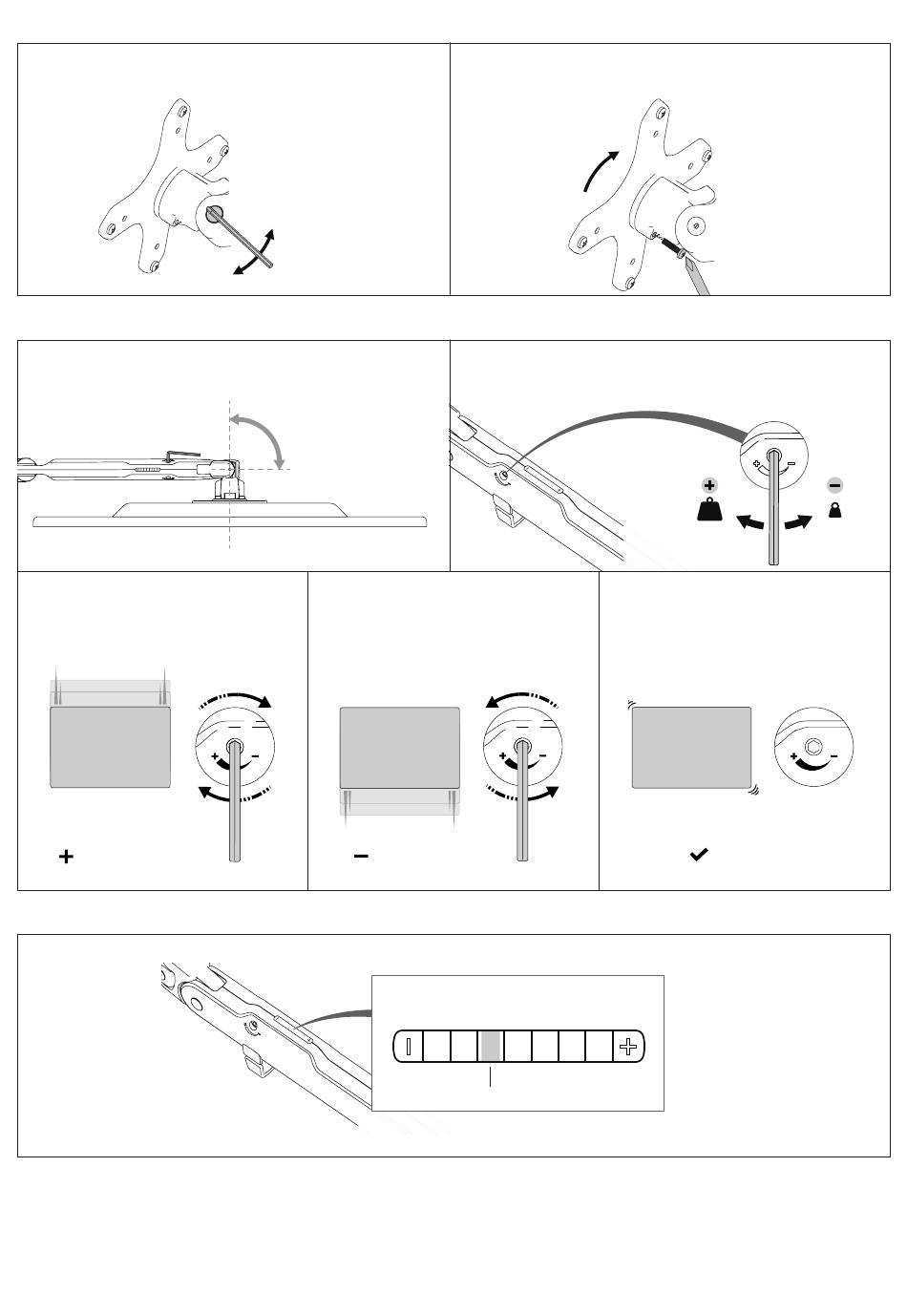

3. Adjust tilt tension & Install security screw
3.1. Use the provided Hex Key to adjust the tilt tension until
the monitor holds in a vertical position at the end of the arm.
4. Adjust arm tension
4.1 To accurately set the tension of the arm,
position the monitor at 90 degrees
4.3 If the monitor sags or falls down,
increase the arm tension by rotating
the screw clockwise.
Monitor Falls
(from top)
Increase Tension
5. Tension gauge
When installing
multiple monitors
of a similar
weight, use the
tension gauge to
make installation
faster.
NOTE: Support
monitor while adjusting
Loosen
Tighten
Tighten
90°
4.4 If the monitor springs upwards
from the bottom position, decrease
the arm tension by rotating the
screw anti-clockwise.
Monitor Springs
(from bottom)
3.2. (OPTIONAL) To install the optional security screw tilt the
head upwards.
Loosen
4.2 Use the allen key to adjust the arm tension to the weight
of the monitor. Follow steps 6.3 to 6.5 to set the tension.
Reduce Tension
Arm Tension Gauge
Marker
Heavier
Monitor
4.5 If the monitor floats or hovers
in all positions the arm tension
is balanced and does not require
further adjustment.
Monitor 'Floats'
(all positions)
Balanced
1.
Set up one monitor and
record the position of
the marker on
the gauge.
2.
When installing
subsequent monitors,
pre-tension the arm to
the recorded amount,
then fine-tune the
tension by following
steps 4.3 to 4.5.
AWMS-DB-F Page 5 of 6
Lighter
Monitor
