Atdec AWMS-DW Installation Manual

Dynamic arm wall mount

Advertisement

Quick Links

Dynamic Arm Wall Mount

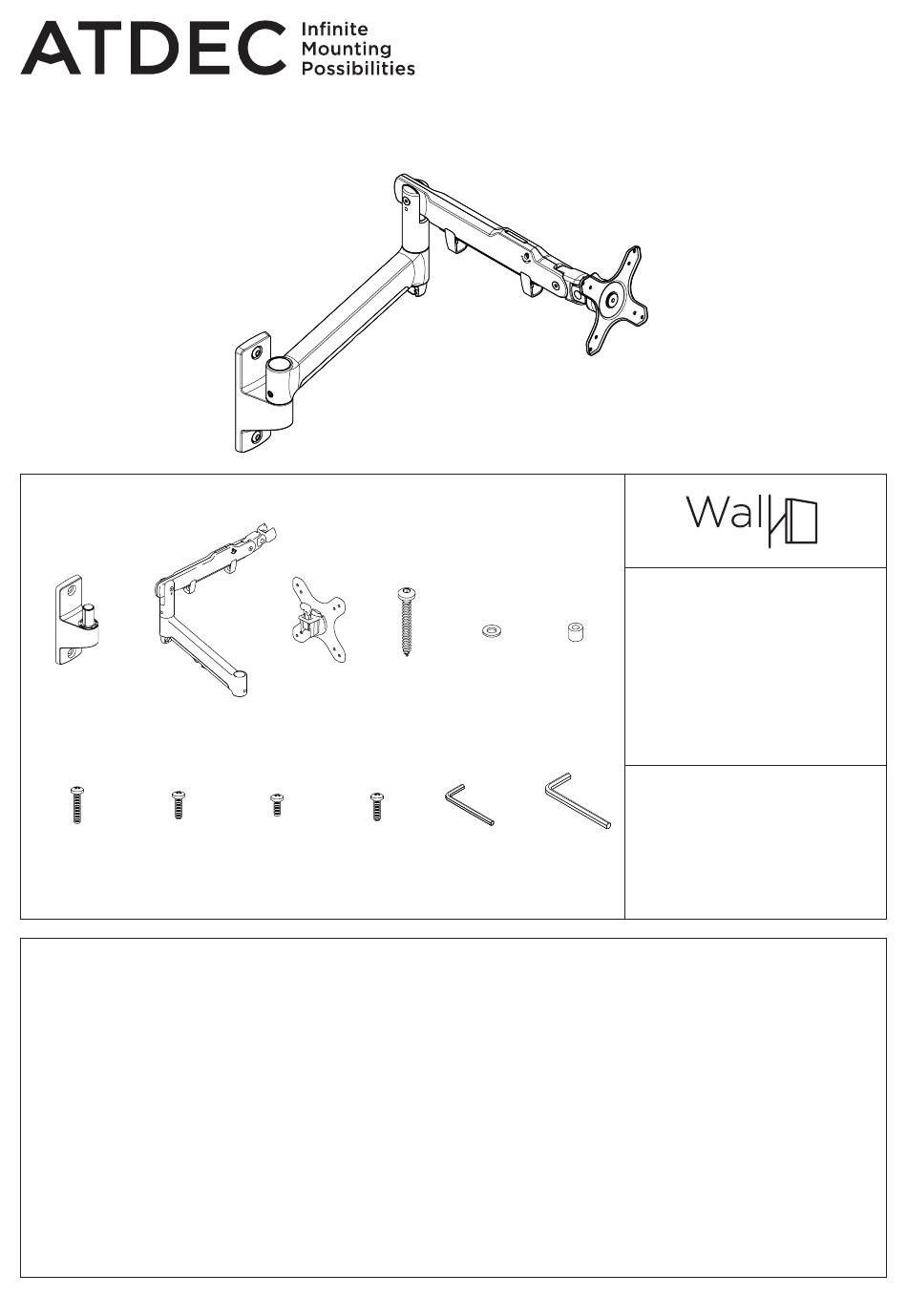

COMPONENT CHECKLIST
A
Single Wall
Dynamic
Bracket
Monitor Arm
(x1)
(x1)
G
H
Screw
Screw
M4x25mm
M4x16mm
(x4)
(x4)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove or throw away the plastic sleeve on wall bracket and arm links.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to install this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! This product should only be installed by professional installers of good mechanical aptitude, who have experience with
building construction, and fully understand these instructions and the consequences of incorrect installation.
! Supplied wall fasteners are for timber stud wall constructions only. For other wall constructions, such as masonry, alternative
suitable wall fasteners should be sourced by the installer.
! To safely achieve the full capacity of this product, wall fasteners must have a pull-out (tension) force rating of at least 100kg
(1000N) per fastener. This rating must include a safety factor.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it's safe to do so.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts),
and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor
weight may be within the stated range. Please contact Atdec if you would like further information.
B
C
VESA
Head
(x1)
I
Screw
Security
M4x12mm
Screw
(x4)
(x1)
D
E
Screw
Washer
M8x70mm
(x2)
(x2)
J
K
4mm
Hex Key
(x1)
Installation Guide
REQUIRED TOOLS
Phillips head screwdriver
Power drill
Suitable drill bit
Driver bit for selected
F
wall fasteners
Spacer
Stud finder
(x4)
Spirit level
WEIGHT RANGE
Flat Monitor
L
0 - 9kg (0 - 20lb)
6mm
Curved Monitor
Hex Key
0 - 6kg
(0 - 13.5lbs)
(x1)
AWMS-DW
AWMS-DW Page 1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the AWMS-DW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atdec AWMS-DW

  • Page 1 VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information. AWMS-DW Page 1 of 4...
  • Page 2 NOTE: Spacers may be required for curved, 100mm 12mm recessed or uneven monitor surfaces. 75mm 100mm 75mm Flush Spacer NOTE: For other sizes, use a suitable Too long Too short adaptor plate (sold separately). AWMS-DW Page 2 of 4...
  • Page 3 Monitor Falls Monitor ‘Floats’ Monitor Springs (from top) (all positions) (from bottom) Increase Tension Reduce Tension Balanced AWMS-DW Page 3 of 4...
  • Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20230503...
