Weight Range - Atdec AWMS-DB-F Installation Manual

Dynamic Arm

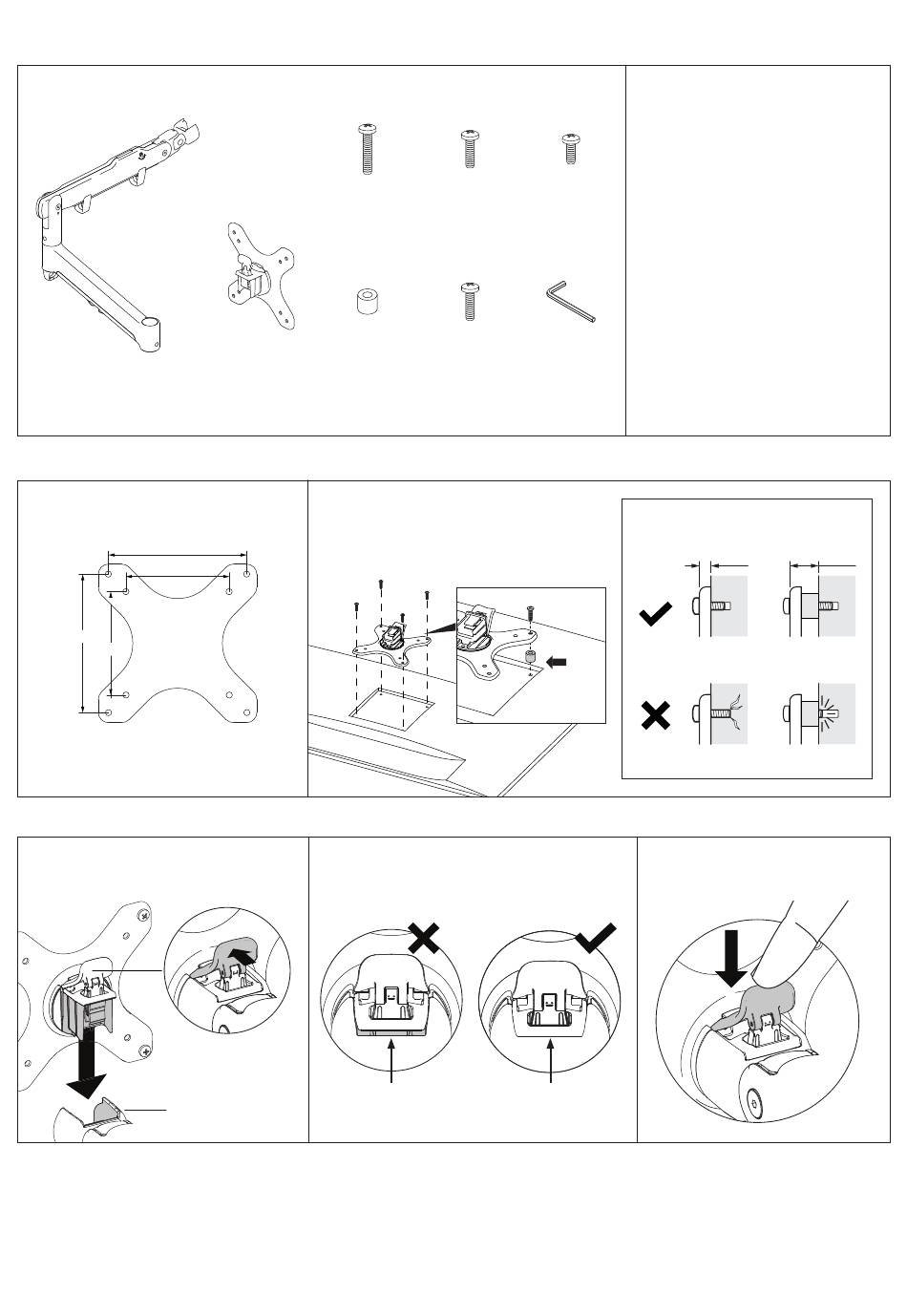

COMPONENT CHECKLIST
A
Dynamic
Monitor Arm
(x1)
1. Attach VESA head to monitor
1.1 Check VESA mounting
compatibility.
100mm
75mm
100mm
75mm
NOTE: For other sizes, use a suitable
adaptor plate (sold separately).
2. Mount monitor
2.1. Insert VESA head into the
monitor arm.
Monitor arm
C
Screw
M4x25mm
(x4)
B F
VESA Spacer
Head (x4)
(x1)
1.2 Attach VESA head onto monitor with
provided screws.
NOTE: Spacers may be required for curved,
recessed or uneven monitor surfaces.
2.2. Ensure that the VESA head sits
flush within the monitor arm. There
should be no gap.
Gap
D E
Screw Screw
M4x16mm M4x12mm
(x4) (x4)
G H
Security 4mm
Screw Hex Key
(x1) (x1)
No gap
AWM-AD

WEIGHT RANGE

Flat Monitors
0 - 9kg
(0 - 20lbs)
Curved Monitors
0 - 6kg
(0 - 13.5lbs)
Monitor weight should be within the
weight range of all modular elements
that make up the complete monitor
mounting solution.
NOTE: Be sure to use a screw
length that suits the monitor.
5mm
Flush Spacer
Too long Too short
2.3. Push the lever down to
secure it to the arm assembly.
AWMS-DB-F Page 4 of 6
12mm
