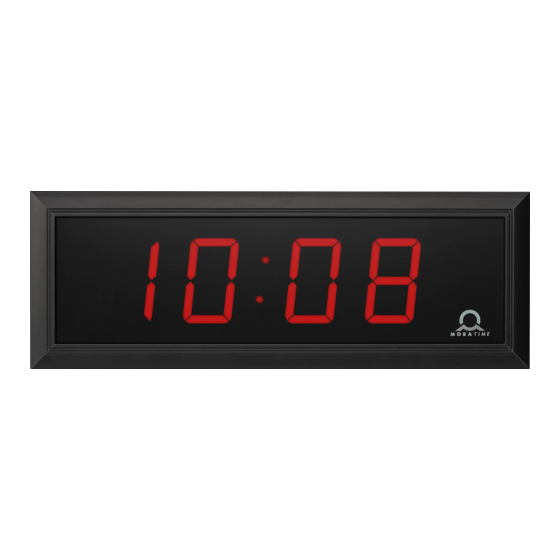

State-of-the-art technology digital clock
Hide thumbs Also See for DC Series:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
DC series
State-of-the-art technology digital clock
© MOBATIME
BE-800693.19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mobatime DC Series

Summary of Contents for Mobatime DC Series

  • Page 1 INSTRUCTION MANUAL DC series State-of-the-art technology digital clock © MOBATIME BE-800693.19...
  • Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    Control of the stopwatch via keyboard ..................... 34 The stopwatch menu ..........................34 Setting of the initial time for counting down ................... 34 Control of the stopwatch using IR remote control ................... 35 The stopwatch menu ..........................35 © MOBATIME 3 / 60 800693.19...
  • Page 4 10.3.1 Synchronization only – P5 mode 2 and 4 ..................42 10.3.2 10.4 Slave clock controlled by MOBATIME serial code, MOBALine, or IRIG-B ..........42 10.5 Slave clock controlled by IF482 over RS232 or RS485 ................. 42 10.6 Slave clock controlled by supervised RS485 ..................42 10.7...
  • Page 5 © MOBATIME 5 / 60 800693.19...

  • Page 6: Description

    • autonomous, quartz controlled time base with the possibility of synchronization using the following: DCF 77 radio signal, 24 V minute impulses, the MOBATIME serial code, MOBALine, RS232, RS485, IRIG-B or GPS • IPv4 and IPv6 support •...
  • Page 7 IR controller for clock set up and stopwatch control On request • internal relay – relay can switch for specified duration, when the stopwatch in the countdown mode reach the zero. • protection degree IP 54 © MOBATIME 7 / 60 800693.19...

  • Page 8: Assembly

    Insert Allen key into the opening on the bottom side of the clock. Turn the key softly in anticlockwise direction. The frame catch will snap in. • Replace the blind cap on the opening. • To loosen the frame catch, use the reverse procedure (turn clockwise). © MOBATIME 8 / 60 800693.19...

  • Page 9: Double-Sided Clock

    (after placing the parts the plate shall not be seen). • Remove the blind cap from the opening on the both lower sides of clock. © MOBATIME 9 / 60 800693.19...

  • Page 10: Assembly Of The Clock Into A Rack, Single-Sided Clock Dc.20.12

    Screw L-shaped strips back on the clock body. • Secure the clock in the panel by tightening of fastener screws in L-shaped strips. • Connect the interconnecting cables into the corresponding terminals. The clock mounting is thus completed. • © MOBATIME 10 / 60 800693.19...

  • Page 11: Dismantling Of The Clock Rear Cover

    Dismantling of the clock rear cover Unlock clock: turn the Allen key screw clockwise (to the right). Lock clock: turn the Allen key screw anti-clockwise (to the left). © MOBATIME 11 / 60 800693.19...

  • Page 12: Assembly Diagram

    Assembly diagram 2.6.1 DC.57-DC.250 © MOBATIME 12 / 60 800693.19...
  • Page 13 DC.250.4..N.N DC.250x.6..N.N © MOBATIME 13 / 60 800693.19...

  • Page 14: Assembly Of The Clock Dc.20.6

    2.6.2 Assembly of the clock DC.20.6…N.F into a panel with back side access 2.6.3 Assembly of the clock into a rack, single-sided clock DC.20.12… N.R © MOBATIME 14 / 60 800693.19...

  • Page 15: Connecting Terminal Block

    Connecting terminal block Notes: 1. Does not apply to rack and panel mounted variants. 2. For PoE version is Ethernet cable plugged directly into the connector on the control board (this version is without terminal block) © MOBATIME 15 / 60 800693.19...

  • Page 16: Control Pcb

    Control PCB © MOBATIME 16 / 60 800693.19...

  • Page 17: Function Of The Plug Connectors

    Function of the plug connectors  LINES, DC/DCF OUT – JP1 time signal inputs: The DCF/GPS receiver, polarized impulse line, MOBALine, MOBATIME serial code, IRIG-B, power supply output: DC OUT 11–19 V or passive DCF current loop output  TEMP – JP2 connection of the temperature sensor(s)...

  • Page 18: Connection Of The Cable Ends

    2.11 Connection of the cable ends Installation LINES / DC OUT wire connection TEMP wire connection – 1 or 2 thermometers CTRL wire connection RS-232 wire connection RS-485 wire connection RELAY connection © MOBATIME 18 / 60 800693.19...

  • Page 19: Control Of The Clock Using Keyboard Or Pushbuttons

    The options for the parameter setup are shown in the clock menu table (chapter 5). Function of the pushbuttons in the setup menu mode PB1S storage of the current item and move to another menu item © MOBATIME 19 / 60 800693.19...

  • Page 20: Submenu For User-Specific Setting Of Time Constants For Data Switchover

    Push the PB1S pushbutton and enter the constant for stopwatch display in seconds. Push the PB1S pushbutton. The display shows the following Enter the time constant to display temperature of second sensor in seconds. © MOBATIME 20 / 60 800693.19...

  • Page 21: Offset Setting For Time Synchronization

    Switch to the next parameter – SNMP communication support by pushing the PB1S. The display shows the Sn: 1. Set value 1 for enabling the SNMP support or value 0 for disabling it by pushing the PB2S. © MOBATIME 21 / 60 800693.19...

  • Page 22: Manual Setting Of The Ip Address Of The Clock

    3.2.7 Submenu for setting the multicast group address Choose the menu item P23 and then enter the submenu by pushing the PB1L pushbutton for setting the multicast group address. The item to be set is blinking. © MOBATIME 22 / 60 800693.19...

  • Page 23: Submenu For The Setting Of The Ntp Unicast Synchronization

    NTP unicast synchronization. The item to be set is blinking. By pushing the PB2S button, the adjusted digit value is increased in steps of 1; by pushing the PB2L button, the value will be continuously increased. © MOBATIME 23 / 60 800693.19...

  • Page 24: Submenu For Displaying Ipv6 Addresses

    001.2. – fourth part of the IPv6 address (011b) – fifth part of the IPv6 address f6.8e (100b) – sixth part of the IPv6 address 38.ff. (101b) – seventh IPv6 address fe.e.8 (110b) 4a.1.3. – eighth part of iPv6 address (111b) © MOBATIME 24 / 60 800693.19...

  • Page 25: Control Of The Clock Using Ir Remote Control

    Note: When the time zone of displayed time and date (menu item P7) is set to the values U1 – U7 or U, the entered time and date is taken as UTC. © MOBATIME 25 / 60 800693.19...

  • Page 26: Menu For The Setting Of The Clock Parameters

    In menu item P2 (time constants for automatic switching over of values) set value U, then enter the submenu by pushing the SET button. The item to be set is blinking. The display shows the following: © MOBATIME 26 / 60 800693.19...

  • Page 27: Offset Setting For Time Synchronization

    The setting unit is 1 / 100 second. Setting range -9.99 to +9.99. Push OK to save the setting and return to menu item P4. Push ESC to return to P4 without storage of the data © MOBATIME 27 / 60 800693.19...

  • Page 28: Submenu For Network Services Configuration

    1. Set value 1 for enabling the telnet support or value 0 for disabling it. By pushing OK, the entered values are stored and the clock returns to the menu item P19. By pushing ESC, the clock returns to P19 without saving. © MOBATIME 28 / 60 800693.19...

  • Page 29: Manual Setting Of The Ip Address Of The Clock

    A, b, C and d. By pushing OK, the entered values are stored and the clock returns to the menu item P23. By pushing ESC, the clock returns to P23 without saving. © MOBATIME 29 / 60 800693.19...

  • Page 30: Submenu For The Setting Of The Ntp Unicast Synchronization

    001.2. – fourth part of the IPv6 address (011b) – fifth part of the IPv6 address f6.8e (100b) – sixth part of the IPv6 address 38.ff. (101b) – seventh IPv6 address fe.e.8 (110b) 4a.1.3 – eighth part of iPv6 address (111b) © MOBATIME 30 / 60 800693.19...

  • Page 31: The Clock Menu Table

    IRIG-B or NTP autonomous operation without synchronization (check Line type synchronization by DCF signal jumper JP11 the MOBATIME serial code setting, see the MOBALine chapters 2.8 24 V DC impulses, at minute intervals and 10 for more 24 V DC impulses at half minute intervals...
  • Page 32 E even P 18 IP mode NTP, PoE: IPv4 / IPv6 dualstack WiFi: not supported NTP, PoE: IPv4 WiFi: IPv4 NTP, PoE: IPv6 WiFi: not supported Network operation multicast (without IP address), WiFi not supported © MOBATIME 32 / 60 800693.19...

  • Page 33: Ipv6 Adress Submenu

    First address received from DHCPv6 e.g. 2001:0db8:0000:0012:0000:0000:0000:1000 MANU Manually set address e.g. fec0:1234:0000:0000:f68e:38ff:fee8:4a13 PrEF Prefix of manually set address Range 0 – 128, default 64 GATE Default gateway obtained from SLAAC not yet e.g. 2001:0db8:0000:0012:0000:0000:0000:0001 supported © MOBATIME 33 / 60 800693.19...

  • Page 34: Control Of The Stopwatch Via Keyboard

    Data order 1/100 second <Minute>:<Second>.<Hundredths of second> 1 second <Hours>:<Minutes>:<seconds>. 1 minute <Hours>:<Minutes> 1 day <Days> By pushing the PB1L button, the entered values are stored and the clock returns to the “Stopwatch” display mode. © MOBATIME 34 / 60 800693.19...

  • Page 35: Control Of The Stopwatch Using Ir Remote Control

    © MOBATIME 35 / 60 800693.19...

  • Page 36: Setting Of Initial Time For Counting Down

    It is possible to control an external device such as sound devices. There is normally open contact (NO), normally closed contact (NC) and common contact (COM) on the relay port (JP21) available. © MOBATIME 36 / 60 800693.19...

  • Page 37: Stopwatch Menu Table

    Counter reset (to zero), or return to a preset (PB1L) time followed with counter stop Triggering the counter (PB3S) HOLD Stopping the counter (PB1S) Resetting the counter or return to a preset (PB1L) time, with counter stop © MOBATIME 37 / 60 800693.19...
  • Page 38 When counting is stopped, the dot is displayed after the last digit. 1 – 30, 0 (function disabled) Contact closing Time period of contact closing for stopwatches passing through zero, while operating in countdown mode, starting from a preset time moment. © MOBATIME 38 / 60 800693.19...

  • Page 39: Local Time Calculation

    Display time and date according to chosen time zone server time zone, incl. daylight saving time This setting is suitable for NTP and PoE digital clocks controlled by MOBATIME NTP servers which support the time zone server functionality. Calculation using time zone entries preconfigured by MOBA-NMS...

  • Page 40: Calculation According To Internal Time Zone Table

    See the chapter 15 with actual Time zone definition table. If you want to use the zone outside the internal time zone table, follow the "Custom Time Zone settings" appendix © MOBATIME 40 / 60 800693.19...

  • Page 41: Non-Network Clock Operation

    Configure the jumper JP11 according to table (chapter 2.8) if the source of synchronization is a DCF signal, Mobatime serial code, polarized impulse line, MOBALine or IRIG-B. Choose the item P4 in main MENU (chapter 5) and set the type of synchronization. The auto detection mode (P4:A), when the type of synchronization signal is set automatically, is applicable for DCF signal, Mobatime serial code, MOBALine, IRIG-B, WTD.

  • Page 42: Synchronization And Time Setting - P5 Mode 1 And 3

    In case of the line fault the clock displays the right time information based on its own quartz time base. When the normal operation of the line resumes, the clock synchronizes with the incoming pulses. Slave clock controlled by MOBATIME serial code, MOBALine, or IRIG-B 10.4 •...

  • Page 43: Cascaded Connection Of The Dcf/Gps Synchronized Clock

    Items P14 to P17 are set automatically to 9600 baud, 8 bits, even parity, 1 stop-bit. • In case of communication problems it is possible to lower the communication speed. The modification of the items P14 to P17 is necessary to proceed in all connected displays identically. © MOBATIME 43 / 60 800693.19...

  • Page 44: Ntp And Poe Clock Operation

    NTP server address 3 0.0.0.0 / 0:0:0:0:0:0:0:0 NTP server address 4 0.0.0.0 / 0:0:0:0:0:0:0:0 NTP request time [s] DNS server 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 1 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 2 0.0.0.0 / 0:0:0:0:0:0:0:0 © MOBATIME 44 / 60 800693.19...

  • Page 45: Network Parameters Assignation By Dhcp

    192.168.0.190 • request for entering the password appears after connection (default password is 718084) • the information about software and hardware version followed by the MAC address is displayed after entering the correct password © MOBATIME 45 / 60 800693.19...

  • Page 46: Setting Network Parameters Over Dhcpv6

    The following SLAAC options can be processed: [3] Prefix info [5] MTU [24] Route info [25] RDNSS The network administrator must set the SLAAC options on the server accordingly. Assigned parameters can be checked in the P25 submenu © MOBATIME 46 / 60 800693.19...

  • Page 47: Snmp

    65532 time zone client port number 65534 The menu item P19 must be set to value 1. See chapter 4.2.7 for setting the IPv4 multicast group address in the item P23 submenu. © MOBATIME 47 / 60 800693.19...

  • Page 48: Wifi Clock Operation

    Net name (SSID): MOBAxxxxxx (where xxxxxx represents certain octets of the WiFi clock’s MAC address) Used coding: WPA2 Coding key: password DHCPv4: allowed • Clock’s IP address: 192.168.2.1 • connect clock using telnet, see chap. 12.3. © MOBATIME 48 / 60 800693.19...

  • Page 49: Setting The Network Parameters Using Telnet

    Example of setting network parameters using telnet – WPA and DHPCv4 (valid only for WiFi 2.4 / 5 GHz): • command wifi –s mobatime set network name (SSID) of new wireless network • command wifi –w 7 set version of used coding on PEAP •...

  • Page 50: Testing Mode, Parameter Reset

    Using the PB2 or + button on IR set the value behind the colon to 04 • Keep pushing simultaneously both buttons or the DISP button on IR, until the display shows FAC1 and clock makes reset © MOBATIME 50 / 60 800693.19...

  • Page 51: Firmware Update

    Set the devapp.bin file via the YMODEM 1K protocol to the clock via the terminal menu. A window will appear in the terminal informing you of the progress of the file sending to clock. © MOBATIME 51 / 60 800693.19...

  • Page 52: Firmware Update Over Ethernet On Ntp And Poe Versions

    After entering the password, check if the firmware version is correct, if it isn’t, it is necessary to repeat the whole procedure. • Close the telnet window and end the program tftpd32 with the command exit. © MOBATIME 52 / 60 800693.19...

  • Page 53: Time Zone Table

    South Australia: Adelaide +9.5 Sun. Oct (02:00) Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Vladivostok Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) © MOBATIME 53 / 60 800693.19...
  • Page 54 Time change from Standard time (Winter time) to Summer time DST → Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time © MOBATIME 54 / 60 800693.19...

  • Page 55: Engineering Data

    TP 3 m and TP 30 m can´t be used for model DC.180..WiFi • temperature sensors TP 3 m and TP 30 m for NTP and PoE version on request only • accessories for all models are listed in the "Easy to ordering” table • © MOBATIME 55 / 60 800693.19...

  • Page 56: Voltage Range And Electric Current Consumption Of The Lines

    +- 12 – 30 V MIN, CODE 3 - 7 mA +- 30 – 60 V MIN, CODE (on request) 3 - 7 mA 20 mVpp – 2 Vpp 20 uA – 2 mA IRIG B © MOBATIME 56 / 60 800693.19...

  • Page 57: Accessories And Maintenance

    The following circumstances are excluded from the guarantee: inappropriate handling or interventions chemical influences mechanical defects external environmental influences (natural catastrophes) • Repairs during and after the guarantee period are assured by the manufacture © MOBATIME 57 / 60 800693.19...
