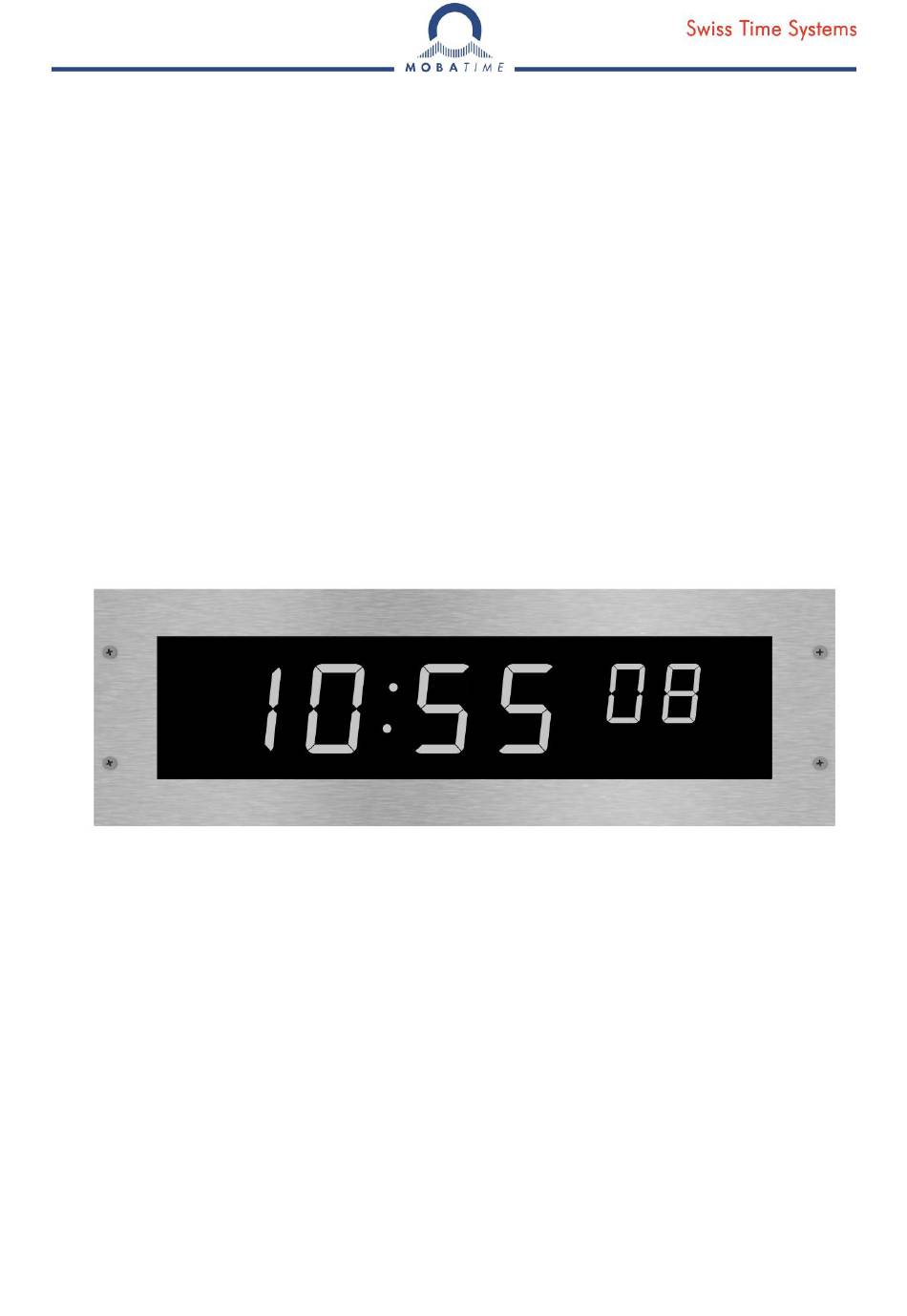

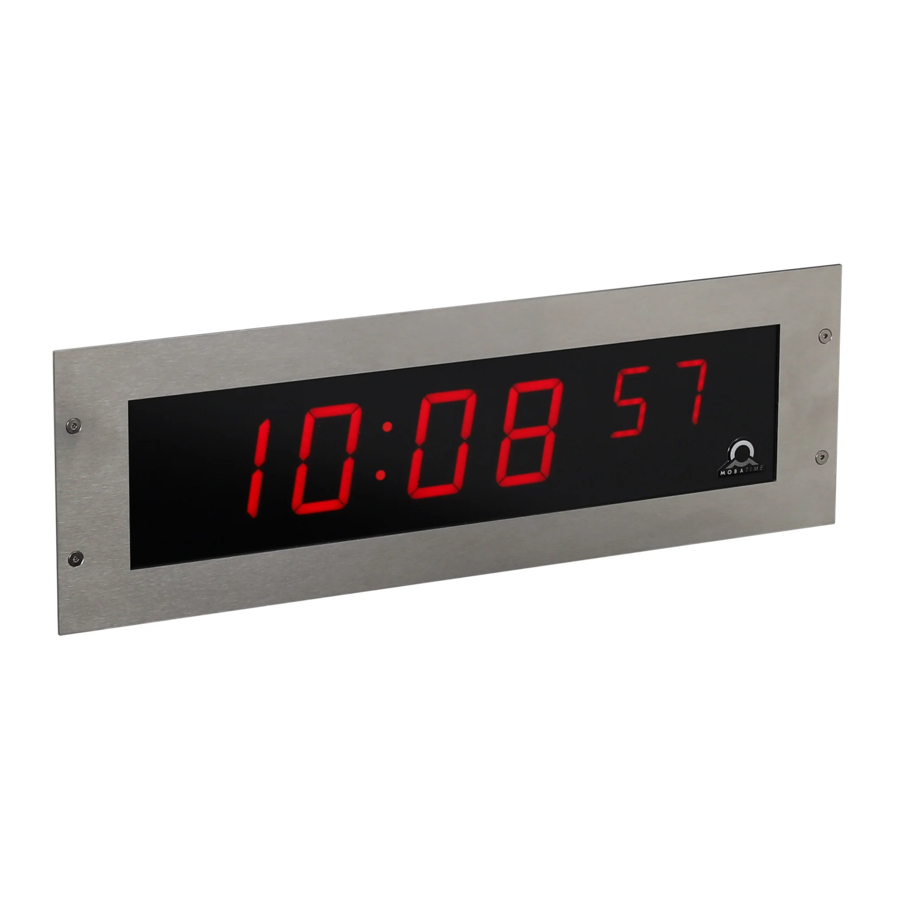

- Page 1 INSTRUCTION MANUAL State-of-the-art technology digital clock ECO-SLH-DC series addition to the standard DC series instruction manual (for ECO-SLH-DC only) © MOBATIME BE-801318.01_ECO-SLH-DC...
- Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
20 GUARANTEE AND MAINTENANCE ......................10 NOTE: Chapters 2.7 - 15 are the same as in the DC Instruction manual. Use the DC user manual to control and set parameters for the ECO-SLH-DC clock. © MOBATIME 3 / 12 801318.01... -
Page 4: Description
Description The models series ECO-SLH-DC series are optimally suited for use in operating rooms, clean room environments, chemical plants, labs, swimming and fitness centres, as well as in the food and beverage industry, canteen, kitchens, etc. ▪ various synchronization options ▪ anti-glare front polycarbonate glass ▪ protection against water jets, easily washable with water and detergents, harmless to health, reliable ▪... -
Page 5: Stopwatch
• DCF 77 signal receiver • temperature sensor with protection degree IP 66 • stainless steel keyboard for clock and stopwatch control, flush mounting • remote IR controller for clock set up and stopwatch control © MOBATIME 5 / 12 801318.01... -
Page 6: Assembly
• Put the clock into prepared hole. Check if any cable is not pinched between the clock body and hole / niche edges. • Fix the clock by four screws to wall / panel. • © MOBATIME 6 / 12 801318.01... -
Page 7: Clock With
Check the marking of the jack-plugs, in order to prevent their mix-up. • Put the clock into prepared hole. Check if any cable is not pinched between the clock body and back cover. • Fix the clock by four delivered screws to back cover. © MOBATIME 7 / 12 801318.01... -
Page 8: Engineering Data
Stainless steel keyboard ECO-SLH-SKF back cover dimension W1 x H1 Dimensions [mm] 82 x 152 x 50 67 x 139 (W x H x D) 16.2 Voltage range and electric current consumption of the lines © MOBATIME 8 / 12 801318.01... - Page 9 +- 12 – 30 V 3 – 7 mA MIN, CODE +- 30 – 60 V 3 – 7 mA MIN, CODE (on request) 20 mVpp – 2 Vpp 20 uA – 2 mA IRIG B © MOBATIME 9 / 12 801318.01...
-
Page 10: Accessories
The following circumstances are excluded from the guarantee: inappropriate handling or interventions chemical influences mechanical defects external environmental influences (natural catastrophes) • Repairs during and after the guarantee period are assured by the manufacturer. © MOBATIME 10 / 12 801318.01... - Page 11 © MOBATIME 11 / 12 801318.01...
