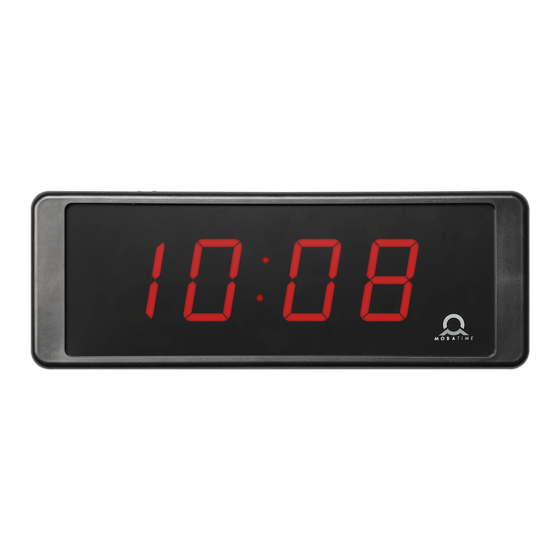

- Page 1 INSTRUCTION MANUAL Economy LED digital clock ECO DC series © MOBATIME BE-800697.05...
- Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication or part of it in any way. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS- Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
Local time calculation ..........................13 Basic setting – control according to source of synchronization .............13 Calculation using MOBALine time zones ....................13 Calculation using Time-zone server MOBATIME ..................13 Calculation using time zone entries preconfigured by MOBA-NMS software........13 Calculation according to internal time zone table ..................14 Control and configuration of the clock using pushbuttons ..............15... -
Page 4: Description
NTP multicast or unicast synchronization powered over PoE or mains Slave clock operation with synchronization by self-setting MOBALine code or by IRIG-B (optionally), mains powered Precision 0.3 s/day at constant temperature – software trimming © MOBATIME 4 / 28 800697.05... - Page 5 Private options of DHCP string to easy configuration of clock parameters when connected to LAN Configuration / supervision by means of MOBA-NMS software or SNMP protocol Firmware update remotely through the network using the TFTP protocol © MOBATIME 5 / 28 800697.05...
-
Page 6: Assembly
Connect all the interconnecting cables into the corresponding connectors in the clock’s back side recess. Hang the clock to the hanging screws. If the clock has to be tilted down, cut the supporting element on the bottom of the back side accordingly. © MOBATIME 6 / 28 800697.05... -
Page 7: Assembly Diagram
Secure the attachment by tightening the screw using the Allen key. Note: during the disassembly first withdraw the clock, and suspend the suspension on the upper groove at the pipe insert. Assembly diagram © MOBATIME 7 / 28 800697.05... -
Page 8: Control Elements
PB1, PB2 control pushbuttons LINK LED (PoE, NTP only) Ethernet link connected ACTIVITY LED (PoE, NTP only) Ethernet connection activity STATE LED state indication POWER LED indication of power applied © MOBATIME 8 / 28 800697.05... -
Page 9: Mobaline And Irig Clock Type Operation
After the connection, the time and date are adjusted automatically following the receipt of valid time information. The synchronization takes 6-15 seconds. The colon permanently lit during the time display signalizes the synchronized clock. See the chapter 6 for further description of parameter setting. © MOBATIME 9 / 28 800697.05... -
Page 10: Ntp And Poe Clock Operation
[234] SNMP manager address [43] or [224] Additional options (refer to document BE-800793) The network administrator must configure the DHCP options accordingly. Assigned parameters can be checked in the submenu of items P8 to P10. © MOBATIME 10 / 28 800697.05... -
Page 11: Manual Setting Through Setup Menu
Hyperterminal note: The Hyperterminal application can be used as an alternative to telnet. It is necessary to activate the “Send line ends with line feeds” and “Echo typed characters locally” in the Properties -> Settings -> ASCII setup window. © MOBATIME 11 / 28 800697.05... -
Page 12: Snmp
65532 time zone client port number 65534 The menu item P7 must be set to value 1. See chapter 6.2.6 for setting the multicast group address in the item P11 submenu. © MOBATIME 12 / 28 800697.05... -
Page 13: Local Time Calculation
Display time and date according to chosen time zone server time zone, incl. daylight saving time This setting is suitable for NTP and PoE digital clocks controlled by MOBATIME NTP servers, which support the time zone server functionality. Calculation using time zone entries preconfigured by MOBA-NMS... -
Page 14: Calculation According To Internal Time Zone Table
Displayed time and date calculation is based on the internal time zone table or on the user–specific time zone parameters. This setting is useful also for the NTP synchronization, when no time zone server is available. © MOBATIME 14 / 28 800697.05... -
Page 15: Control And Configuration Of The Clock Using Pushbuttons
The entry into the parameter setup menu is done by the pushing of the PB2L button. The display shows the following: The item to be adjusted is now blinking The options for the parameter setup are shown in the clock menu table. © MOBATIME 15 / 28 800697.05... -
Page 16: Submenu For Setting The User-Specific Time Zone
The item to be set is blinking. By pushing the PB2S button, the adjusted value is increased in steps of 1; by pushing the PB2L button, the value will be continuously increased. © MOBATIME 16 / 28 800697.05... - Page 17 Enter the month when the daylight saving time ends. The daylight saving time has been set to start on April 28 at 2 o’clock and end on October 10 at 3 o’clock in the example described above. © MOBATIME 17 / 28 800697.05...
-
Page 18: Submenu For Network Services Configuration
Choose the value 2 or 3 in the item P7 (network work mode selection) in the clock menu, then enter the submenu by pushing the PB1L pushbutton for configuring the network services (Multicast support in unicast work mode, SNMP service, Telnet service). The item to be set is blinking. © MOBATIME 18 / 28 800697.05... -
Page 19: Manual Setting Of The Ip Address Of The Clock
IP address. The item to be set is blinking. By pushing PB2S, the adjusted digit value is increased in steps of 1; by pushing the PB2L button, the value will be continuously increased. © MOBATIME 19 / 28 800697.05... -
Page 20: Submenu For Setting The Multicast Group Address
IP address is stored to the definition of the first NTP server, the other NTP server addresses are cleared including those defined by the NTP server domain names. © MOBATIME 20 / 28 800697.05... -
Page 21: Parameter Reset
Keep pushing both buttons on the clock frame simultaneously until the display shows C0:00 Use the PB2 button to set the value behind the colon to 04 Keep pushing both buttons simultaneously until the display shows FAC1 and the clock resets © MOBATIME 21 / 28 800697.05... -
Page 22: Update Firmware Of Ntp And Poe Version Using Tftpd32 Tool
after successfully entering the password, check if the indicated firmware version is correct, otherwise it is necessary to repeat the whole procedure enter the exit command to close the telnet connection, close the tftpd32 window © MOBATIME 22 / 28 800697.05... -
Page 23: Time Zone Table
South Australia: Adelaide +9.5 Sun. Oct (02:00) Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Yakutsk Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) © MOBATIME 23 / 28 800697.05... - Page 24 The Time Zone Table is usually updated every year. The current table is available for download under the following address: www.mobatime.com Customer Area Customer Support Support Resources Software Tools Time Zone Table. In case your device is equipped with a newer version than shown in this manual, the current time zone settings should be checked.
-
Page 25: Technical Data
Voltage range and electric current consumption of the lines Type of slave line Voltage range Electric current consumption MOBALine 5 – 30 VAC 6 – 34 uA IRIG B 20 mVpp – 2 Vpp 20 uA – 2 mA © MOBATIME 25 / 28 800697.05... -
Page 26: Accessories And Maintenance
4 pcs interconnecting cable for second side 1 pc Allen key for fastening the console 10.3 Cleaning Clean only the clock surface. Use soft rags and antistatic detergents. Don’t use synthetics. © MOBATIME 26 / 28 800697.05... - Page 27 © MOBATIME 27 / 28 800697.05...
- Page 28 © MOBATIME BE-800697.05...
