Installation instructions

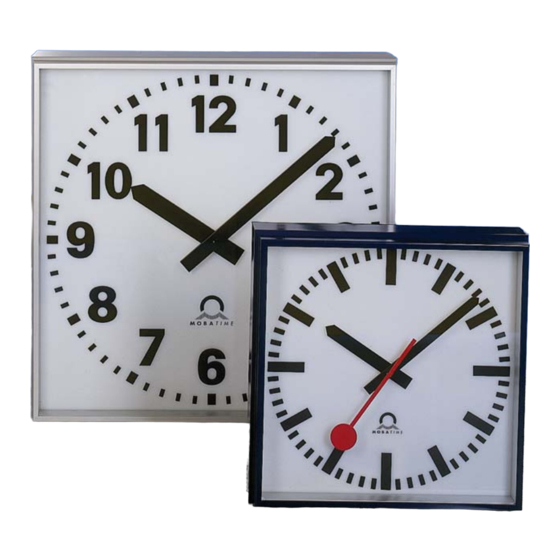

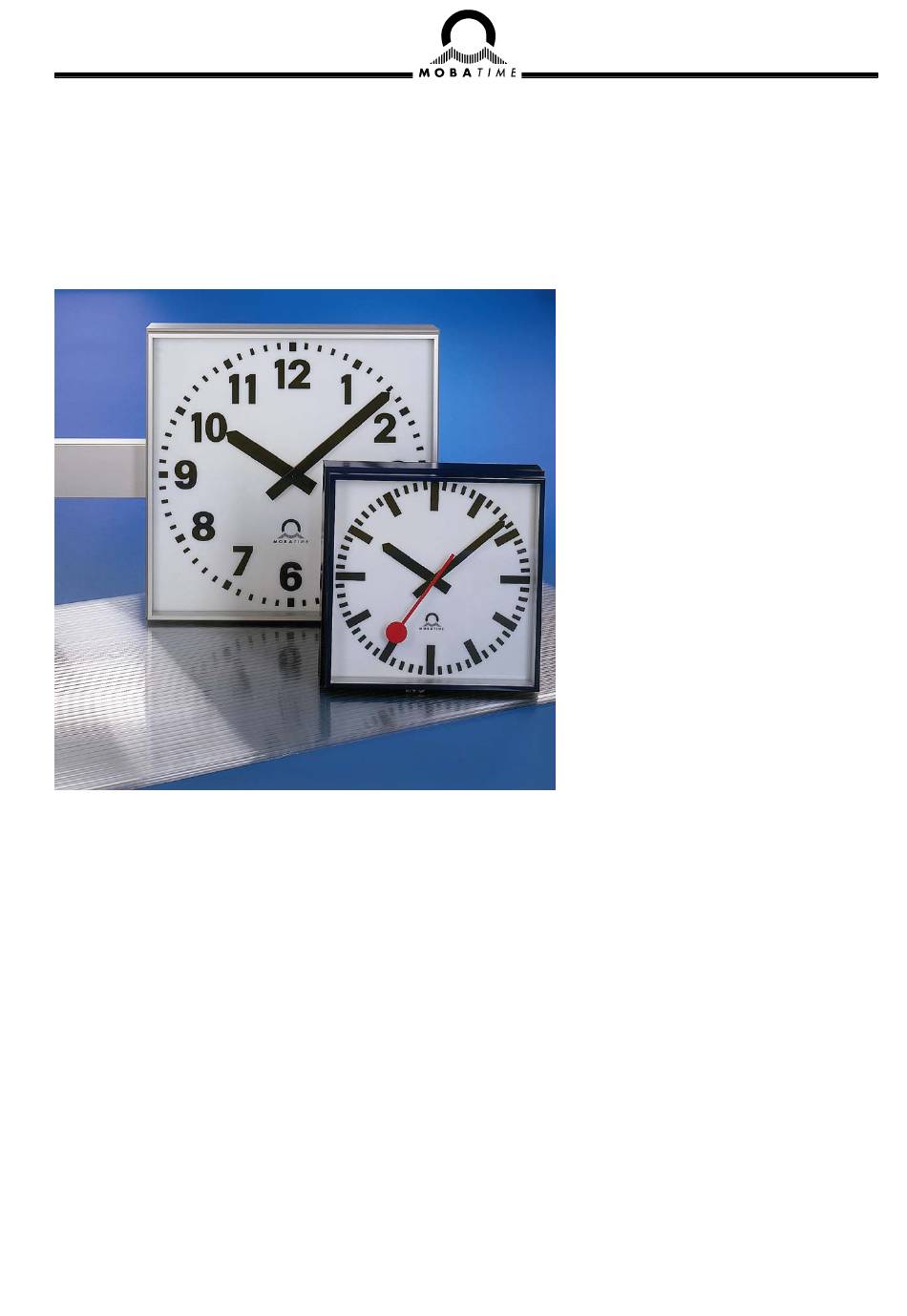

PROFILINE – industrial clocks, double-sided, square
Before installation of the clock please read the manual carefully.
References to the Instruction Manual
1. The information in this Instruction Manual can be changed at any time without previous
notice.
2. This Instruction Manual has been composed with utmost care, in order to explain all details in
respect of the operation of the product. Should you, nevertheless, have questions or discover
errors in this Manual, please contact us.
3. We do not answer for direct or indirect damages, which could occur, when using this Manual
4. Please read the instructions carefully and start the setting-up of the product, only once you
have correctly understood all information for the installation and of the operation.
5. The installation must only be carried out by skilled staff.
6.
It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or
another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH,
D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.
© MOBATIME
TE-800640.03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mobatime PROFILINE Series
Summary of Contents for Mobatime PROFILINE Series
- Page 1 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.
-
Page 2: Table Of Contents
Slave clock for MOBALine (SAM230, SFM230) ..................15 Slave clock for DCF-77 – time code (SAA, SFA) ..................16 Slave clocks for serial telegram synchronization (SAT, SFT) ..............16 Slave clock with synchronisation over RS-485 (SAS, SFS) ..............17 © MOBATIME 2 / 20 800640.03... -
Page 3: Mounting Guidelines
80 cm Cable- entrance Wall bracket (WA) without illumination with illumination Nominal- model model 2-seitig 40 cm PLQ.xxx.40.WA PLQB.xxx.40.WA 2-seitig 50 cm PLQ.xxx.50.WA PLQB.xxx.50.WA 2-seitig 60 cm PLQ.xxx.60.WA PLQB.xxx.60.WA 2-seitig 80 cm PLQ.xxx.80.WA PLQB.xxx.80.WA © MOBATIME 3 / 20 800640.03... -
Page 4: Central Pole Mounting "Zm
Steel tightening strap width 29 mm, no special tool is necessary for mounting. without illumination without illumination Nominal- model model 2-sided 50 cm PLQ.xxx.50.SM PLB.xxx.50.SM 2-sided 60 cm PLQ.xxx.60.SM PLB.xxx.60.SM 2-sided 80 cm PLQ.xxx.80.SM PLB.xxx.80.SM © MOBATIME 4 / 20 800640.03... -
Page 5: Building Department / Authority Permit
Disconnect mains 230V/50Hz BEFORE start working at clock inside! For cable entry of the line for minute impulse resp. the DCF-77 – radio receiver a second membrane rubber bushing is prepared. Connections and plug-in connections see mounting plates (pages 9-15). © MOBATIME 5 / 20 800640.03... -
Page 6: Clocks With Protection Class I
Mains connection for illumination Zero conductor Protective conductor connection The sheath must be led into the shackle and fastened with a cable strap. Keep connecting leads to the print clamp as short as possible. © MOBATIME 6 / 20 800640.03... -
Page 7: Internal Connections
The internal wiring is made in factory. It’s important not to modify the internal wiring. 2.3 Autonomous quartz clocks (QU) The movement is driven by battery. Battery life with lithium battery (250394): 6 – 7 years. © MOBATIME 7 / 20 800640.03... -
Page 8: Autonomous Radio Controlled Clocks With External Dcf 77 Radio Receiver (Fu)
12-hour position and if the reception quality is good enough, after 5 to 10 minutes, the clock sets on actual time. If not, repeat the procedure. Profiline clocks with radio-controlled movements FU 192 are delivered with a separate initiation instruction. Battery life with lithium battery (250394): 6 – 7 years. © MOBATIME 8 / 20 800640.03... -
Page 9: Autonomous Radio Controlled Clocks With External Gps - Receiver (Gu)
- Operating voltage switch (C) on back side of movement: The operating voltage is factory set to 24 VDC. If other voltage required, set DIP – switch according to diagram on backside of movement. © MOBATIME 9 / 20 800640.03... -
Page 10: Slave Clocks (Sax, Sfx)
Slave clocks for serial telegram and mains connection (SAS, SFS) PLQ(B).SAS.50, PLQ(B).SAS.60, PLQ(B).SAS.80 manual with movement SU 190t 230 BE – 800 623 PLQ(B).SFS.50, PLQ(B).SFS.60, PLQ(B).SFS.80 manual with movement SU 190t S 230 BE – 800 624 © MOBATIME 10 / 20 800640.03... -
Page 11: Regulate The Movement
Remove the wooden stick, close the clock and fix the clock with the fixing screw. 5 Valid documents Movements xBU 190t xxx see chapter 2.7 Movements NU 90t/SYN BE – 800 143 Movements NU 90t BE – 800 142 DCF – receiver AD 450 TE – 800 116 © MOBATIME 11 / 20 800640.03... -
Page 12: Mounting Plates
FWU 192 GU 192 Order reference PLQ(B).QU.xx PLQ(B).FWU.xx PLQ(B).GU.xx Nebenuhrwerke Impuls Vorschaltgerät 250 712 Starter Beleuchtung With optional power supply (201670): choke starter 250 712 movement 2 movement 1 connection protection earth connection ring shape © MOBATIME 12 / 20 800640.03... - Page 13 2 minutes, which means totally about 8 minutes. This is also valid for the daylight saving time change. © MOBATIME 13 / 20 800640.03...
-
Page 14: Slave Clock With Minute Pulses W/O Synchronous Seconds (A)
NU 90t/SYN move- minute pulses ment 2 Order reference PLQ(B).F.xx minute pulses Supply 230V movement 1 Slave clock minute pulses Supply 230V movement 2 pulses choke 250 712 starter connection protection earth connection ring shape © MOBATIME 14 / 20 800640.03... -
Page 15: Slave Clock For Mobaline (Sam, Sfm)
Werk 2 Electrical connections MLU 190t (S) 230 Order reference PLQ(B).SAM230.xx PLQ(B).SFM230.xx MOBALine Supply 230V movement 1 slave clocks MOBALine Supply 230V movement 2 MOBALine choke 250 712 Starter connection protection earth connection ring shape © MOBATIME 15 / 20 800640.03... -
Page 16: Slave Clock For Dcf-77 - Time Code (Saa, Sfa)
DCF-FSK - time code PLQ(B).SFT.xx ITBU: Minutenimpulse, IRIG-B, AFNOR, DCF-FSK - time code minutes pulse Supply 230V movement 1 slave clocks time code Supply 230V movement 2 time code choke 250 712 starter connection ring shape © MOBATIME 16 / 20 800640.03... -
Page 17: Slave Clock With Synchronisation Over Rs-485 (Sas, Sfs)
230V Detail 2 Detail 2 for illumination Detail 2 for external control from NMC via RS 485 illumination control Perpetually supply for movements Important! Perpetually Switched supply 230VAC/50Hz 230VAC/50Hz from same fuse for illumination © MOBATIME 17 / 20 800640.03... - Page 18 © MOBATIME 18 / 20 800640.03...
- Page 19 © MOBATIME 19 / 20 800640.03...
- Page 20 Subject to change without notice September 2017 © MOBATIME TE-800640.03...
