MOUNTING AND
INSTRUCTION MANUAL
Net Master Clock

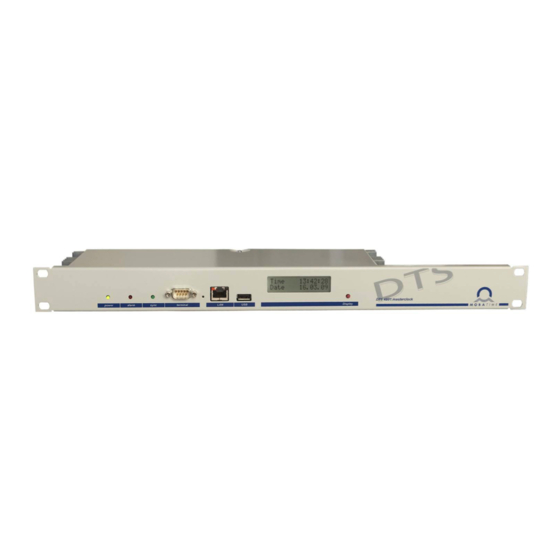

DTS 4801.masterclock
DTS 4802.masterclock
Network Timeserver and Master Clock
© MOBATIME
BE-800652.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS 4801.masterclock and is the answer not in the manual?

Questions and answers

Related Manuals for Mobatime DTS 4801.masterclock

Summary of Contents for Mobatime DTS 4801.masterclock

  • Page 1 MOUNTING AND INSTRUCTION MANUAL Net Master Clock DTS 4801.masterclock DTS 4802.masterclock Network Timeserver and Master Clock © MOBATIME BE-800652.11...
  • Page 2 Certification of the Producer STANDARDS The DTS 4801.masterclock and the DTS 4802.masterclock were developed and produced in accordance with the EU Guidelines: 2006 / 95 / EG 2004 / 108 / EG 96 / 48 / EG CB Test Certification (IEC 60950-1) :...

  • Page 3: Table Of Contents

    F  Option IRIG-B: IF 488 Configuration ..................... 108  G  Copyright Notice ..........................109  H  Block diagram ..........................110  I  Technical data ..........................111  J  Index .............................. 114  K  Connection Table (to be filled-in) ....................116  © MOBATIME 3 / 120 800652.11...
  • Page 4 NTP slave clocks / Time zone server ....39     6.5.10 Switch function / Switch program ......41     6.5.11 Time handling ............45     6.5.12 General time configuration ........46     6.5.13 Time source ............47 © MOBATIME 4 / 120 800652.11...
  • Page 5 F  Option IRIG-B: IF 488 Configuration ..108  G  Copyright Notice ......... 109  H  Block diagram ..........110  I  Technical data ..........111  J  Index ............114  K  Connection Table (to be filled-in) ....116  © MOBATIME 5 / 120 800652.11...

  • Page 6: 1  Safety

    DCF active code clocks. The DTS 4802 has 2 such lines. For additional functions, see the device descriptions in Chapter 3.4. The device is designed for 19" racks and intended to be installed in a 19" cabinet. Operate the device only in installed condition. © MOBATIME BE-800652.11...

  • Page 7: Observe Operating Safety

     This device complies with the requirements of the EMC and the Low-voltage Directive. Caution!  This product belongs to Class A in accordance with EN 55022. This equipment can lead to radio interference. In this case, measures must be taken by the user. © MOBATIME 7 / 120 800652.11...

  • Page 8: 2  Maintenance

    Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 8 / 120 800652.11...

  • Page 9: 3  General Information: Introduction

    - spring terminal 2-pole orange  2 pcs mounting tools with spring terminals Technical Data See Appendix "I Technical data". Device Description in this Manual This instruction manual is for the master clocks DTS 4801.masterclock and DTS Below both models will referred 4802.masterclock.

  • Page 10: Device Types

    203397 active code 1 RS 485 clock line Like DTS 4801, additional with IRIG-B / AFNOR / DCF-FSK – line DTS 4801.masterclock IRIG-B 203495 (built in IF 488 interface) According to the description above 2 clock lines MOBALine/Impulse/DCF DTS 4802.masterclock...

  • Page 11: Dts Distributed Time System

    MOBA-NMS is a software used for central management and inquiry of state and alarm information. It supports DTS devices as well as all MOBATime analog and digital network clocks and can handle a network with more than 1000 devices. This software provides extensive functions for the configuration, installation, back-up / recovery etc.

  • Page 12: Overview Of The Main Functions

    3.7.2 Device management All MOBATime network devices are displayed in the so-called device view. Here, the devices can be grouped according to user-defined criteria. For this, the individual devices can simply be moved to the according groups and sorted using drag and drop.

  • Page 13: 4  Displays

    LAN control lamps: Left Green Blinking Network activity Orange Blinking No connection to network Right Yellow 10 Mbit 100 Mbit LED displays rear view Description Color Status Description DCF in Blinking DCF (GPS reception) © MOBATIME 13 / 120 800652.11...

  • Page 14: Display

    If a USB stick has been plugged in, it will be displayed. Should only telegram and/or program files be copied, this can be activated directly with the button. (Press the button until the copy process starts). © MOBATIME 14 / 120 800652.11...

  • Page 15: 5  Installation

    The duration, depending on the configuration, is 5-30 sec. Firmware It is recommended to install the current firmware on your device prior to the definite commissioning. The current firmware can be found under www.mobatime.com  Customer Data  Product Ressources  Time Server. © MOBATIME 15 / 120 800652.11...

  • Page 16: Basic Settings (Factory Settings)

    Autoconf IPv6 Link auto Hostname DTS4801 Alarm Relay all on, except 4 alarm inputs Mail SNMP traps NW Services SSH Telnet SNMP Modus RO community romobatime RW community rwmobatime SNMP Traps Mode Trap community trapmobatime © MOBATIME 16 / 120 800652.11...

  • Page 17: 6  Operation

    For example, for HyperTerminal under "File  Properties  Settings - Backspace sends DEL" must be selected. Localecho: Some terminals (serial or Telnet) do not display the characters entered. It is, therefore, necessary to switch on the "local echo" in the terminal. © MOBATIME 17 / 120 800652.11...

  • Page 18: Serial Connection

    Windows 98, 2000, XP, Vista, Windows 7: Start  Run  telnet [IP-address] Password: dts NetTerm (Shareware) Linux: Start console and enter “telnet [IP-address] 6.1.3 Windows 98, 2000, XP, Vista, Windows 7: e.g. with Putty Linux: Start console and enter “ssh dts@[IP-address]“ Password: dts © MOBATIME 18 / 120 800652.11...

  • Page 19: Menu Structure

    In the menus where data cannot be saved (command 98), the menu is only exited with 99, but any changes are not saved. The current menu is updated, without any further entry, with ENTER. © MOBATIME 19 / 120 800652.11...

  • Page 20: Moba-Nms Operation

    (called „tabs“). These tabs are connected to the terminal menu and designated accordingly. Example: The terminal menu „Configuration  Alarms“ can be found in MOBA-NMS under the tab „Alarms“. Configuration example of a DTS 4801.masterclock: configuration pages (tabs) For further details on the general MOBA-NMS operation, check the integrated online help (menu „Help ...

  • Page 21: Main Menu

    Display of various information regarding operation and environment See Chapter “6.4 Status Menu“ Configuration Configuration of the DTS 480x See Chapter “6.5 Configuration Menu“ Maintenance Software update, backup and restore See Chapter “6.6 Maintenance Menu“ © MOBATIME 21 / 120 800652.11...

  • Page 22: Status Menu

    7. Internal system information display (internal status,..). This information is for support purposes only. 8. Product information's like serial number, firmware version etc. 9. All several software versions of the DTS 480x. © MOBATIME 22 / 120 800652.11...
  • Page 23 Status menu page 2: Display of information with regard to the internal state of the NTP server. © MOBATIME 23 / 120 800652.11...

  • Page 24: Time Information And Status

    - Offset to source: offset to source (source – system time) - Jitter of the source: current jitter - Quality of the source: quality of the source - CAN server current CAN server in CAN mode © MOBATIME 24 / 120 800652.11...

  • Page 25: Time Source Information

    1 with each DCF pulse. For the minute marker, the counter is set to 0. -Stratum of the source: stratum of the local time source can be defined with this value. © MOBATIME 25 / 120 800652.11...

  • Page 26: Configuration Menu

    See chapter "6.5.24 Services (Network services FTP, Telnet, SSH..)" 7. SNMP configuration for GET/PUT. See chapter "6.5.25 SNMP" (Traps are dealt with in menu ’2. Configuration’  ’3. Alarms’  ’3. Traps’. See also chapter 6.5.21 SNMP Traps) © MOBATIME 26 / 120 800652.11...

  • Page 27: Lines

    (RS 485 clock line only active with the DTS 4801)  NTP slave clocks / time zone server  see chapter “6.5.9 NTP Slave clocks / Time Zone Server“  Switch functions  see chapter “4.4.9 Switch Functions“ © MOBATIME 27 / 120 800652.11...

  • Page 28: Mobaline

    6. Switch function on or off 7. World time function on or off 8. Configure time zone table for world time Important: Changes can only be undertaken when the clock line is switched off! © MOBATIME 28 / 120 800652.11...

  • Page 29: Irig-B, Afnor (Option)

    6.5.3 IRIG-B, AFNOR (Option) In the case of the "DTS 4801.masterclock IRIG-B“ model, an IF 488 interface is internally installed. The function is only available, if the clock line is configured to MOBALine! The IF 488 interface is configured to "IRIG-B standard" by default. If a different code (e.g.

  • Page 30: Impulse Line

    Important: Changes can only be undertaken when the clock line is switched off! Normal operation Acceleration Mode Pulse time Pause time Impulse interval is determined by the line mode (e.g. min = 1 minute) Mode © MOBATIME 30 / 120 800652.11...

  • Page 31: Dcf Active Code Line

    DTS 4802: The maximum current is divided between both lines, i.e. it can always only be the remainder at the most, that can be set as maximum current. Important: Changes can only be undertaken when the clock line is switched off! © MOBATIME 31 / 120 800652.11...
  • Page 32 Mode 1/6, 2/5, 3/4 are equal. Their polarity only depends on how the line is connected to the DTS 480x.masterclock. The signal forms shows the voltage measured from terminal a to terminal b (refer to annex A). © MOBATIME 32 / 120 800652.11...

  • Page 33: Dcf / Pulse Output

    – Pulse interval 960 sec. (16 min.)  Pulse occurs: 00:00:00, 00:16:00, 00:32:00, 00:48:00, 01:00:00, 01:16:00 ... – Pulse interval 25sec  Pulse occurs: 00:00:00, 00:00:25, 00:00:50, 00:01:15, 00:01:40, 00:02:05 ..00:59:35, 01:00:00, 01:00:25 ... 6. Output correction (-500ms...+500ms) © MOBATIME 33 / 120 800652.11...

  • Page 34: Serial Telegrams

    8. Selecting telegram file changes to the menu “SELECTION OF FILE“ Important: To set the parameters, the line type has to be selected first! The description of the telegram function and the telegram file can be found in Appendix E Serial Telegrams. © MOBATIME 34 / 120 800652.11...
  • Page 35 Selection of the telegram file: The copy procedure of telegram files is explained in chapter "7.10 Copying telegram or program files to DTS 480x.masterclock". © MOBATIME 35 / 120 800652.11...

  • Page 36: Rs 485 Clock Line

    RS485 interface: 9600 bauds, 7 data bits, even parity, 1 stop bit, no flow control The MOBA-RS485 PROTOCOL is used for the monitored clocks. The broadcast function can be configured with the serial telgramm MC482STD.TEL. © MOBATIME 36 / 120 800652.11...
  • Page 37 (Comm. error: e.g. if 2 clocks have the same address) In brackets behind the status: Info for support Type of clock, e.g. SU 190, DMU 140, DMU 350, DC 57/100/180 Software and software version of the clock Status of light monitoring © MOBATIME 37 / 120 800652.11...
  • Page 38 Alarm list of the RS485 slave clock line: Error number display (continuous), equipment number (clock number), name, date and time of the error in UTC, error name and error number. The error list is deleted when the DTS 480x is restarted. © MOBATIME 38 / 120 800652.11...

  • Page 39: Ntp Slave Clocks / Time Zone Server

    = Send an empty time zone table and return to previous mode. 2. Multicast adress for NTP and time zone server: 239.192.54.x Group address: x = 1..15 for MOBATIME devices, e.g. NCI, SEN 40. 3. Multicast port for time zone server (enter an arbitrary value, empty is not allowed ! Value e.g.: 65534).
  • Page 40 Choose a zone number to change selected zone. Time zone selection (see chapter “6.5.28 Time zone selection“) The page can be exited with 99. Changes are first stored or reset on the overlying menu page. © MOBATIME 40 / 120 800652.11...

  • Page 41: Switch Function / Switch Program

    Control inputs changes to the menu “CONTROL INPUTS“ Actual channel conditions / manual control changes to the menu “CHANNEL STATE“ In chapter “10 Description of switch function“ the construction and dependence of the switch function is described. © MOBATIME 41 / 120 800652.11...
  • Page 42 ) 1 = The twilight function is linked to the switch program OR 2 = The twilight function is linked to the switch program AND Position: longitude in degrees. East = negative © MOBATIME 42 / 120 800652.11...
  • Page 43 If an alarm input is used as switch input, it must be masked in all alarm masks. In chapter “10 Description of switch function“ the set up and dependency of the switch functions are described. © MOBATIME 43 / 120 800652.11...
  • Page 44 By entering a channel, the page can be changed to that of manual switching for that channel: After a restart or after changing the program file, it can take up to 2 min until the states displayed correspond to the effective states on the channel relay. © MOBATIME 44 / 120 800652.11...

  • Page 45: Time Handling

     Configuration of the local time source  See Chapter 6.5.13  NTP Server / NTP Sources  See Chapter 6.5.14  CAN (MTC)  See Chapter 6.5.15  Manual time set  See Chapter 6.5.16 © MOBATIME 45 / 120 800652.11...

  • Page 46: General Time Configuration

    3. Set period of time for the leap second in UTC with the format: “hh:mm:ss TT.MM.YY“. The next usual time will be displayed as a proposal. Description of leap second see chapter “8.6 Leap Second“. © MOBATIME 46 / 120 800652.11...

  • Page 47: Time Source

    Duration of stratum change 1 to 16 in the case of time loss (1-999h), e.g. 24 hrs  after DCF/GPS time source failed, stratum counts up from 1 to 16 within 24 hrs Default value: 12h For description of time source see chapter “8 Time administration“ © MOBATIME 47 / 120 800652.11...

  • Page 48: Ntp Server

    Summary about configured NTP – broadcast addresses. Select to configure and display changes to the menu “NTP MULTI- / BROADCAST- ENTRY“ NTP Authentication: Changes to the menu “NTP AUTHENTICATION“ Information about a multicast – address, configured for NTP slave clocks. © MOBATIME 48 / 120 800652.11...
  • Page 49 Maxpoll and Minpoll on automatic can lead to insufficient synchronization accuracy. The specified accuracies were measured with Minpoll = 3 and Maxpoll = 6. The configuration server should be used as far as possible. © MOBATIME 49 / 120 800652.11...
  • Page 50 Number of routers over which the multicast packet should be transmitted: for simple networks without a router - enter 1, for 1 router - enter value 2. 4. Authentication key: off, key number, autokey Important: All changes lead to a restart of the NTP server! © MOBATIME 50 / 120 800652.11...
  • Page 51 GQ server certificate from /ram. import_mv import the MV server certificate from /ram. clear_ram delete the certificates in /ram clear_keys delete the certificates in the NTP key directory Example: export_iff myPassword exports the IFF client certificate to /ram. © MOBATIME 51 / 120 800652.11...

  • Page 52: Communication Alarm Network (Can) To Mtc

    MTC CAN module U6.5. The time sources can no longer be changed if CAN is switched on on the DTS 480x. If multicast is used, the local time source must be set to "local". Attention: Otherwise, it can be set to "off". © MOBATIME 52 / 120 800652.11...

  • Page 53: Manual Time Set

    Call menu: '2 Configuration  2 Time handling  5 Manual time adjustment': Set UTC time in the format “YY.MM.DD hh:mm:ss“. Time is set with ENTER! 2. Correct time in ms (- = backwards). Range: +/-10'000ms Time is set with ENTER! © MOBATIME 53 / 120 800652.11...

  • Page 54: Alarms

    Under alarms, settings can be undertaken for the following functions:  Alarm relays  see chapter 6.5.18  E-Mail  see chapter 6.5.20  SNMP-Traps  see chapter 6.5.21 6.5.18 Alarm relays Alarm mask for relay (see chapter "6.5.19 Alarm mask") © MOBATIME 54 / 120 800652.11...

  • Page 55: Alarm Mask

    The alarm masks only apply to the corresponding function, but not for the internal alarm recording (Menu '1. Status'  ’1. Alarm state’ and Menu '1. Status'  ’2. Alarm history’). © MOBATIME 55 / 120 800652.11...

  • Page 56: E-Mail

    ENTER without entering an address will delete the entry. Press ENTER to change to page 2. Important: Configuration of a gateway is required for sending e-mails (see chapter "6.5.23 Network"). This can be set via DHCP or manually. © MOBATIME 56 / 120 800652.11...
  • Page 57 13. Password (only for authentication mode 1-4) Press ENTER to change to page 1. Format of an error message via E-Mail: Event <Alarm 21 set: NTP does not run> Time <13:34:34 06.02.09> Hostname <DTS480x (10.241.0.18)> © MOBATIME 57 / 120 800652.11...

  • Page 58: Snmp-Traps

    Important: Configuration of a gateway is required for sending SNMP traps (see chapter 6.5.23 Network). This can be set via DHCP or manually. Important: Each configuration change leads to a restart of the SNMP DTS Agent. Important: SNMP has to be activated for sending traps. © MOBATIME 58 / 120 800652.11...
  • Page 59 ENTER without entering an address will delete the entry. 2. Port of the evaluation system (usually 162). 3. SNMP Version: 1=SNMP V1, 2=SNMP V2c Important: Each configuration change leads to a restart of the SNMP DTS Agent. © MOBATIME 59 / 120 800652.11...

  • Page 60: General Settings

    Setting the time zone for the display, and also all alarm logs, e-mail and SNMP. (See chapter “6.5.28 Time zone selection“) 3. Enter password for the menu (user dts) (max. 15 characters). A password must be configured. © MOBATIME 60 / 120 800652.11...

  • Page 61: Network

    DHCP. If no gateway is available, the own IP address can be used. Only one DNS server should be configured (IPv4 or IPv6). Attention: Settings to the network must be agreed with the network administrator! Attention: © MOBATIME 61 / 120 800652.11...
  • Page 62 A DHCP renew can also be triggered via this point. Important: DHCP on, if no DHCP server is available, leads to longer start-up time (<75 sec.) of the DTS 480x. 2.-5. Set IP address, subnet mask, gateway and DNS-Server. Format = 10.240.98.7 © MOBATIME 62 / 120 800652.11...
  • Page 63 Network configuration IPv6: Autoconf on or off DHCPv6 on or off IP address with prefix in IPv6 format e.g. 2001:2345:6789::12:1:34/64 Gateway in IPv6 format IPv6 DNS server © MOBATIME 63 / 120 800652.11...

  • Page 64: Services (Network Services Ftp, Telnet, Ssh

    6.5.24 Services (network services FTP, telnet, SSH..) Network services configuration: 1.-3. Switch the individual services off or on. © MOBATIME 64 / 120 800652.11...

  • Page 65: Snmp

    5. Configuration of SNMP V1 / V2 c (specific settings). See chapter “6.5.26 SNMP V1 / V2c“ 6. Configuration of SNMP V3 (specific settings). See chapter “6.5.27 SNMP V3“ Important: Each configuration change leads to a restart of the SNMP DTS Agent. © MOBATIME 65 / 120 800652.11...

  • Page 66: Snmp V1 / V2C

    1. Community string for read only (Group membership for GET). Standard: romobatime. 2. Community string for read/write (Group membership for GET/PUT). Standard: rwmobatime. Important: Each configuration change leads to a restart of the SNMP DTS Agent. © MOBATIME 66 / 120 800652.11...

  • Page 67: Snmp V3

    0=noauth (no authentication) 1=auth (only authentication) 2=priv (authentication and privacy) 3. SNMP read access: 0=none (no access) 1=all (full access) 2=DTS info (only DTS specific information) 3=user defined 1 (viewDTS1) 4=user defined 2 (viewDTS2) © MOBATIME 67 / 120 800652.11...
  • Page 68 1. - 3. Include View path, form: .1.3..6.1.4.1.13842.4 (e.g. DTS) or .iso (complete SNMP ISO path). 4. - 6. Exclude View path: analogue include. Important: Each configuration change leads to a restart of the SNMP DTS Agent. © MOBATIME 68 / 120 800652.11...

  • Page 69: Time Zone Selection

    A time zone can be selected on the actual page by entering a time zone number. Only one time zone is selected at any time. Press ESC to leave the page. The modifications will be saved or restored one menu level higher. © MOBATIME 69 / 120 800652.11...

  • Page 70: Maintenance Menu

    7. Restart DTS 480x.masterclock. 8. Copy telegram or program files on to the DTS 480x.masterclock.  See chapter "7.10 Copying telegram or program files on to the DTS 480x.masterclock". See also chapter "7 Updates". © MOBATIME 70 / 120 800652.11...

  • Page 71: 7  Updates

    "Update in progress" appears and at the same time, “Please wait!>“ is shown in the command line. All images are copied. The DTS 480x is automatically restarted on completion of the update. The Telnet or SSH session has to be restarted. © MOBATIME 71 / 120 800652.11...

  • Page 72: Updating Applications Or Configurations Via Ftp

    DTS 480x in accordance with chapter “7.3 Updating applications or configurations via FTP“. Impulse lines should be stopped before the update with dtscfg.img and separated from the DTS 480x (after the update, the line starts with MOBALine). © MOBATIME 72 / 120 800652.11...

  • Page 73: Updating Applications Or Configurations Via Usb

    If interrupted, the software on the DTS 480x will be destroyed and it has to be returned to the manufacturer for repair. To eliminate any mistakes during the update procedure, the versions should be verified after the update. © MOBATIME 73 / 120 800652.11...

  • Page 74: Ftp Connection

    Programs (examples) CuteFTP Kbear SFTP Connection SFTP = SSH File Transfer Protocol SFTP-Tools Windows 98, ME, 2000, XP, Vista, Linux (Suse, Redhat) Windows 7 Integrated in the system Konqueror (file manager): Programs (examples) WinSCP © MOBATIME 74 / 120 800652.11...

  • Page 75: Scp Connection

    Save the file dts4801.conf (configuration) to the user PC (e.g. copy the file to the Desktop or to the directory My Documents). Additionally also save possible telegram and program files from the DTS 480x directory /var/local/dts. © MOBATIME 75 / 120 800652.11...

  • Page 76: Copying Telegram Or Program Files To The Dts 480X.masterclock

    Important: After the file copy procedure, the output of the telegram files and the treatment of the switch programs are re-started (take over of the files). Important: The file name is limited to 8 characters before the dot, e.g. IF482Std.tel. © MOBATIME 76 / 120 800652.11...

  • Page 77: 8  Time Administration

    Time Code output Switch Program Impulse Line, (DCF 77) DCF active line DTS 4802: 2 lines Configurable time zones: Chapter 6.5.22 Chapter 6.5.13 Chapter 6.5.2, 6.5.4 Chapter 0 Chapter 6.5.10 Chapter 6.5.7 6.5.8 Chapter 6.5.9 © MOBATIME 77 / 120 800652.11...

  • Page 78: Time Take-Over, Ntp

    Exception for time take-over: After a software update, the first time take over can last distinctly longer (> 8 minutes). © MOBATIME 78 / 120 800652.11...

  • Page 79: Fix Stratum For Local Time Source

    The stratum of the DTS 480x starts The stratum of the DTS 480x is Fix from 0 to unsynchronised as per set stratum + 1. stratum timeout value. © MOBATIME 79 / 120 800652.11...

  • Page 80: Time Server

    The following algorithms are used for this purpose:  Data Encryption Standard (DES) (partly restricted in North America and no longer integrated into new NTP variants (>V4.2))  Message Digest (MD5) The DTS 480x only supports the MD5 procedure. © MOBATIME 80 / 120 800652.11...
  • Page 81 The signs ' ', '#', '\t', '\n' and '\0' are not used in the MD5 ASCII key! Key 0 is reserved for special purposes and should, therefore, not be used here. ntp.keys: man page for ntp.keys to be noted (check the internet) © MOBATIME 81 / 120 800652.11...

  • Page 82: Ntp Autokey

    NTP Autokey is relatively complex in its use and studying the functionality is definitely necessary beforehand. Autokey is descrbied at http://www.cis.udel.edu/~mills/proto.html or on the NTP homepage http://www.ntp.org. Autokey is currently defined in an IETF draft. http://www.ietf.org/internet-drafts/draft-ietf-ntp-autokey-04.txt The configuration of Autokey is explained in http://support.ntp.org/bin/view/Support/ConfiguringAutokey or in http://www.ntp.org/ntpfaq/NTP-s-config-adv.htm#S-CONFIG-ADV-AUTH. © MOBATIME 82 / 120 800652.11...

  • Page 83: 9  Snmp

    General DTS definition, always required DTS480x (DTS480x-MIBv1.TXT) Device specific DTS definitions The MIB files can be copied from the DTS 480x.masterclock with FTP (for FTP use, see chapter “7.6 FTP Connection“): DTS-MIB: /etc/snmp/mibs/ Standard MIBS: /usr/share/snmp/mibs/ © MOBATIME 83 / 120 800652.11...

  • Page 84: Device Configuration With Snmp

    9.3.2 Shutdown [dts480xShutdown] Sent out when the subagent for the DTS is stopped. This Notification is always sent out, as soon as SNMP is activated and a destination address is configured. © MOBATIME 84 / 120 800652.11...

  • Page 85: Status Changed [Dts480Xstatuschanged]

    The ConfigChangedTime variables show the time (TimeTicks value 1/100 seconds) of the last change of the relevant configuration group. The management system can decide on the basis of these time values, which configurations need to be reloaded. © MOBATIME 85 / 120 800652.11...
  • Page 86 (1..4) (dts480xNTPSourceAddr dts480xNTPSourceMinPoll dts480xNTPSourceMaxPoll dts480xNTPSourceMode dts480xNTPSourcePrefer dts480xNTPSourceKey) dts480xTimeManualSet dts480xManualTimeSetUTC dts480xManualTimeSetDiff dts480xOutLineClock1 dts480xOutLineClock1Type dts480xOutLineClock1Mode dts480xOutLineClock1Timezone dts480xOutLineClock1AlCurrent dts480xOutLineClock1MBLFunction dts480xOutLineClock1MBLSwitch dts480xOutLineClock1MBLWorldtime © MOBATIME 86 / 120 800652.11...
  • Page 87 (dts480xOutLineRS485DevName) dts480xOutLinesRS485Switch dts480xOutLineTZServerConfigChangedTime dts480xOutLineTZServerMode dts480xOutLineTZServerMCastAddr dts480xOutLineTZServerMCastPort dts480xOutLineTZServerNTPInterval dts480xOutLineTZServerTTL dts480xOutLineTZServerTableInterval dts480xOutLineTZServerEntryInterval dts480xOutLineTZServerTable (1..15) (dts480xOutLineTZTableEntryNumber) dts480xOutLineSwitchFct dts480xOutLineSwitchTimezone dts480xOutLineSwitchProgFile dts480xOutLineSwitchFctChannel dts480xOutLineSwitchFctComb dts480xOutLineSwitchFctLongitude dts480xOutLineSwitchFctLatiitude dts480xOutLineSwitchFctLeadSun1 dts480xOutLineSwitchFctFolSun1 dts480xOutLineSwitchFctLeadSun2 dts480xOutLineSwitchFctFolSun2 dts480xOutLineSwitchFctState dts480xOutLineSwitchInpChan1 dts480xOutLineSwitchInpComb1 dts480xOutLineSwitchInpChan2 dts480xOutLineSwitchInpComb2 dts480xOutLineSwitchInpChan3 dts480xOutLineSwitchInpComb3 dts480xOutLineSwitchInpChan4 © MOBATIME 87 / 120 800652.11...
  • Page 88 © MOBATIME 88 / 120 800652.11...

  • Page 89: Alive Notification [Dts480Xalive]

    1 Bytes 0 = alarm bit was deleted 1 = alarm bit was set dts480xTrapAlMsgErrorTime Unsigned 4 Bytes PC-time in seconds since 946684805 01.01.1970 00:00:00 dts480xTrapAlMsgErrorText Text 59 Bytes Error text Line current too high © MOBATIME 89 / 120 800652.11...

  • Page 90: 10 Description Of The Switch Function

    A maximum of 8 characters are allowed for the file name of the switch program file and its extension is PRG, Prg or prg. Additionally the SwitchEditor project file (mbs3) can be stored on the DTS 480x. © MOBATIME 90 / 120 800652.11...

  • Page 91: Combination Of The Signals

    After starting up the DTS 480x, or after changing the program file, it can take up to 2 min until the switch states to the channel relay are correct. Important: The max. number of signal commands is limited to 15 per minute. © MOBATIME 91 / 120 800652.11...

  • Page 92: A  Connection Diagrams

    * At least needed connections. LAN Connection: Plug: RJ45 Interface: Ethernet, 10/100Mbit half or full duplex Use only shielded cables! USB Connection: Plug: USB-Host Important: Only permitted for the operations with a USB stick! © MOBATIME 92 / 120 800652.11...

  • Page 93: Connections (Rear View) Dts 4801.Masterclock

    Connections (rear view) DTS 4801.masterclock DTS 4801 connections For technical data see in Appendix “I Technical data“ Clamp Connection Description Mains connection phase Mains power input with rubber connector Mains connection earth Break point: by disconnecting the rubber connector See Appendix I, section "Mains power supply"...

  • Page 94: Connections (Rear View) Dts 4802.Masterclock

    28 VDC, max. 400 mA DC output GND Alarm relay Alarm Kontakt, öffnet bei Alarm- Load: 30 W (60 VDC or 1A) or 60 VA (30 VAC or 1A) Alarm relay * At the moment only partly available. © MOBATIME 94 / 120 800652.11...

  • Page 95: Plug-In Spring Terminals

    Connection of GPS 4500, DCF 450 / 4500 or GNSS 3000 white DCF receiver brown Connection of DCF and yellow GPS 4500 GPS receiver green GNSS 3000 according to manual Bx-800813 chap. 9.2 Connection schematics DCF current loop © MOBATIME 95 / 120 800652.11...

  • Page 96: B  Time Zone Table

    South Australia: Adelaide +9.5 Sun. Oct (02:00) Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Yakutsk Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) © MOBATIME 96 / 120 800652.11...
  • Page 97 The Time Zone Table is usually updated as needed. The current table is available for download under Important: the following address: www.mobatime.com  Customer Area  Customer Support  Support Resources  Time Zone Table. In case your device is equipped with a newer version than shown in this manual, the current time zone settings should be checked.
  • Page 98 ETCW. If not changed using MOBA-NMS, it must be updated in accordance with the update instructions (chapter “7.3 Updating applications and configuration via FTP" or 7.5“ Updating applications or configurations via USB) Important: The file names mbsn.tbl and usersn.tbl must be written in small letters. © MOBATIME 98 / 120 800652.11...

  • Page 99: C  Alarm List

    NTP fail (even if only one is available) to “prefer“ (preferred source). Can also occur when reconfiguring time sources or time settings. After restarting the DTS 480x (< 30 min) the alarm can also occur. © MOBATIME 99 / 120 800652.11...
  • Page 100 (Only active with DTS 4802) Error bit30 Not used Error bit31 Not used RS485 line: Device error  for detailed error description see 32-62 Error device 1-31 chapter 6.5.8. (Only active with DTS 4801) © MOBATIME 100 / 120 800652.11...

  • Page 101: D Troubleshooting

    The firmware file needed can be obtained from that office. Information required to contact Device type, part number, production number and serial number: your MOBATIME service. This details are given on the adhesive type label. The following files must be provided for the analysis: All files (in .zip folders, separate for each device) from the...

  • Page 102: E  Serial Telegrams

    (e.g. month: Jan, Feb..). Syntax for the telegram string analogous to the print command in the programming language "C". See chapter E.2 Syntax of the telegram configuration file. © MOBATIME 102 / 120 800652.11...
  • Page 103 Transmission time for the entire telegram: 20 x 1.04 ms = 20.8 ms Name of the telegram file The telegram file name is limited to 8 characters and its extension has to be TEL, Tel or tel, e.g. IF482Std.tel. © MOBATIME 103 / 120 800652.11...

  • Page 104: Syntax Of The Telegram Configuration File

    ;AMF (am/pm flag) (0/1) 1W Text table !AM! ;TMQ (synchronization qual.) (0..255 or A..Z) 1B (see !TQ!) ;SAI (Season) (0..2) 1W Text table !SA! (Win/Sum/UTC) ;AKS (Season change (0/1) 1W Text table !AK! announcement) © MOBATIME 104 / 120 800652.11...
  • Page 105 ;end with the second start the TC has to be set according to the telegram ;length and the transmission format. If TC is set, it will be performed. ;e.g. Telegram start 120ms before the start of the second: !TC!120! ;-------------------------------------------------------------------- © MOBATIME 105 / 120 800652.11...
  • Page 106 ; 1 : 1 = Sunday, 2 = Monday,... 7 = Saturday ; 2 : 6 = Sunday, 0 = Monday,... 5 = Saturday ; 3 : 7 = Sunday, 1 = Monday,... 6 = Saturday ;-------------------------------------------------------------------- © MOBATIME 106 / 120 800652.11...
  • Page 107 2) If a file with the same name is loaded on to the CTC, such as one stored on the CTC, the stored one will be OVERWRITTEN. ;e.g. !EE! @TELEDEF.TEL ;last line ;-------------------------------------------------------------------- ;last line (guarantees a <CR> after the file name) © MOBATIME 107 / 120 800652.11...

  • Page 108: F  Option Irig-B: If 488 Configuration

    IRIG-E "DIEM": 112 077 Technical specifications: Input: MOBALine Output: 600 Ohms galvanically separated: DCF-FSK: Pulse 1kHz / pause 1,25 kHz 2Vp-p IRIG-B: Modulation 1 kHz 2Vp-p / 0,66Vp-p IRIG-E: Modulation 100 Hz 2Vp-p / 0,66Vp-p © MOBATIME 108 / 120 800652.11...

  • Page 109: G  Copyright Notice

    Licence text GPL, BSD and MIT: GPL version 2: http://www.gnu.org/licenses/gpl-2.0.html BSD: http://www.opensource.org/licenses/bsd-license.php http://www.opensource.org/licenses/with-license.php The source code of the open source projects running under GPL can be requested from Moser-Baer AG (support@mobatime.com). Handling costs will be charged! © MOBATIME 109 / 120 800652.11...

  • Page 110: H  Block Diagram

    Alarm 1 in Alarm 2 in Alarm 3 in Alarm 4 in sync RS 232 Terminal RS232 RXD RS232 telegram RS232 TXD RS485 A RS485 /RS485 B clock line (only DTS 4801) alarm Alarm © MOBATIME 110 / 120 800652.11...

  • Page 111: I  Technical Data

    Time zones (see App. B) Up to 80 predefined, 20 programmable entries (PC Software Tool) Network interface 10BaseT / 100BaseTX (IEEE 802.3) Data transmission rate: Auto-negotiation / manual Connection: RJ-45 Only shielded cable is allowed. IP Configuration DHCP, Static IP, IPv4, IPv6 © MOBATIME 111 / 120 800652.11...
  • Page 112 Cable length max. 30 m (not in the 3 m range of a catenary wire (railway)). MOBALine output Alternatively to the impulse clock line or DCF active line DTS 4801.masterclock: 1 line DTS 4802.masterclock: 2 lines: max. current = sum of both lines Current: up to 700 mA eff.
  • Page 113 Impulse line output Alternatively to the MOBALine clock line or DCF active line DTS 4801.masterclock: 1 line DTS 4802.masterclock: 2 lines: max. current = sum of both lines Current: up to 1000 mA impulse current (total) Voltage: 24 VDC (polarized) (depending on power supply) Line modes: 1 min., ½...

  • Page 114: J Index

    67, 80 DCF active 31, 32 Menu Login DCF input 93, 94 Menu structure DCF Ouput MIB Files DCF receiver – connection MOBALine DHCP MOBA-NMS DHCPv6 Multicast 39, 111 Multicast address Display Multicast NTP © MOBATIME 114 / 120 800652.11...
  • Page 115 Version 14, 22 SMTP 56, 112 SNMP 11, 83, 112 W  SNMP – alarm notification Week program SNMP – alive notification World time 29, 39 SNMP – notification World Time Function SNMP – variables © MOBATIME 115 / 120 800652.11...

  • Page 116: K  Connection Table (To Be Filled-In)

    Connection Table (to be filled-in) Line Type Designation Example: Line Type Designation Slave clock line, main building west, 1 floor © MOBATIME 116 / 120 800652.11...
  • Page 117 © MOBATIME 117 / 120 800652.11...
  • Page 118 © MOBATIME 118 / 120 800652.11...
  • Page 119 © MOBATIME 119 / 120 800652.11...
  • Page 120 © MOBATIME BE-800652.11...

This manual is also suitable for:

Dts 4802.masterclock

Table of Contents

Save PDF
