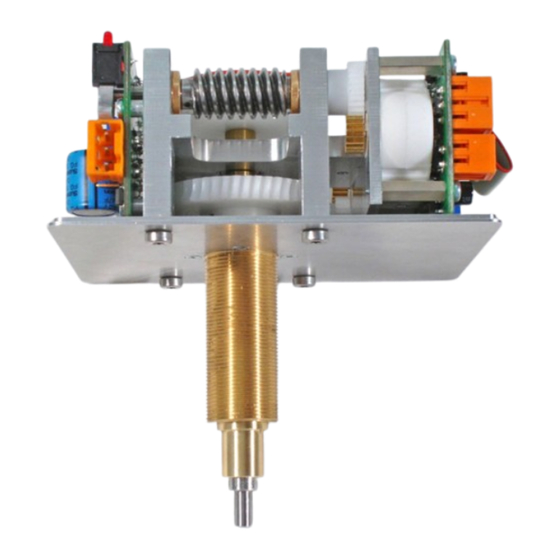

Movement for mobaline, rs485 time code, dcf, msf and gps receiver for outdoor clocks up to 140 cm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Operating Instructions
DMU 140
Movement for MOBALine, RS485 time code, DCF, MSF and GPS
receiver for outdoor clocks up to Ø 140 cm.
Please read these instructions carefully before installation.
© MOBATIME
BE-800514.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMU 140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobatime DMU 140

Summary of Contents for Mobatime DMU 140

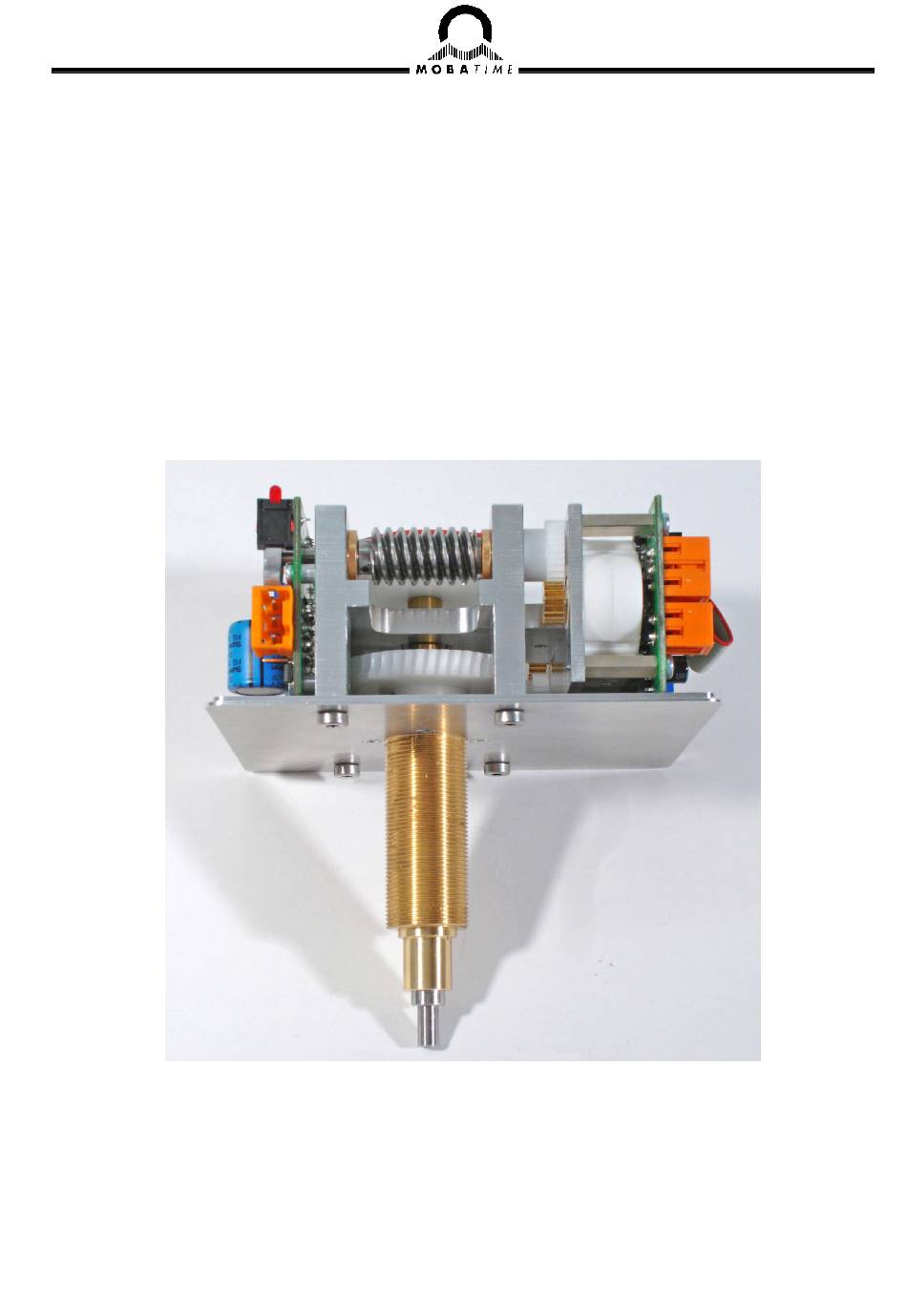

  • Page 1 Installation and Operating Instructions DMU 140 Movement for MOBALine, RS485 time code, DCF, MSF and GPS receiver for outdoor clocks up to Ø 140 cm. Please read these instructions carefully before installation. © MOBATIME BE-800514.05...
  • Page 2 Certification of the Producer STANDARDS The clock movement DMU 140 has been developed and produced in accordance with the EU Standards 89 / 336 / EU References to the Instruction Manual The information in this Instruction Manual can be changed at any time without previous notice.

  • Page 3: Table Of Contents

    Contents Dimensions, definitions ......................4 Installation guidelines .........................5 Installation of DMU 140 clock movements ................5 Installation of hands and commissioning.................5 2.2.1 Hand installation ..........................5 2.2.2 Commissioning and checking hand position ..................5 View and wiring ........................6 Setting the synchronization mode and commissioning............6 2.4.1...

  • Page 4: Dimensions, Definitions

    1. Dimensions, definitions Caution. The DMU 140 is suitable for indoor and outdoor clocks to a max. Ø 140 cm. The hands must be covered by a glass face. The movements cannot be used for a facade clock with unprotected hands.

  • Page 5: Installation Guidelines

    2. Installation guidelines 2.1 Installation of DMU 140 clock movements The dial must be adequately rugged. The installation drill hole must have a diameter of 20 mm. The movements must be mounted vertically. Fig. 2 shows the position of the components.

  • Page 6: View And Wiring

    This is via MOBALine or 10-30 V DC. To ensure DCF/MSF reception is as trouble-free as possible, functional earthing is essential. Power supply via mains power module External 24 V power supply DC IN DC IN Fig. 5 Fig. 6 © MOBATIME 6 / 16 800514.05...

  • Page 7: Receiver Wiring

    Open the clock movements cover cautiously to do so. The jumper is on the pc-board with DIP switches. Replug the X8 jumpers X8 to activate the terminating resistor. Termination disabled (default) Termination enabled Fig. 11 © MOBATIME 7 / 16 800514.05...

  • Page 8: Dip Switches

    = Address 2.4.7 Cascading wiring option The DCF time code can be connected to the next movement via DCF-out. Synchronization in cas- caded movements must be set to GPS (DCF UTC). DCF77 Fig. 13 © MOBATIME 8 / 16 800514.05...

  • Page 9: Function Description

    MOBALine ignores this switch. The running mode is selected via the line mode of the master clock, with half-minute steps becoming minute steps.  Output of a synthetic DCF77 code, when movement is synchronized with DCF77 or MSF 60 (UTC).  Status LED for power supply, DCF impulses and synchronization. © MOBATIME 9 / 16 800514.05...

  • Page 10: Standard Time Zone Table

    Guam, Port Moresby NSW, Victoria: Sydney, Sun. Oct. (02.00) Sun. Apr. (03:00) Canberra, Melbourne Tasmania: Hobart Sun. Oct. (02:00) Sun. Apr. (03:00) Vladivostok Last Sun. Mar. (02:00) Last Sun. Oct. (03:00) Solomon Is. , New Caledonia © MOBATIME 10 / 16 800514.05...
  • Page 11 As usual, the time table is adapted each year. You can download the newest time table from our homepage: Attention:    www.mobatime.com Downloads Moba-Software Time Zone Table. If the delivered device contains a newer version as showed in this manual, it’s recommended to check the time zone entries. © MOBATIME 11 / 16 800514.05...

  • Page 12: Technical Data

    5. Technical data: DMU 140 Synchronization MOBALine, GPS, DCF, MSF, RS 485 Adjustment times Running time to start position Max. 3 minutes MOBALine time to read in Max. 3 minutes DCF or MSF reading in time Max. 6 minutes Readjustment time Max.

  • Page 13: Plug Wiring

    5.1 Plug wiring 5.1.1 RS-485 Termination RS485 /RS485 GND485 100R Fig. 14 5.1.2 DCF In/Out 200mA +Vout DCF in DCFout+ DCFout- Fig. 15 Technical data subject to change without notice. © MOBATIME 13 / 16 800514.05...
  • Page 14 © MOBATIME 14 / 16 800514.05...
  • Page 15 © MOBATIME 15 / 16 800514.05...
  • Page 16 19 chemin du Champ-des-Filles  CH-1228 Plan-les-Ouates/GE Tel. +41 44 802 75 75  Fax +41 44 802 75 65 Tel. +41 22 884 96 11  Fax. +41 22 884 96 90 export@mobatime.com  www.mobatime.com info-d@mobatime.ch  www.mobatime.ch PRODUCED BY...
