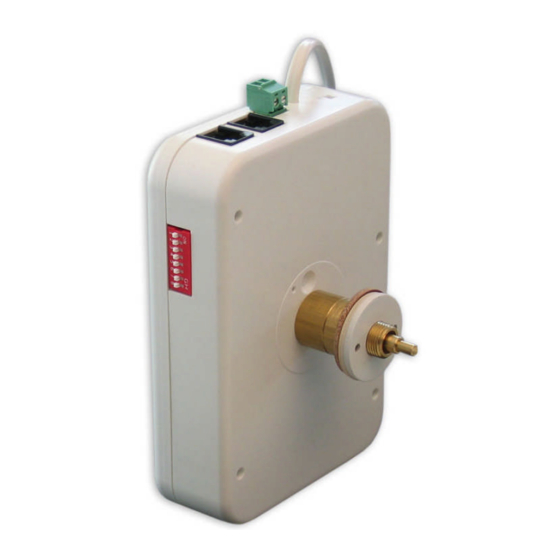

Installation and Operating
BU 190(t) 230
Movement for DCF / MSF time code
Please read this instructions carefully before installation.
© MOBATIME
BE-800603.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BU 190t 230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobatime BU 190t 230

Summary of Contents for Mobatime BU 190t 230

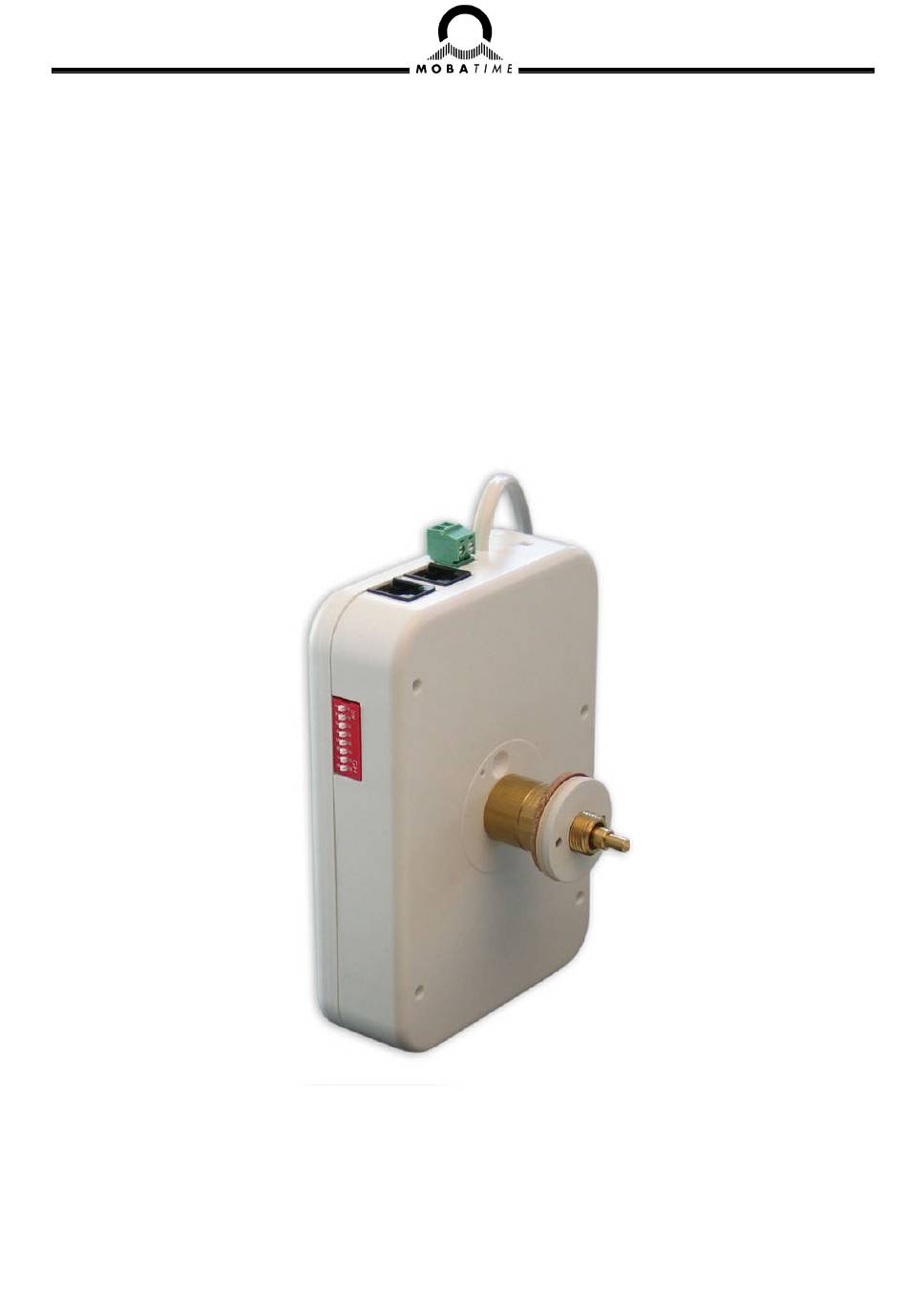

  • Page 1 Installation and Operating BU 190(t) 230 Movement for DCF / MSF time code Please read this instructions carefully before installation. © MOBATIME BE-800603.01...
  • Page 2 The information in this User’s Manual can be changed at any time without previous notice. The current version is available for download on www.mobatime.com – Downloads. This User’s Manual has been composed with utmost care, in order to explain all details in respect of the operation of the product.

  • Page 3: Table Of Contents

    Setting up / Connections......................6 Synchronization with DCF or MSF time code................6 Synchronization with serial time telegram (IF 482)..............7 Connection / cascading ......................7 Serial Telegrams ..........................8 Standard Time Telegram (IF 482) with Local Time ..............8 Technical specification .......................9 © MOBATIME 3 / 12 800603.01...

  • Page 4: Dimensions, Definitions

    1. Dimensions, Definitions Diameter Type Art.-No. 30 - 80 cm Movement: BU 190 230 201404 30 - 80 cm Movement: BU 190t 230 201405 Clock dial Fig. 1 Disc nuts Cover glas Connection to BU 190t 230 BU 190 230...

  • Page 5: Function Description

    (12 o’clock). The hands shall be carefully fixed and tightened on the shafts. Enough space must be provided between the hands. See Fig. 4. The position 12 o’clock must be checked on each movement after the mount- ing (Chap.3.2.2). Fig. 4 © MOBATIME 5 / 12 800603.01...

  • Page 6: Starting-Up And Check Of The Hand Position

    DCF plug has to be connected with the earth - for CET –1 set DIP-switch 6 to ON position potential (functional earth, i.e. clock housing). - for CET +1 set DIP-switch 5 to ON position © MOBATIME 6 / 12 800603.01...

  • Page 7: Synchronization With Serial Time Telegram (If 482)

    DCF 4500 master ant. BU 190(t) 230 230V out 1 BU 190t 230 A/N: 2 00 840.02 BU 190(t) 230 230 V ±10%; 50-60 Hz; 10 m A P/N: 03959665 001 Multipler Option 2 Option 1...

  • Page 8: Serial Telegrams

    1) 'A': Correct time code reception from the transmitter. 'M': No time signal has been received during more than 12 hours (Time will be taken over at 'A' and 'M'). 2) Weekday not evaluated by BU 190(t). 3) Winter, Summer or Local time: Will be checked but not evaluated. © MOBATIME 8 / 12 800603.01...

  • Page 9: Technical Specification

    Max. dial thickness 4 mm 14.5 mm Temperature range -30 ... +70°C Weight 320 g 360 g Standards EN 50121-4, EN 61000-6-3 Savety EN 60950-1, Protection class II www.mobatime.com Subject to change without notice © MOBATIME 9 / 12 800603.01...
  • Page 10 © MOBATIME 10 / 12 800603.01...
  • Page 11 © MOBATIME 11 / 12 800603.01...
  • Page 12 19 chemin du Champ-des-Filles  CH-1228 Plan-les-Ouates/GE Tel. +41 44 802 75 75  Fax +41 44 802 75 65 Tel. +41 22 884 96 11  Fax. +41 22 884 96 90 info-d@mobatime.ch  www.mobatime.ch export@mobatime.com  www.mobatime.com PRODUCTION...
