Summary of Contents for Mobatime HN 60

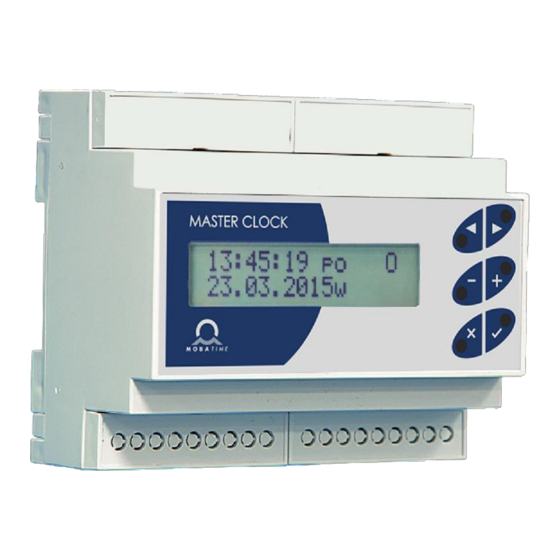

- Page 1 USER MANUAL Mini Master clock HN 60, HN 61 © MOBATIME 1/40 BE-801259.05-HN 60&61master clock...
-
Page 2: Table Of Contents
2.1 Installation environment ....................6 2.2 Installation procedure ...................... 6 2.3 Terminal board connection ....................6 2.3.1 DIN rail variant HN 60/61/60i//61i ..............6 2.3.2 DIN rail variant HN 60m/61m ................7 2.3.3 DIN rail variant HN 60a/61a ................7 2.3.4... - Page 3 11 LOAD CHANNELS ....................... 33 12 TECHNICAL PARAMETERS ....................34 12.1 Technical specifications ....................34 12.2 Power supply, parameters and options ................. 35 13 TIME ZONE TABLE ......................36 14 WARRANTY and REPAIRS ....................39 © MOBATIME 3/40 BE-801259.05-HN 60&61master clock...
-
Page 4: Description
MOBALine (except HN 60i / 61i) • polarized minute impulses • polarized half-minute impulses • polarized second impulses The impulse length, gap length and cycle type can be set for all types of impulse lines. © MOBATIME 4/40 BE-801259.05-HN 60&61master clock... -
Page 5: Other I / O
1.2 Accessories • AD 650, DCF 77.5 kHz radio receiver, for indoor and outdoor placement, standard cable length 10 m (max. 200 m), for HN 60 • GPS antenna for HN 61, cable length 5 m (max 30 m) •... -
Page 6: Installation
Connect the DCF receiver (GPS antenna), slave clock line cables, switching circuit, power cable. • Switch-on the mains power. The current time is displayed on the Master clock 2.3 Terminal board connection 2.3.1 DIN rail variant HN 60/61/60i//61i © MOBATIME 6/40 BE-801259.05-HN 60&61master clock... -
Page 7: Din Rail Variant Hn 60M/61M
2.3.2 DIN rail variant HN 60m/61m 2.3.3 DIN rail variant HN 60a/61a © MOBATIME 7/40 BE-801259.05-HN 60&61master clock... -
Page 8: Terminal Description
+ DCF IN - DCF input for HN 60/ HN 60i / HN 60a / HN 60m + DCF OUT - synthetic DCF output for HN 61 / HN 61i / HN 61a / HN 61m... -
Page 9: Slave Line Connection
PCs, TV and radio receivers or in places surrounded with thick walls or into underground or cellar areas. Fig.: DCF conection © MOBATIME 9/40 BE-801259.05-HN 60&61master clock... -
Page 10: Gps Antenna Connecting
The CH1 terminal (or RELAY 1) serves to control the externally connected equipment. School bells or external equipment can be powered with 24 V DC. Fig .: Connection of school bells Fig .: Connection of external devices with 230 VAC power supply © MOBATIME 10/40 BE-801259.05-HN 60&61master clock... -
Page 11: Connecting The Striking Module
2.8 Connecting the striking module Note: Only for HN 60m / 61m 2.9 Synchronization of slave clocks using DCF current loop © MOBATIME 11/40 BE-801259.05-HN 60&61master clock... -
Page 12: Lcd Display - Information Screens
SYNCHRONIZATION QUALITY information about the receipt and the quality of the DCF or GPS synchronisation signal VERSION information about Master clock model and SW version Button function: switching between information screens return to MASTER screen Note: The button function is different in each screen. © MOBATIME 12/40 BE-801259.05-HN 60&61master clock... -
Page 13: The Master Screen
Enter the date in the dd yy form. Confirm the values set up by pushing the button. Day of the week and DST status are set automatically according to the selected time zone. © MOBATIME 13/40 BE-801259.05-HN 60&61master clock... -
Page 14: The Line Screen
Set slave pulse line time in following format: minute impulse line hh : mm half-minute impulse line hh : mm: 00 or hh : mm : 30 seconds impulse line hh : mm : ss © MOBATIME 14/40 BE-801259.05-HN 60&61master clock... -
Page 15: Channel Screen
MUTE screen - Advance / delay switching before / after audio outpu 3.3.3 Button function: entry to advance / delay, before/after setting audio output (setting is described in chap. 8.3) long press lock / unlock channel © MOBATIME 15/40 BE-801259.05-HN 60&61master clock... -
Page 16: Striking Screen
Functional only if striking is activated in the menu. Displays the time period when striking is off, the type of striking. Button function entry to striking set up menu (setting is described in chap. 10) long press block / unblock striking function © MOBATIME 16/40 BE-801259.05-HN 60&61master clock... -
Page 17: Synchronization Quality Screen
It will be displayed when push gradually the button from the MASTER screen. The value in % indicates the reception quality of the last hour if the synchronization was successful at least once. 3.5.1 DCF 3.5.2 GPS 3.5.3 MSF 3.5.4 WWVB © MOBATIME 17/40 BE-801259.05-HN 60&61master clock... -
Page 18: Version Screen
3.6 VERSION screen This is displayed when push gradually the button from MASTER screen. Button function: entry into service menu - only for service purposes © MOBATIME 18/40 BE-801259.05-HN 60&61master clock... -
Page 19: Main Menu
T parameters hannel selection vie ing editing and type o striking Set parametrs ocal T ine state Illumination Audio o striking Sync T . Mute min. hand mode O set setting © MOBATIME 19/40 BE-801259.05-HN 60&61master clock... -
Page 20: Synchronization
SYNCHRONIZATION The DCF synchronization type is preset for the HN 60 / 60i / 60a clock variants, and the GPS synchronization type for the HN 61 / 61i / 61a clock variants. For HN 60m / 61m, the type of synchronization can be selected. -
Page 21: Set Time Zones
SET TIME ZONES This function is used to set time zones of slave line, channel, local time, and synchronization source. See the Mobatime Time zone table in chapter 12. In the MAIN Menu press the button to select Time Zones. -
Page 22: Slave Line Menu
7.1 First Page Options line type by type of slave clock: for clocks controlled by minute pulses 1/2m for clocks controlled by half minute pulses for clocks controlled by second pulses for clocks controlled by MOBALine © MOBATIME 22/40 BE-801259.05-HN 60&61master clock... -
Page 23: Setting The Line Status
-1.00 seconds, the time on the line is delayed by 1 second compared to the time on the main clock. Shift range -9.99 sec to +9.99 sec. Adjust step by step: sign sign units of seconds tens of milliseconds 0-99 © MOBATIME 23/40 BE-801259.05-HN 60&61master clock... -
Page 24: Channel Setting - Channel Parameters
00:01-15:59 (mm:ss) on / off press to turn on, press to turn off push button the channel is switched on while the button held (default) © MOBATIME 24/40 BE-801259.05-HN 60&61master clock... -
Page 25: Switching Illumination By Calculated Sunrise And Sunset Time
0 ° 00 'to 179 ° 59' E (W) longitude Selection of the channel: CH1, --- CH1, CH2, --- (for MHU 60a / 61a only) Note: the channel cannot be selected if it is already set for manual or mute switching. © MOBATIME 25/40 BE-801259.05-HN 60&61master clock... -
Page 26: Switching Mute Signal
0-99 (0,0 - 9,9 s), advance before audio output (100 ms unit) e.g. 10 means that MUTE turns on a second earlier post 0-99 (0.0 - 9.9 s), delay after audio output (100 ms unit) e.g. 05 means that MUTE switches off 500 ms later © MOBATIME 26/40 BE-801259.05-HN 60&61master clock... -
Page 27: Week Program
Mo, Tu, We, Th, Fri, Sa, Su * day in which the program line will be executed - the day when the program line not be executed © MOBATIME 27/40 BE-801259.05-HN 60&61master clock... -
Page 28: View And Edit Aud Program Audio Recordings
Mo, Tu, We, Th, Fri, Sa, Su * the day in which the program row will be executed - the day when the program row will not be executed Note: Preparation of audio files. © MOBATIME 28/40 BE-801259.05-HN 60&61master clock... - Page 29 • sampling rate: 48 000 Hz • name of file: number from 1 to 999 with suffix av e.g. “25. av” • Place this prepared audio file to USB flash drive, to root directory. © MOBATIME 29/40 BE-801259.05-HN 60&61master clock...
-
Page 30: Striking
This function is used to set the parameters and type of ringing on bells or dulcimers using electric bell strikers. Switching of electric hammers is realized by means of additional module HN..SSR2. By default, striking is disabled. (For HN 60m/61m only) The display shows © MOBATIME 30/40 BE-801259.05-HN 60&61master clock... -
Page 31: Audio Striking
USB flash with default sounds for audio striking is available as a separate item - see accessories for Master clock HN 6x. If necessary, it is possible to prepare your own set of audio files with sounds as described below. © MOBATIME 31/40 BE-801259.05-HN 60&61master clock... - Page 32 5:00 set the type striking; the choice is 1/2, 1/4, 1/1 and off enter the length of the gap between the 1/4 and the hour striking at 1/4 type striking (01-99) © MOBATIME 32/40 BE-801259.05-HN 60&61master clock...
-
Page 33: Load Channels
If the required file is not available, "0" records will be displayed and after pressing button, "nothing to save" will be displayed. Button function save channel records and reset Master clock return to MAIN menu without saving © MOBATIME 33/40 BE-801259.05-HN 60&61master clock... -
Page 34: Technical Parameters
12 TECHNICAL PARAMETERS 12.1 Technical specifications Model HN 60 / 60m HN 61 / 61m HN 60i HN 61i HN 60a HN 61a Mounting on a DIN rail 6 MD 9 MD number ✓ ✓ ✓ ✓ MOBALine Slave clock line... -
Page 35: Power Supply, Parameters And Options
4) the total power supplied to the connected equipment consists of consumption of the secondary line, consumption at the ACCU and VDC terminals; the maximum values of the specified currents cannot be supplied to the load at the same time © MOBATIME 35/40 BE-801259.05-HN 60&61master clock... - Page 36 In case of no mains power is available and masterclock should be switched on, the "Accu connect" jumper can be set temporarily and when an external 12 V accumulator is connected to +ACCU- the masterclock will start up. Once the masterclock is started, the jumper should be removed again. © MOBATIME 36/40 BE-801259.05-HN 60&61master clock...
-
Page 37: Time Zone Table
Port Moresby, Vladivostok Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) Honiara (Solomon Is.), Madagan, Noumea (New Caledonia), Auckland, Wellington Last Sun. Sep. (02:00) Sun. Apr. (03:00) © MOBATIME 37/40 BE-801259.05-HN 60&61master clock... - Page 38 Standard → DST: Time change from Standard time (Winter time) to Summer time DST → Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time. © MOBATIME 38/40 BE-801259.05-HN 60&61master clock...
-
Page 39: Warranty And Repairs
14 WARRANTY and REPAIRS • The HN 60&HN 61master clock meets the requirements of the following standards: • Electrical safety EN62368-1 EMC - EN 55032, EN 55024, EN 50121 – 4 • CE Applied EU directives: • 2014/35/EU (LVD), 2014/30/EU (EMC), 2011/65/EU (RoHS), 2012/19/EU (WEEE) •... - Page 40 © MOBATIME 40/40 BE-801259.05-HN 60&61master clock...
