MOUNTING AND
INSTRUCTION MANUAL
SEM 100/SAM 100
MOBALine movement
© MOBATIME
BE-801073.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOBALine SEM 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobatime MOBALine SEM 100

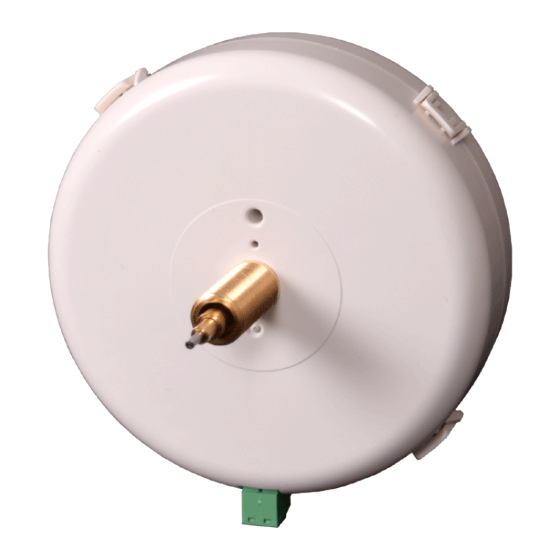

Summary of Contents for Mobatime MOBALine SEM 100

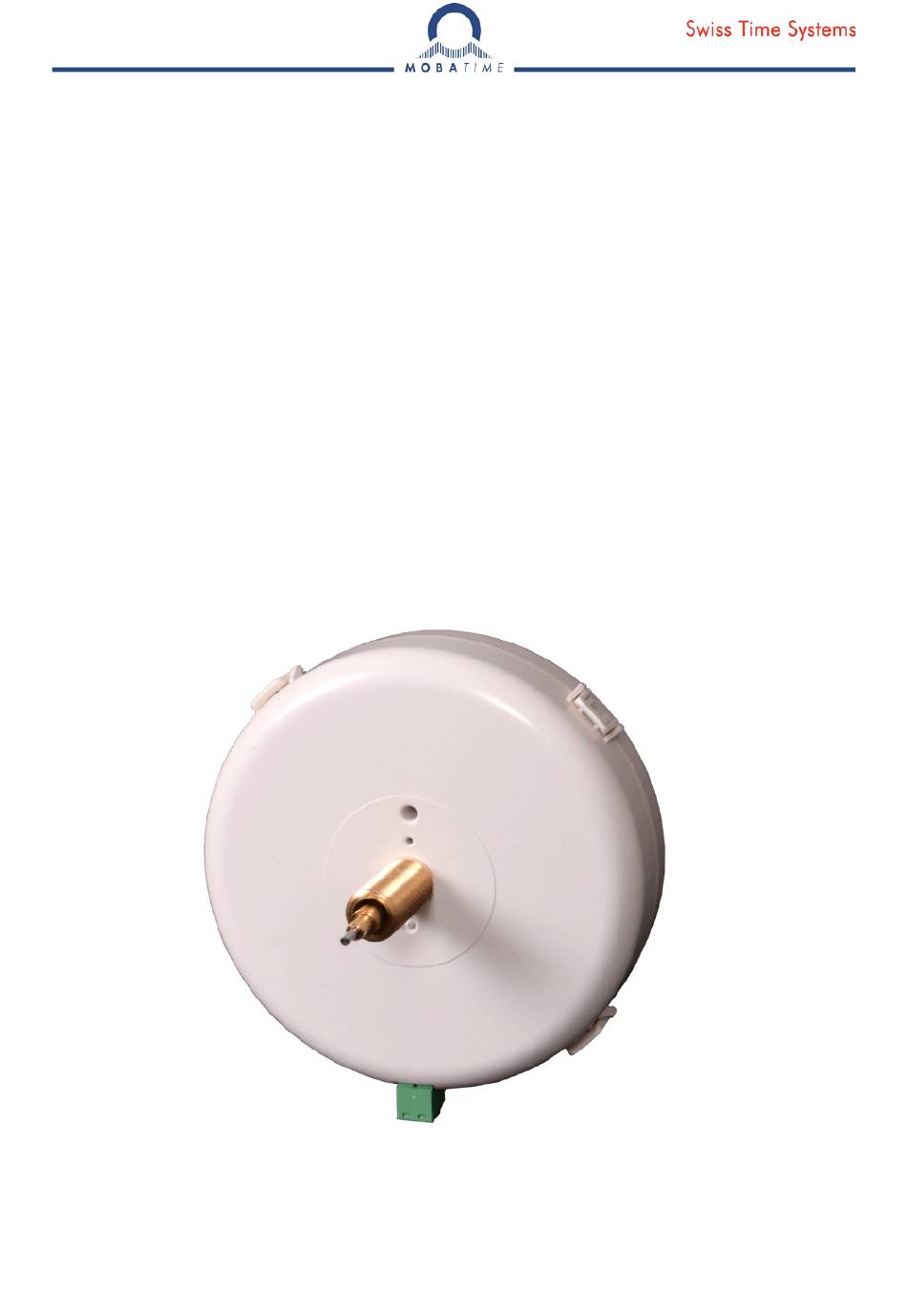

  • Page 1 MOUNTING AND INSTRUCTION MANUAL SEM 100/SAM 100 MOBALine movement © MOBATIME BE-801073.10...
  • Page 2 6. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    Mounting of hands and start-up ......................14 5.2.1 Mounting of hands ................................14 5.2.2 Start-up and checking the hand position ..........................14 Basic settings (Factory settings) ......................15 Time-keeping ............................15 6. Technical data ..........................16 © MOBATIME 3 / 20 801073.10...

  • Page 4: Safety

    • The device is not intended for use by persons (including children) with limited physical, sensory, or mental capacities or a lack of experience and/or knowledge. • Keep packaging such as plastic films away from children. There is the risk of suffocation if misused. © MOBATIME 4 / 20 801073.10...

  • Page 5: Consider The Installation Site

    This device complies with the requirements of the EMC and the Low-voltage Directive. Caution! • This product belongs to Class A in accordance with EN 55022. This equipment can lead to radio interference. In this case, measures must be taken by the user. © MOBATIME 5 / 20 801073.10...

  • Page 6: Maintenance

    Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 6 / 20 801073.10...

  • Page 7: General Information: Introduction

    Device Description in this Manual This instruction manual is for the movements SEM 100, SEM 100t, SAM 100 and SAM 100t. In the following chapters, the designation SEM 100 or movement is used for improved readability. © MOBATIME 7 / 20 801073.10...

  • Page 8: Introduction

    Movement for second, minute and hour hand 118171 SEM 100t Movement for second, minute and hour hand 118172 Movement for minute and hour hand SAM 100 118173 Movement for minute and hour hand SAM 100t 118174 © MOBATIME 8 / 20 801073.10...

  • Page 9: Measurements, Definitions

    Measurements, definitions Diameter Type Art. no. 30 - 100 cm Movement: SEM 100t 118172 30 - 100 cm Movement: SAM 100t 118174 © MOBATIME 9 / 20 801073.10...
  • Page 10 Zifferblatt Scheiben- muttern Deckglas © MOBATIME 10 / 20 801073.10...

  • Page 11: Display And Control Elements

    Change to next minute/second mode (double-click: change to previous mode) Change to next menu: 12:00 position  Minute mode  Second mode Switch to Switch to normal operation 12:00 position >15s Movement is reset to factory settings © MOBATIME 11 / 20 801073.10...

  • Page 12: Menu Layout (V01)

    The current menu position/mode is indicated via the LED blinking pattern and hand positions. After 5 minutes without entry (button push), the movement automatically goes into normal operation. If the master clock dictates the minute resp. second hand mode, the manual mode settings will be overwritten. © MOBATIME 12 / 20 801073.10...

  • Page 13: Clock Id / Id Mode

    The movement can only be returned to normal operation using NMS. For the direct switch from no ID to ID 12 (one double click), the minute hand has to complete one full rotation, which takes several seconds. © MOBATIME 13 / 20 801073.10...

  • Page 14: Mounting And Start-Up

    • If the hand position is incorrect, carefully loosen the hand, adjust and then tighten it again (shaft must not be rotated during this). • If the hand position is correct, hold down the push-button for 5s again. The clock is now ready for operation and sets itself. © MOBATIME 14 / 20 801073.10...

  • Page 15: Basic Settings (Factory Settings)

    12 o'clock position. In case of loss of the DCF active signal (only power supply available) the clock keeps running for 7 days on quartz base and afterwards runs to the 12 o'clock position. © MOBATIME 15 / 20 801073.10...

  • Page 16: Technical Data

    SEM 100: 230 g Weight SAM 100t: 210 g SEM 100t: 250 g Second shaft torque >50 mNm Minute shaft torque >20 mNm Hour shaft torque >20 mNm Hand weight Typically 70 g, max. 140 g (well-balanced) © MOBATIME 16 / 20 801073.10...
