- Page 1 USER MANUAL Economy LED digital clock ECO-M-DC series © MOBATIME 801151.06...
- Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication or part of it in any way. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS- Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
Basic setting – control according to source of synchronization ............. 17 Calculation using MOBALine time zones ....................17 Calculation using Time-zone server MOBATIME .................. 17 Calculation using time zone entries preconfigured by MOBA-NMS software ........17 Calculation according to internal time zone table .................. 18 The clock menu table .......................... - Page 4 11.2 Double sided clock ..........................30 11.3 Cleaning ..............................30 © MOBATIME 4 / 32 801151.06...
-
Page 5: Description

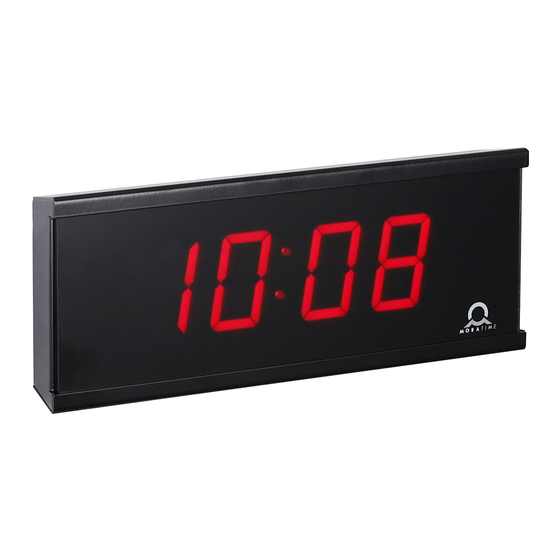

Description The ECO-M-DC series • elegant and very slim digital clocks for displaying time and date • aluminum metal housing, powder coated • high protection degree IP54 as standard for all versions • 7-segment LED display of high luminance provide for excellent readability from various angles of view •... - Page 6 • private options of DHCPv4 and DHCPv6 string for automatic configuration of all clock parameters when connected to LAN • configuration and monitoring using MOBA-NMS software or SNMP protocol • firmware update remotely through the network using the TFTP protocol © MOBATIME 6 / 32 801151.06...
-
Page 7: Assembly
RJ45 jack to the Ethernet cable respectively. • Insert the BATT jumper in order to enable the RTC backup (doesn’t apply to clocks with supercapacitor option). • Mount the plexiglass and bottom cover. 2.2 Assembly diagram © MOBATIME 7 / 32 801151.06... -
Page 8: Double-Sided Clock
• Insert the BATT jumper in order to enable the RTC backup (doesn’t apply to clocks with supercapacitor option). • Connect the cable from Slave clock to the Master clock. • Mount the plexiglass and bottom cover. 2.4 Assembly diagram © MOBATIME 8 / 32 801151.06... -
Page 9: Dimensions
2.5 Dimensions Type Dimension © MOBATIME 9 / 32 801151.06... -
Page 10: Control Elements
RESET reset button jumper BATT backup battery connection jumper ISPE induction programming mode STATE LED status indication POWER LED power indication MDI jumper MDI sync source settings MBLDCF IRIG-B © MOBATIME 10 / 32 801151.06... -
Page 11: Mbl, Mbldcf, Irig And Rs485 Clock Type Operation
After the connection of the digital clock to the line, time and date are adjusted automatically, following the receipt of valid time information. • Setting the tune takes place within at least 5 minutes. © MOBATIME 11 / 32 801151.06... -
Page 12: Slave Clock Controlled By Supervised Rs485
It is necessary to register the clock under the used address in DTS. • The time synchronization starts within a few tens of seconds after start-up. • Failure of slave clock function is signalized by an alarm in DTS. © MOBATIME 12 / 32 801151.06... -
Page 13: Ntp And Poe Clock Operation
NTP request time [s] DNS server 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 1 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 2 0.0.0.0 / 0:0:0:0:0:0:0:0 multicast config address 239.192.54.1 / FF38::EFC0:3601 (FF38::239.192.54.1) alive notification interval [min] configuration port number 65532 © MOBATIME 13 / 32 801151.06... -
Page 14: Network Parameters Assignation By Dhcpv4
Backspace key for correcting typing errors • command help or ? displays help with a command list • command reset resets the clock (changes are written to Flash) • command conf -p displays current parameters from setup menu © MOBATIME 14 / 32 801151.06... -
Page 15: Setting Network Parameters Over Dhcpv6
Alarm notifications are asynchronous messages and are used to inform the manager about the appearance / disappearance of alarms. Alive notifications are sent out periodically to report availability and state of the clock. The interval time can be configured. © MOBATIME 15 / 32 801151.06... -
Page 16: Multicast Mode
65532 time zone client port number 65534 The menu item P8 must be set to value 1. See chapter 7.2.5 for setting the multicast group address in the item P12 submenu. © MOBATIME 16 / 32 801151.06... -
Page 17: Local Time Calculation
Display time and date according to chosen time zone server time zone, incl. daylight saving time This setting is suitable for NTP and PoE digital clocks controlled by MOBATIME NTP servers, which support the time zone server functionality. 5.4 Calculation using time zone entries preconfigured by MOBA-NMS software... -
Page 18: Calculation According To Internal Time Zone Table
9. This setting is useful also for the NTP synchronization when no time zone server is available. If you want to use the zone outside the internal time zone table, follow the “Custom Time Zone” appendix. © MOBATIME 18 / 32 801151.06... -
Page 19: The Clock Menu Table
Software Version r_._ (e. g.: r6.17) • possibility to enter the submenu • Items P7 to P14 available in NTP and PoE variants only • Items P16 to P17 available for option E variants only © MOBATIME 19 / 32 801151.06... -
Page 20: Submenu Ipv6 Address
2001:0db8:0000:0012:0000:0000:0000:1000 MANU Manually set address e. g. fec0:1234:0000:0000:f68e:38ff:fee8:4a13 PrEF Prefix of manuallyset address Range 0 – 128, default 64 GATE Default gateway obtained from autoconfiguration (SLAAC) not yet supported e. g. 2001:0db8:0000:0012:0000:0000:0000:0001 © MOBATIME 20 / 32 801151.06... -
Page 21: Control And Configuration Of The Clock Using Pushbuttons
PB2S increase of the current item by 1 PB2L continuous increase of the current item PB1L+PB2L return into normal display mode, without storage of the data © MOBATIME 21 / 32 801151.06... -
Page 22: Submenu For Network Services Configuration
7.2.4 Manual setting of the default gateway IPv4 address Choose the item P11 in the main menu and push the PB1L button to enter the submenu for setting the default gateway IP address. The item to be set is blinking. © MOBATIME 22 / 32 801151.06... -
Page 23: Submenu For Setting The Ipv4 Multicast Group Address
IP address is stored to the definition of the first NTP server, the other NTP server addresses are cleared including those defined by the NTP server domain names. © MOBATIME 23 / 32 801151.06... -
Page 24: Submenu For Displaying Ipv6 Addresses
• Keep pushing both buttons on the clock frame simultaneously until the display shows C0:00 • Use the PB2 button to set the value behind the colon to 04 • Keep pushing both buttons simultaneously until the display shows FAC1 and the clock resets © MOBATIME 24 / 32 801151.06... -
Page 25: Update Firmware Of Ntp And Poe Version Using Tftpd32 Tool
• after successfully entering the password, check if the indicated firmware version is correct, otherwise it is necessary to repeat the whole procedure • enter the exit command to close the telnet connection, close the tftpd32 window © MOBATIME 25 / 32 801151.06... -
Page 26: Time Zone Table
Port Moresby, Vladivostok Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) Honiara (Solomon Is.), Madagan, Noumea (New Caledonia), Auckland, Wellington Last Sun. Sep. (02:00) Sun. Apr. (03:00) © MOBATIME 26 / 32 801151.06... - Page 27 Time change from Standard time (Winter time) to Summer time DST → Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time. © MOBATIME 27 / 32 801151.06...
-
Page 28: Technical Data
. PoE/PoEclass version cannot be combined with models double sided ECO-M-DC.100x.6 with green, pure green, blue and white display colour 2. Clocks are delivered with disconnected backup battery CR2032 for unlimited battery shelf life, battery must be connected during the installation © MOBATIME 28 / 32 801151.06... -
Page 29: Voltage Range And Electric Current Consumption Of The Lines
Electric current consumption MOBALine 5 – 30 VAC 6 – 34 uA Active DCF 77 +- 12 – 30 V 3 - 7 mA IRIG B 20 mVpp – 2 Vpp 20 uA – 2 mA © MOBATIME 29 / 32 801151.06... -
Page 30: Accessories And Maintenance
• wood screws including dowels for fastening the console 4 pcs • interconnecting cable for second side 1 pc • Allen key for fastening the console 11.3 Cleaning Clean only the clock surface. Use soft rags and antistatic detergents. © MOBATIME 30 / 32 801151.06... - Page 31 © MOBATIME 31 / 32 801151.06...
- Page 32 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
