INSTRUCTION MANUAL

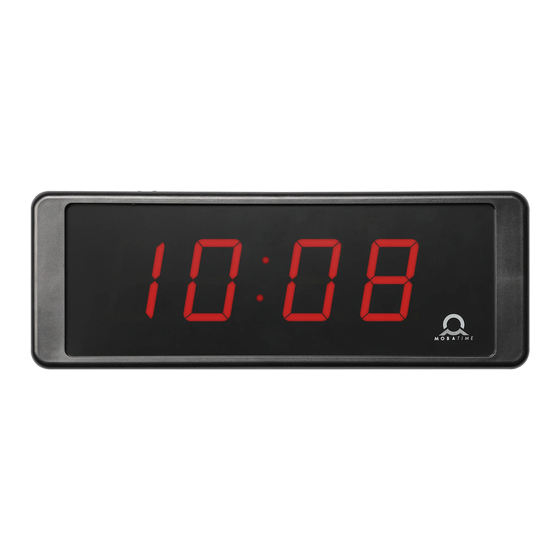

Economy LED digital clock
ECO DC series
MOBATIME
BE-800697.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO DC Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mobatime ECO DC Series

Summary of Contents for Mobatime ECO DC Series

  • Page 1 INSTRUCTION MANUAL Economy LED digital clock ECO DC series MOBATIME BE-800697.09...
  • Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication or part of it in any way. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS- Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    Basic setting – control according to source of synchronization ............. 18 Calculation using MOBALine time zones ....................18 Calculation using Time-zone server MOBATIME .................. 18 Calculation using time zone entries preconfigured by MOBA-NMS software ........18 Calculation according to internal time zone table .................. 19 The clock menu table ..........................
  • Page 4 Standard design of the clock ........................29 11.2 Voltage range and electric current consumption of the lines ..............29 12 Accessories and Maintenance........................30 12.1 Single sided clock........................... 30 12.2 Double sided clock ..........................30 12.3 Cleaning ..............................30 © MOBATIME 4 / 32 800697.09...

  • Page 5: Description

    • Slave clock operation with synchronization by self-setting MOBALine code, or optionally by DCF 77 code or by IRIG-B, mains powered • Precision 0.3 s/day at constant temperature – software trimming • RTC backup with supercapacitor © MOBATIME 5 / 32 800697.09...
  • Page 6 • Configuration / supervision by means of MOBA-NMS software or SNMP protocol • Firmware update remotely through the network using the TFTP protocol • Powered from mains with wide input voltage range 100-240 VAC, optionally from 24 VDC or through PoE (except WiFi) © MOBATIME 6 / 32 800697.09...

  • Page 7: Assembly

    • Connect all the interconnecting cables into the corresponding connectors in the clock’s back side recess. • Hang the clock to the hanging screws. • If the clock has to be tilted down, cut the supporting element on the bottom of the back side accordingly. © MOBATIME 7 / 32 800697.09...

  • Page 8: Assembly Diagram

    Assembly diagram 2.3.1 ECO-DC.57 back side´s recess Single sided clock Double sided clock ceiling suspension mounting wall bracket mounting 2.3.2 ECO-DC.100 back side´s recess Single sided clock Double sided clock © MOBATIME 8 / 32 800697.09...

  • Page 9: Control Elements

    PB1, PB2 control pushbuttons  LINK LED (PoE, NTP only) Ethernet link connected  ACTIVITY LED (PoE, NTP only) Ethernet connection activity  STATE LED state indication  POWER LED indication of power applied © MOBATIME 9 / 32 800697.09...
  • Page 10 AM /PM indication © MOBATIME 10 / 32 800697.09...

  • Page 11: Mbl, Mbldcf And Irig Clock Type Operation

    • After the connection, the time and date are adjusted automatically following the receipt of valid time information. The synchronization takes 6-15 seconds. The colon permanently lit during the time display signalizes the synchronized clock. See the chapter 8 for further description of parameter setting. © MOBATIME 11 / 32 800697.09...

  • Page 12: Ntp And Poe Clock Operation

    0.0.0.0 / 0:0:0:0:0:0:0:0 NTP request time [s] DNS server 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 1 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 2 0.0.0.0 / 0:0:0:0:0:0:0:0 multicast config address 239.192.54.1 / FF38::EFC0:3601 (FF38::239.192.54.1) alive notification interval [min] © MOBATIME 12 / 32 800697.09...

  • Page 13: Network Parameters Assignation By Dhcpv4

    • inserted commands must be confirmed by pushing the Enter key, use the Backspace key for correcting typing errors • command help or ? displays help with a command list © MOBATIME 13 / 32 800697.09...

  • Page 14: Setting Network Parameters Over Dhcpv6

    The following SLAAC options can be processed: [3] Prefix info [5] MTU [24] Route info [25] RDNSS The network administrator must set the SLAAC options on the server accordingly. Assigned parameters can be checked in the P14 submenu © MOBATIME 14 / 32 800697.09...

  • Page 15: Snmp

    65532 time zone client port number 65534 The menu item P8 must be set to value 1. See chapter 8.2.5 for setting the multicast group address in the item P12 submenu. © MOBATIME 15 / 32 800697.09...

  • Page 16: Wifi Clock Operation

    –? displays help for the command conf parameters • command wifi-n displays the wireless network setting • command wifi-? displays helpfor wifi parameters • it is necessary to end telnet by command exit © MOBATIME 16 / 32 800697.09...
  • Page 17 Example of setting network parameters using telnet – WPA and DHCPv4: • command wifi –s mobatime set network name (SSID) of new wireless network • command wifi –w 7 set version of used coding on PEAP • command wifi–u eapuser set user name for EAP authentication to “eapuser”...

  • Page 18: Local Time Calculation

    Display time and date according to chosen time zone server time zone, incl. daylight saving time This setting is suitable for NTP and PoE digital clocks controlled by MOBATIME NTP servers, which support the time zone server functionality. Calculation using time zone entries preconfigured by MOBA-NMS...

  • Page 19: Calculation According To Internal Time Zone Table

    10 – current definition. This setting is useful also for the NTP synchronization when no time zone server is available. If you want to use the zone outside the internal time zone table, follow the “Custom Time Zone” appendix. © MOBATIME 19 / 32 800697.09...

  • Page 20: The Clock Menu Table

    • Items P7 to P14 available in NTP, PoE and WiFi variants only • Item P15 available in WiFi variant only • Items P16 to P17 available for option E variants only © MOBATIME 20 / 32 800697.09...

  • Page 21: Submenu Ipv6 Adres

    First address received from DHCPv6 e. g. 2001:0db8:0000:0012:0000:0000:0000:1000 MANU Manually set address e. g. fec0:1234:0000:0000:f68e:38ff:fee8:4a13 PrEF Prefix of manuallyset address Range 0 – 128, default 64 GATE Default gateway obtained from autoconfiguration (SLAAC) např. 2001:0db8:0000:0012:0000:0000:0000:0001 not yet supportred © MOBATIME 21 / 32 800697.09...

  • Page 22: Control And Configuration Of The Clock Using Pushbuttons

    The display shows the following: The item to be adjusted is now blinking The options for the parameter setup are shown in the clock menu table (chap. 7). Function of the pushbuttons in the setup menu mode © MOBATIME 22 / 32 800697.09...

  • Page 23: Submenu For Network Services Configuration

    The item to be set is blinking. By pushing PB2S, the adjusted value is increased in steps of 1; by pushing the PB2L button, the value will be continuously increased. The display shows the following: © MOBATIME 23 / 32 800697.09...

  • Page 24: Manual Setting Of The Default Gateway Ipv4 Address

    Switch to the next digit or octet respectively by pushing the PB1S button. Octets are marked by letters A, b, C and d. After the last octet setting, set the constant x which determines the interval of synchronization in seconds. © MOBATIME 24 / 32 800697.09...

  • Page 25: Submenu For Displaying Ipv6 Addresses

    • Keep pushing both buttons on the clock frame simultaneously until the display shows C0:00 • Use the PB2 button to set the value behind the colon to 04 • Keep pushing both buttons simultaneously until the display shows FAC1 and the clock resets © MOBATIME 25 / 32 800697.09...

  • Page 26: Update Firmware Of Ntp And Poe Version Using Tftpd32 Tool

    • after successfully entering the password, check if the indicated firmware version is correct, otherwise it is necessary to repeat the whole procedure • enter the exit command to close the telnet connection, close the tftpd32 window © MOBATIME 26 / 32 800697.09...

  • Page 27: Time Zone Table

    South Australia: Adelaide +9.5 Sun. Oct (02:00) Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Vladivostok Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) © MOBATIME 27 / 32 800697.09...
  • Page 28 Time change from Standard time (Winter time) to Summer time DST → Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time. © MOBATIME 28 / 32 800697.09...

  • Page 29: Technical Data

    Electric current consumption 5 – 30 VAC 6 – 34 uA MOBALine +- 12 – 30 V Active DCF 77 3 - 7 mA 20 mVpp – 2 Vpp 20 uA – 2 mA IRIG B © MOBATIME 29 / 32 800697.09...
  • Page 30 4 pcs • interconnecting cable for second side 1 pc • Allen key for fastening the console 12.3 Cleaning Clean only the clock surface. Use soft rags and antistatic detergents. Don’t use synthetics. © MOBATIME 30 / 32 800697.09...
  • Page 31 MOBATIME BE-800697.09...
  • Page 32 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
