INSTRUCTION MANUAL

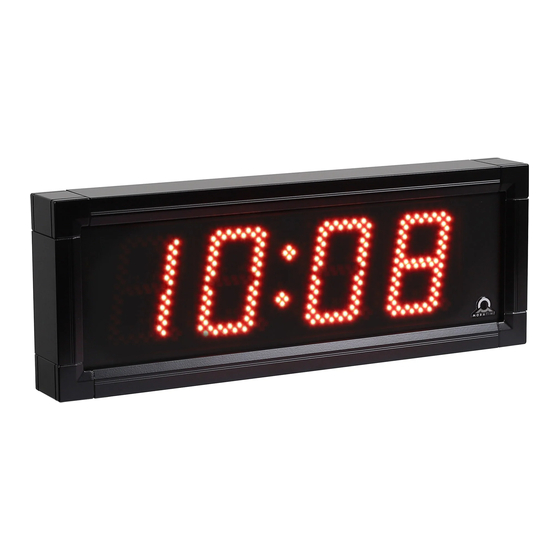

In- and Outdoor Digital Clock DSC Series
© MOBATIME
BE-800584.07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobatime DSC Series

Summary of Contents for Mobatime DSC Series

  • Page 1 INSTRUCTION MANUAL In- and Outdoor Digital Clock DSC Series © MOBATIME BE-800584.07...
  • Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    Control of the stopwatch using IR remote control ................... 32 The stopwatch menu ..........................32 Setting of initial time for counting down ....................33 Switching contact ........................... 33 Stopwatch menu table ..........................34 Local time calculation ..........................36 © MOBATIME 3 / 56 800584.07...
  • Page 4 10.4.2 Synchronization only – P5 mode 2 and 4 ..................39 10.5 Slave clock controlled by MOBATIME serial code, MOBALine, Active DCF code or IRIG-B ....40 10.6 Slave clock controlled by IF482 over RS232 or RS485 ................. 40 10.7 Slave clock controlled by supervised RS485 ..................

  • Page 5: Description

     autonomous TCXO time base, with the possibility of synchronization using the following: DCF 77 radio signal, one-minute 24 V pulses, the MOBATIME serial code, MOBALine, RS 232, RS 485, IRIG-B or GPS;  configuration / monitoring via MOBA-NMS is possible;...
  • Page 6  keyboard for stopwatch control, connected via 5 m cable  remote IR controller for clock set up and stopwatch control On request  internal relay – relay can switch for specified duration, when the stopwatch in the countdown mode reach the zero © MOBATIME 6 / 56 800584.07...

  • Page 7: Installation

     configure the Line type jumper according to used synchronisation signal (applies only for DCF, MOBALine, Serial MOBATIME code, polarized impulse line or IRIG-B);  mount back the connector cover;...

  • Page 8: Double-Sided Clock Up To Dsc.320

    Observe the right polarity where necessary;  configure the Line type jumper according to used synchronisation signal (applies only for DCF, MOBALine, Serial MOBATIME code, polarized impulse line or IRIG-B);  apply the power and check if the display works correctly;...

  • Page 9: Mechanical Drawing

    Mechanical drawing 2.4.1 Single-sided clock up to DSC.320 2.4.2 Single-sided clock DSC.500 mounting frame mounting eye (removable after montage) Place for inserting of the key Place for inserting of the key © MOBATIME 9 / 56 800584.07...

  • Page 10: Double-Sided Clock Up To Dsc.320

    2.4.3 Double-sided clock up to DSC.320 © MOBATIME 10 / 56 800584.07...

  • Page 11: Connectors And Control Elements

     LED indication of powering  RELAY – JP27 (optional)  jumper DC Out / DCF Out – JP17 Note: The placement of the particular connectors and control elements is different for the DSC.100 clocks. © MOBATIME 11 / 56 800584.07...

  • Page 12: Function Of The Plug Connectors

    Function of the plug connectors  LINES, DC/DCF OUT – JP1 time signal inputs: The DCF/GPS receiver, polarized impulse line, MOBALine, MOBATIME serial code, IRIG-B, power supply output: DC OUT 12–40 VDC or passive DCF current loop output  TEMP – JP2 connection of the temperature sensor(s) ...

  • Page 13: Connection Of The Cable Ends

    Connection of the cable ends TEMP wire connection – 1 or 2 thermometers CTRL wire connection Cables arrangement © MOBATIME 13 / 56 800584.07...

  • Page 14: Control Of The Clock Using Keyboard Or Pushbuttons

    1 PB2S continuous increase of the current item PB2L Menu for the setting of the clock parameters The entry into the parameter setup menu is done by pushing the PB2L button. © MOBATIME 14 / 56 800584.07...

  • Page 15: Submenu For User-Specific Setting Of Time Constants For Data Switchover

    PB1L pushbutton. The item to be set is blinking. By pushing the PB2S button, the adjusted value is increased in steps of 1, by pushing the PB2L button, the value will be continuously increased. © MOBATIME 15 / 56 800584.07...
  • Page 16 Enter the day of the month. Push PB1S. Enter the month in which the daylight saving time begins. Push PB1S. The display shows the following: Adjust the hour at which the daylight saving time ends. Push PB1S. © MOBATIME 16 / 56 800584.07...
  • Page 17 Push PB1S. The display shows the following: Enter the week in which the daylight saving time ends. Push PB1S. Enter the day of the week at which the daylight saving time ends. © MOBATIME 17 / 56 800584.07...

  • Page 18: Submenu For Network Services Configuration

    Switch to next digit or octet respectively by pushing the PB1S. Octets are marked by letters A, b, C By pushing the PB1L button, the entered values are stored and the clock returns to the menu item P20. © MOBATIME 18 / 56 800584.07...

  • Page 19: Manual Setting Of The Subnet Mask

    PB1S button. Octets are marked by the letters A, b, C and d. By pushing the PB1L button, the entered values are stored and the clock returns to the menu item P23. © MOBATIME 19 / 56 800584.07...

  • Page 20: Submenu For The Setting Of The Ntp Unicast Synchronization

    IP address is stored to the definition of the first NTP server, the other NTP server addresses are cleared including those defined by the NTP server domain names. © MOBATIME 20 / 56 800584.07...

  • Page 21: Control Of The Clock Using Ir Remote Control

    The + pushbutton increase of the value adjusted, in steps of 1 The – pushbutton decrease of the value adjusted, in steps of 1 Holding down the + button continuous increase of the value set up © MOBATIME 21 / 56 800584.07...

  • Page 22: Menu For The Setting Of The Clock Parameters

    Pushbuttons 0–9 entry of the corresponding numerical value Note: During entering the numbers in the octets of the IP addresses the editing to the next digit moves automatically. © MOBATIME 22 / 56 800584.07...

  • Page 23: Submenu For User-Specific Setting Of Time Constants For Data Switchover

    The item to be set is blinking. Symbols on the display: change to summer time; entry of the hour at daylight saving begins shift back; entry of the hour at daylight saving ends © MOBATIME 23 / 56 800584.07...
  • Page 24 Week 1. – 4.,L (the last one), P (last but one) and H (first after 15 day in the month) Days of the week 1. – 7. (Mo – Su) Month 1. – 12. © MOBATIME 24 / 56 800584.07...

  • Page 25: Submenu For Network Services Configuration

    0 for disabling it. Switch to the next parameter – SNMP communication support by pushing the >>. The display shows the Sn: 1. Set value 1 for enabling the SNMP support or value 0 for disabling it. © MOBATIME 25 / 56 800584.07...

  • Page 26: Manual Setting Of The Ip Address Of The Clock

    Octets are marked by letters A, b, C and d. By pushing OK, the entered values are stored and the clock returns to the menu item P22. By pushing ESC, the clock returns to P22 without saving. © MOBATIME 26 / 56 800584.07...

  • Page 27: Submenu For Setting The Multicast Group Address

    IP address is stored to the definition of the first NTP server, the other NTP server addresses are cleared including those defined by the NTP server domain names. © MOBATIME 27 / 56 800584.07...

  • Page 28: The Clock Menu Table

    0 - 64, A (automatically) synchronization source Type of 1 - 10, A (automatically) synchronization auto detection, applicable for: DCF, the Mobatime serial source code, MOBALine, WTD, IRIG-B, NTP or GPS autonomous operation without synchronization synchronization by DCF signal the MOBATIME serial code...
  • Page 29 NTP and PoE: unicast – network param. defined manually WiFi: wireless network defined by user, IP address set manually NTP and PoE: unicast – network param. defined by DHCP WiFi: wireless network defined by user, IP address assigned by DHCP © MOBATIME 29 / 56 800584.07...
  • Page 30 Unicast NTP addr Uc* setting of NTP unicast server address SW version r_._(e.g.: r1.15) * possibility to enter the submenu. Items P19 to P24 available in NTP and WiFi variants only © MOBATIME 30 / 56 800584.07...

  • Page 31: Control Of The Stopwatch Via Keyboard

    Data order 1/100 second <Minute>:<Second>.<Hundredths of second> 1 second <Hours>:<Minutes>:<seconds>. 1 minute <Hours>:<Minutes> 1 day <Days> By pushing the PB1L button, the entered values are stored and the clock returns to the “Stopwatch” display mode. © MOBATIME 31 / 56 800584.07...

  • Page 32: Control Of The Stopwatch Using Ir Remote Control

    © MOBATIME 32 / 56 800584.07...

  • Page 33: Setting Of Initial Time For Counting Down

    It is possible to control an external device such as sound devices. There is normally open contact (NO), normally closed contact (NC) and common contact (COM) on the relay port (JP27) available. © MOBATIME 33 / 56 800584.07...

  • Page 34: Stopwatch Menu Table

    Counter reset (to zero), or return to a preset (PB1L) time followed with counter stop Triggering the counter (PB3S) HOLD Stopping the counter (PB1S) Resetting the counter or return to a preset (PB1L) time, with counter stop © MOBATIME 34 / 56 800584.07...
  • Page 35 S0: 2;3;4 Format Max. Min. Min. Max. 1/100 second 59:59.99 00:00.00 -9:59.99 59:59.99 MM:SS.HS 1 second 99:59:59 00:00:00 -9:59:59 99:59:59 HH:MM:SS 99:59 00:00 -9:59 99:59 1 minute HH:MM 1 day 9999 0000 0000 9999 DDDD © MOBATIME 35 / 56 800584.07...

  • Page 36: Local Time Calculation

    Selection of the Timezone-server time zone Display time and date according to chosen Timezone-server time zone, incl. daylight saving time This setting is suitable for NTP digital clocks controlled by MOBATIME NTP servers which support the Timezone-server functionality. © MOBATIME 36 / 56...

  • Page 37: Calculation Using Timezone Entries Preconfigured By Moba-Nms Software

    Displayed time and date calculation is based on the internal time zone table or on the user–specific time zone parameters. See the chapter 15 with actual Time zone definition table. © MOBATIME 37 / 56 800584.07...

  • Page 38: Non-Network Clock Operation

    Configure the jumper JP11 according to table (chapter 2.7.) if the source of synchronization is DCF signal, Mobatime serial code, polarized impulse line, MOBALine or IRIG-B. Choose the item P4 in main MENU (chapter 5) and set the type of synchronization. The auto detection mode (P4:A), when the type of synchronization signal is set automatically, is applicable for DCF signal, Mobatime serial code, MOBALine, IRIG-B and WTD.

  • Page 39: Slave Clock Controlled By Synchronizing Impulses

    In case of the line fault the clock displays the right time information based on its own quartz time base. When the normal operation of the line resumes, the clock synchronizes with the incoming pulses. © MOBATIME 39 / 56 800584.07...

  • Page 40: Slave Clock Controlled By Mobatime Serial Code, Mobaline, Active Dcf Code Or Irig-B

    In case of Active DCF code set the menu item P4 to value 12, otherwise use the value A.  The time setting with using the MOBATIME serial code or Active DCF code takes place within at least 3 to 4 minutes, for MOBALine and IRIG-B within 6 to 15 seconds.

  • Page 41: Connecting The Slave Displays Through Rs485

    Items P14 – P17 are set automatically to 9600 baud, 8 bits, even parity, 1 stop-bit. In case of communication problems it is possible to lower the communication speed. The modification of the items P14-P17 is necessary to proceed in all connected displays identically. © MOBATIME 41 / 56 800584.07...

  • Page 42: Ntp Clock Operation

    [234] SNMP manager address [43] or [224] Additional options (refer to document BE-800793) The network administrator must configure the DHCP options accordingly. Assigned parameters can be checked in the submenu of items P20 to P22. © MOBATIME 42 / 56 800584.07...

  • Page 43: Manual Setting Through Setup Menu

    The Hyperterminal application can be used as an alternative to telnet. It is necessary to activate the “Send line ends with line feeds” and “Echo typed characters locally” in the Properties -> Settings -> ASCII setup window. © MOBATIME 43 / 56 800584.07...

  • Page 44: Snmp

    65532 time zone client port number 65534 The menu item P19 must be set to value 1. See chapter 4.2.7 for setting the multicast group address in the item P23 submenu. © MOBATIME 44 / 56 800584.07...

  • Page 45: Wifi Clock Operation

    NTP time synchronisation. This period also takes place at the beginning of every hour. Example of setting network parameters using telnet:  command conf –l mobatime set network name of new wireless network  command conf –w 4 set version of used coding on WPA2 for new wireless network ©...
  • Page 46 –s 255.255.255.0 set subnet mask of the clock on 255.255.255.0  command conf –g 192.168.0.254 set gateway of the clock on 192.168.0.254  command exit ends telnet and writes changes into Flash © MOBATIME 46 / 56 800584.07...

  • Page 47: Testing Mode, Parameter Reset

    Using the PB2 or + button on IR set the value behind the colon to 04  Keep pushing simultaneously both clock PCB buttons or the DISP button on IR, until the display shows FAC1 and clock makes reset © MOBATIME 47 / 56 800584.07...

  • Page 48: Update Firmware

    After entering the password, check if the firmware version is correct, if it isn’t, it is necessary to repeat the whole procedure.  Close the telnet window and end the program tftpd32 with the command exit. © MOBATIME 48 / 56 800584.07...

  • Page 49: Time Zone Table

    Beijing, Chongqing, Hong kong, Singapore, Taipei, Urumqi, Irkutsk Tokyo, Osaka, Sapporo, Seoul, Yakutsk Gambier Island South Australia: Adelaide +9.5 Sun. Oct (02:00) Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Magadan, Vladivostok © MOBATIME 49 / 56 800584.07...
  • Page 50 Nuuk, Last Sat. Mar. (22:00) Last Sat. Oct. (23:00) Qaanaaq,Greenland Qaanaaq, Greenland Sun. Mar. (02:00) Sun. Nov. (02:00) Western Australia: Perth Caracas -4.5 CET standard time Santiago, Chile Sun. Oct. (00:00) Sun. Mar. (00:00) © MOBATIME 50 / 56 800584.07...
  • Page 51 Time change from Standard time (Winter time) to Summer time DST  Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time. © MOBATIME 51 / 56 800584.07...

  • Page 52: Engineering Data

    180 double-sided 580x191 800x191 900x260 1280x260 1320x350 1810x350 1490x410 2170x410 2300x640 3350x640 D.B version x 165 x 165 x 165 x 165 x 165 x 170 x 170 x 180 x 180 x 180 © MOBATIME 52 / 56 800584.07...

  • Page 53: Voltage Range And Electric Current Consumption Of The Lines

    +- 12 – 30 V 10 – 18 mA MIN, CODE (on request) +- 30 – 60 V 10 – 18 mA IRIG B 20 mVpp – 2 Vpp 20 uA – 2 mA © MOBATIME 53 / 56 800584.07...

  • Page 54: Accessories

    TP LAN - temperature sensor with Ethernet interface, power supply 5 VDC, cable between sensor and interface 3 m  SK - keyboard for stopwatch control, cable 5 m  REL - internal relay © MOBATIME 54 / 56 800584.07...

  • Page 55: Cleaning

     The following circumstances are excluded from the guarantee: - inappropriate handling or interventions - chemical influences - mechanical defects - external environmental influences (natural catastrophes)  Repairs during and after the guarantee period are assured by the manufacturer. © MOBATIME 55 / 56 800584.07...
  • Page 56 © MOBATIME BE-800584.07...
