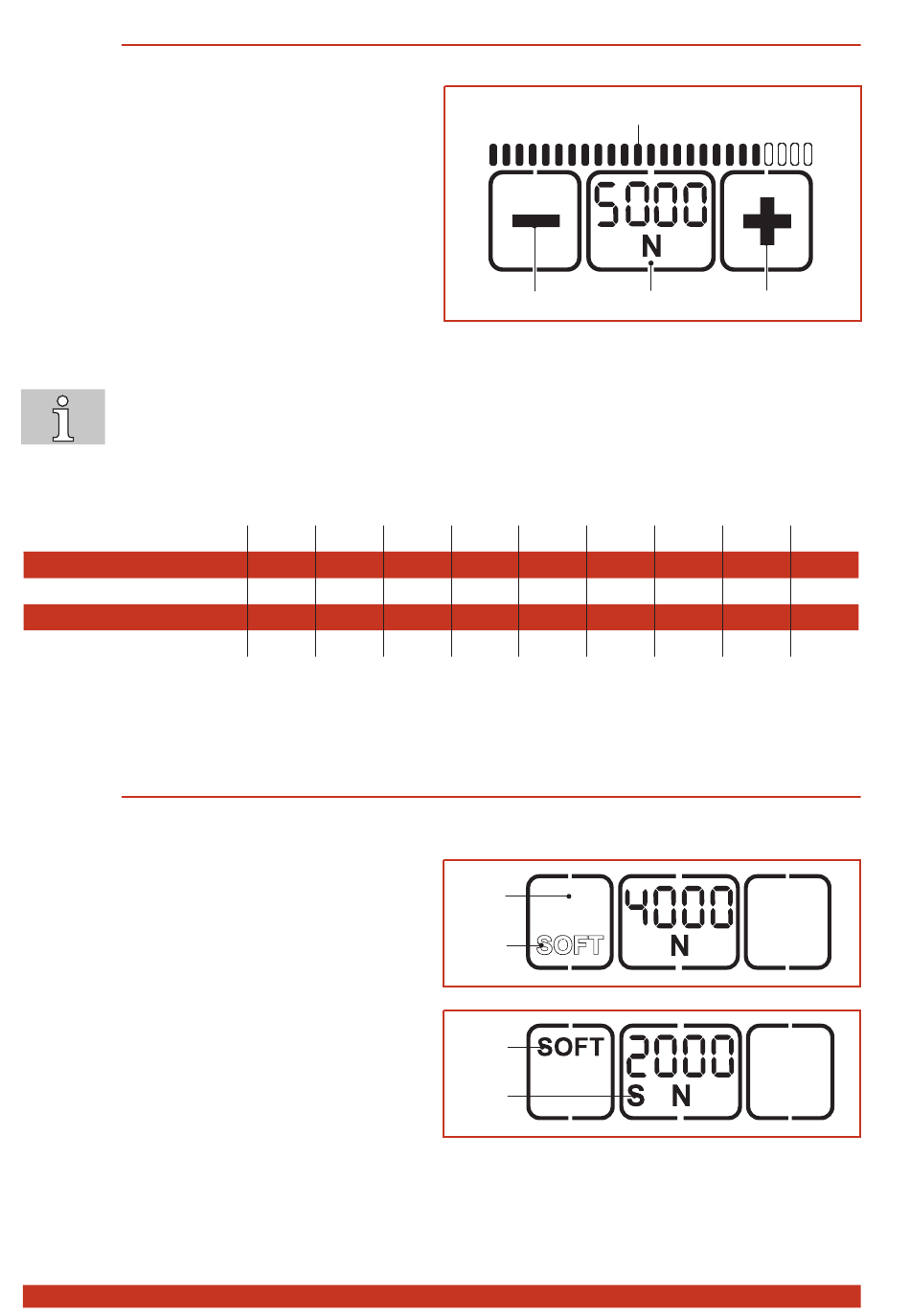

Setting strap tension

The set tension force is displayed continuously when the tool is ready for operation.
► Press "Tension force" button (2).
– The set tension force flashes for 5 sec-
onds.
– The + (1) and – (3) buttons appear.
– Unused displays disappear.
► Press the + (1) or – (3) button until the desired
tension force is displayed.
– The status indicator bar (4) shows the set
tension force in relation to the possible
maximum value.
► Save: Press the "Tension force" button (2) or
wait for 5 seconds.
● Switch between display in "N" or "lbf": Press the flashing "Tension force" button (2) for
two seconds.
● Every time the button is pressed an acoustic signal confirms the action.
● The tension force is displayed continuously when the tool is operational.
● Setting soft tension (Section 4.4).
BXT3-32:
Standard:
Soft
(rounded values)
* N = Newton, lbf = pound-force per square inch
4.4

Setting soft tension

When soft tension is set the tension wheel starts more slowly and the tension force is reduced. This
prevents excessive soiling of the straps.
► Press "Soft" button (1).
– The soft mode is deactivated when the
"SOFT" display (2) changes position and
is shown outlined.
► Press "Soft" button (1).
The soft mode is activated when the
–
"SOFT" display (3) changes position and
is shown in bold.
– The displayed tension force is reduced
correspondingly.
– On the left under the tension force an "S"
(4) also appears.
14 of 26
1 2
N* 3000 3500
lbf* 675 785
N 1000 1500
lbf 225 335
SIGNODE BXT3-32
3
3 4 5
4000 4500 5000
900 1000 1120
2000 2500 3000
450 560 675
1
2
3
4
4
2 1
6 7 8
5500 6000 6500
1240 1350 1460
3500 4000 4500
785 900 1000
V 04.21_EN
9
7000
1570
5000
1120
