Preparing For Operation And Settings; Battery - Signode BXT3-32 Operating Instructions Manual

4

Preparing for operation and settings

4.1

Battery

For detailed information, see the separately enclosed operating instructions for the battery and the
charger.
WARNING
Exclusively use Bosch batteries and chargers as described in this manual (Section
3.3). Use of other batteries/chargers can result in injury or fire. To avoid the risk of personal
injury or fire, read the battery charger operating instructions prior using the charger and
battery.

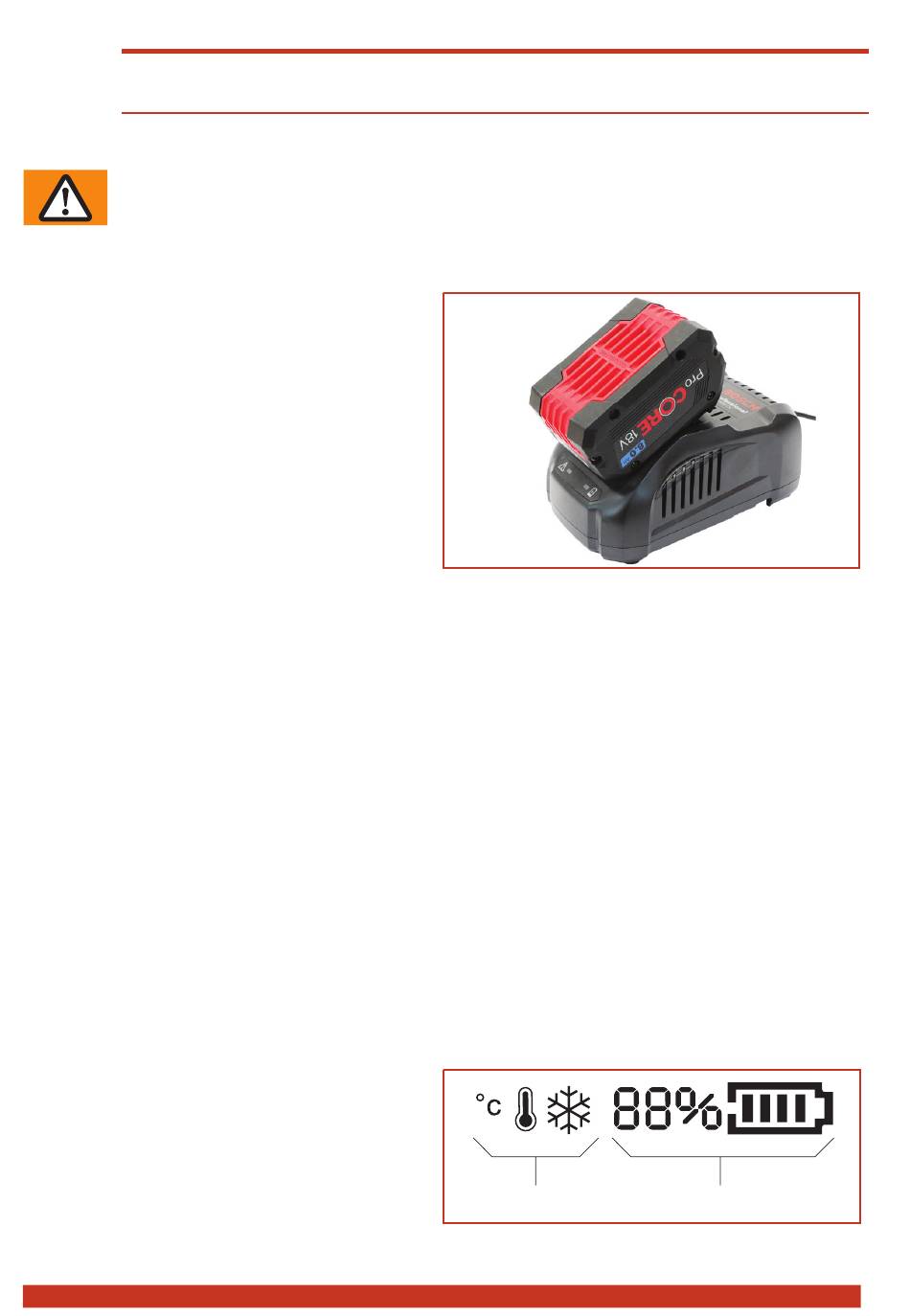

4.1.1 Charging the battery
► Connect charger to mains.
– Green LED illuminates (charger ready for
use).
► Insert battery in charger.
– Green LED flashes: Battery is being
charged.
– Green LED illuminates continuously:
Battery is fully charged.
– Red LED illuminates continuously:
Battery temperature outside charge-
temperature range.
– Red LED flashes: see operating instructions of charger.
● Charging time: Charging of empty battery:
approx. 70–80 min. = 100% charging capacity
approx. 55–70 min. = 80% charging capacity
● Ideal battery temperature during charging process: 15–40 °C (59–104 °F)
● Avoid battery temperatures below 0 °C (32 °F) and over +45 °C (113 °F) during the charging pro-
cess.
● The battery can be charged at any time, regardless of the charge status.
4.1.2 Inserting/removing battery in/from tool
► Inserting the battery: Insert the charged battery into the tool. The unlock button must engage in the
second step (in the first step the battery is held in place in the tool, but without electrical contact).
– The displays on the operating panel illuminate.
● If the tool is not used for approx. two minutes the display changes into sleep mode. Cancelling
sleep mode: Lift rocker lever.
● If the tool is not used for a long period (days) the battery must be removed from the tool and
charged/stored in the battery charger.
► Removing the battery: Press the unlock button and remove the battery at the same time.
4.1.3 Checking the charge status
► LED display "Battery charge status" on oper-
ating panel, with battery inserted:
– The charge status is shown in % and by a
progress bar (1)
– Below 10% minimum charge (battery must
be charged)
– The information symbols (2) only appear if
a corresponding situation is occuring (Section 6.8).
12 of 26
2
SIGNODE BXT3-32
1
V 04.21_EN
