Front Panel Features And Cabling - Extron electronics ShareLink Pro 2000 Setup Manual

ShareLink Pro 2000 • Setup Guide (Continued)
Reset button and LED
F
LAN port
— Use an Ethernet cable to connect a network switch, hub, router, or PC to this female RJ-45 port. This port can
G
also be used for Power over Ethernet (PoE+).
Default IP settings:
IP address: 192.168.254.254
Subnet mask: 255.255.255.0

Front Panel Features and Cabling

CONFIG
WINDOW
e
A A B B

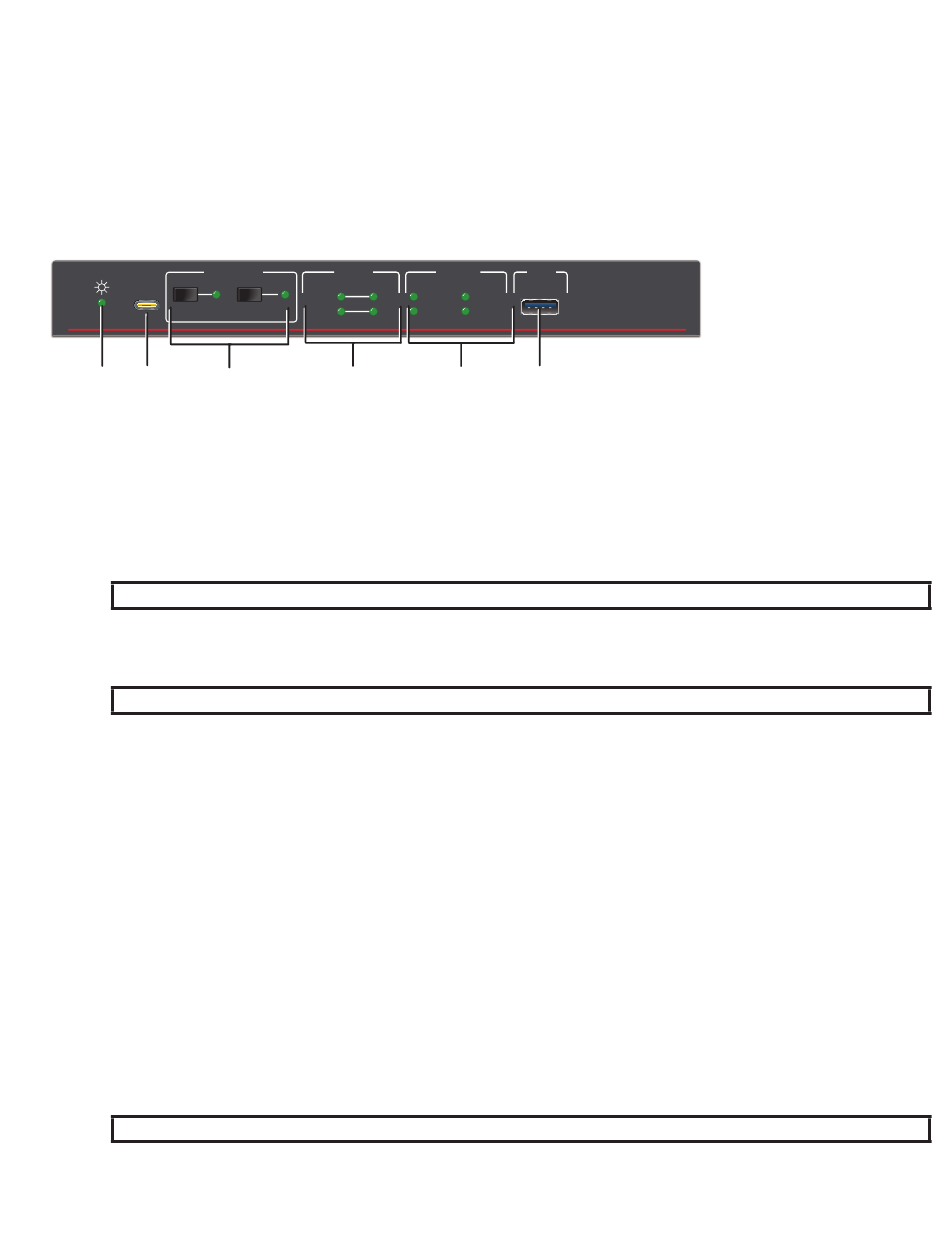

Figure 4. ShareLink Pro 2000 Front Panel
INPUT OUTPUT
POWER Power LED indicator
A
12V
3.0 A MAX
Config USB port
B
HDMI
HDMI/CEC
HDMI input selection buttons
C
These modes determine how the HDMI input is presented on the output (see below for details).
A A B B C C
HDMI Window button – Activates HDMI window mode, which displays the HDMI input source in addition to
•
or alongside any content currently being shared by client devices.
NOTE: Maximum output resolution for this mode is 1080p @ 60Hz.
HDMI Pass-Through button – Activates HDMI pass-through mode, which routes the HDMI input signal
•
directly to the HDMI output unaltered. In this mode, neither the status bar nor decoder input streams are
shown on the output.
NOTE: Maximum output resolution for this mode is 4K @ 60Hz.
Input LED indicators
D
HDMI Signal LED – Lights green when an HDMI signal is detected.
•
Decoder Signal LED – Lights green when one stream is detected. Flashes green when more than one
•
stream is detected at the same time.
HDMI HDCP LED – Lights green when the source signal is encrypted. Turns off when input signal is not
•
encrypted or when HDCP authorization is disabled.
Decoder HDCP LED – Lights green when the decoder source signal is encrypted. Turns off when decoder
•
source signal is not encrypted or when HDCP authorization is disabled.
Output LED indicators
E
HD Win – Lights green when HDMI source is active on the output in HDMI window mode. Lights amber if
•
HDMI pass-through mode is activated after originally being in window mode.
Decoder – Lights green when at least one stream is active on the output. Lights amber if HDMI
•
pass-through mode is activated after at least one stream was active on the output.
Standby Screen – Lights green when the standby screen (see
•
output. Lights amber if HDMI pass-through mode is activated while the ShareLink Pro output displays the
standby screen.
NOTE: The standby screen images are displayed only when HDMI and decoder sources are not active.
HD Pass – Lights green when the HDMI source is active on the output in pass-through mode.
•
USB port — Connect the Extron WFA 100 Wi-Fi Miracast adapter to this port. This adapter enables anyone to share content
F
from a device running Windows 10 without installing any software (see the ShareLink Pro 2000 User Guide). This port can also
be used for USB peripherals when using ConferenceShare (see the ConferenceShare User Guide at www.extron.com).
2
— Use this button to reset the device (see the ShareLink Pro 2000 User Guide for details).
DHCP: Off
DNS address: 0.0.0.0
INPUT
HDMI INPUT
HDMI DECODER
SIGNAL
PASS-THROUGH
HDCP
C C D D
AUDIO
— Lights green when the unit is powered on.
LINE IN LINE OUT
L R L
(future use)
— Use these buttons to select between HDMI window mode and pass-through mode.
D D E E
—
—
Gateway IP address: 0.0.0.0
Link speed and duplex level: autodetected
OUTPUT USB
SS 5G
900mA
HD WIN HD PASS
STANDBY
DECODER
SCREEN
F F
E E
R RESET
F F
ShareLink Pro 2000
PoE+
G G
figure 5
on the next page) is active on the
