Atdec AWMS-3-13714 Installation Manual page 5

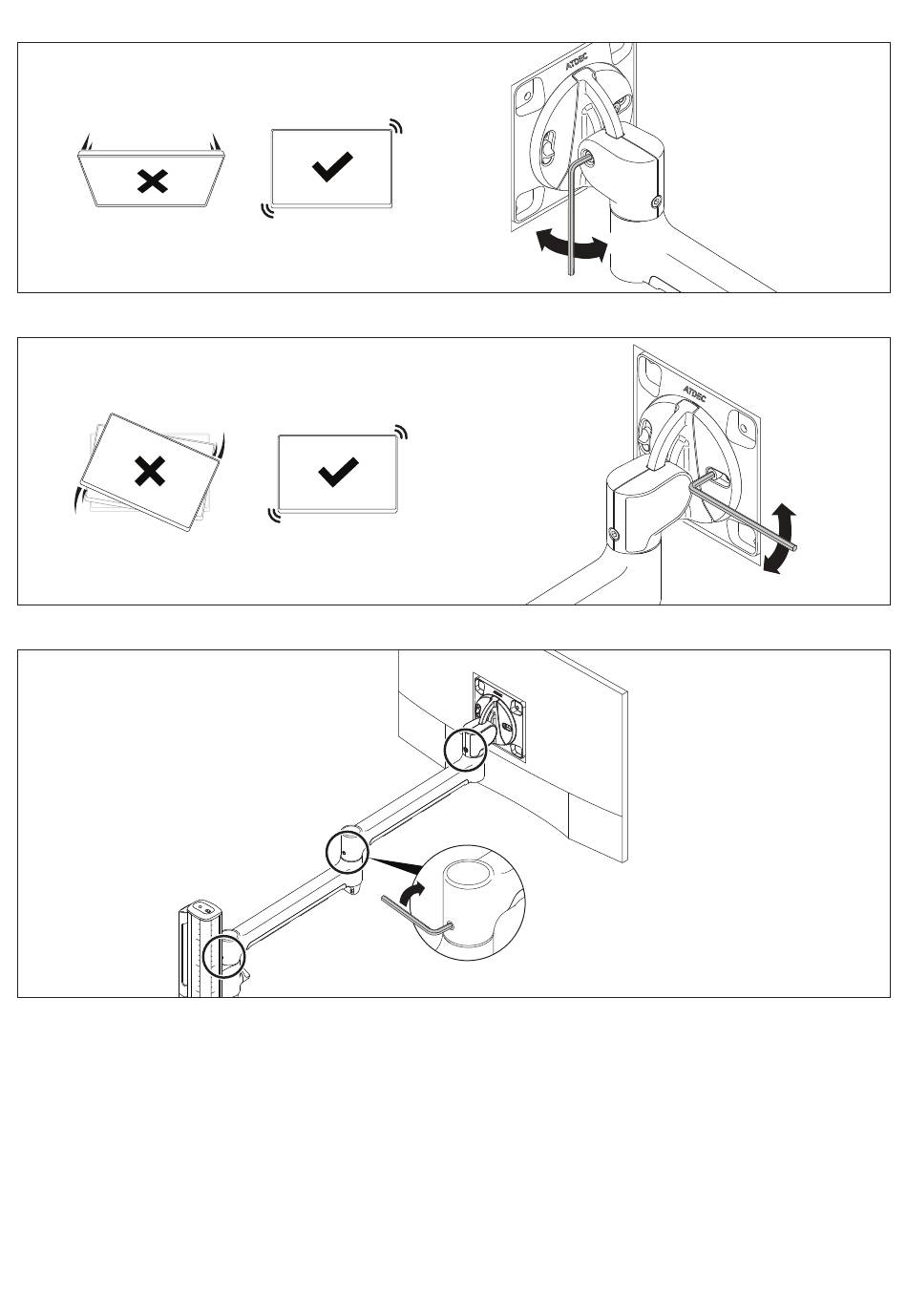

7. (OPTIONAL) Adjust tilt tension
7.1 If required, adjust the tilt tension using the 4mm hex key.
DROOPS FORWARD
8. (OPTIONAL) Adjust rotation tension
8.1 Adjust the rotation tension using 4mm hex key.
Adjustment may only be required for ultrawide monitors.
DRIFTS
9. (OPTIONAL) Adjust joint tension
9.1 Use the 4mm hex key to adjust the tension
of the pivot joints on the arm.
HOLDS POSITION
HOLDS POSITION
TIGHTEN
LOOSEN
NOTE: Support monitor
while adjusting.
LOOSEN
TIGHTEN
DO NOT OVERTIGHTEN
Increasing tension only
stiffens movement and cannot
lock off arm movement.
AWMS-3-13714 Page 5 of 6
