Atdec AWMS-3-13714 Installation Manual page 4

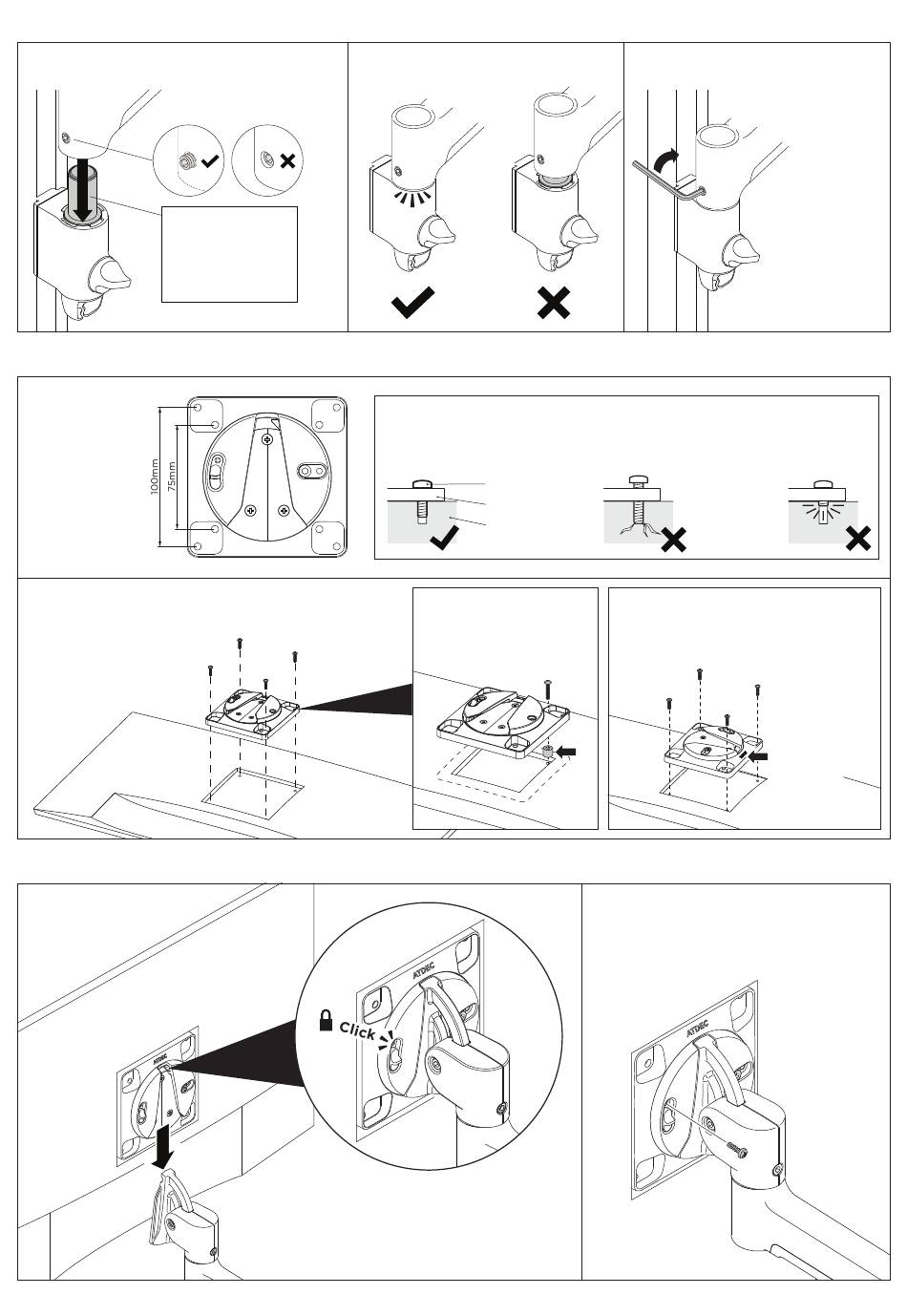

4. Attach arm onto channel clamp
4.1 Push lower link onto shaft.
IMPORTANT
Ensure plastic
sleeve is fitted
on post clamp.
5. Attach VESA head to monitor
5.1 Check VESA
mounting
compatibility
of monitor.
5.2 Attach VESA head onto monitor
with provided screws. (Alternatively,
use fasteners specified by the
monitor manufacturer.)
6. Attach monitor to arm
6.1 Fit monitor onto arm.
4.2 Ensure arm is fully pushed
onto shaft.
NOTE: Ensure screw length suits the monitor VESA mounting holes.
OK
VESA Screw
VESA Plate
Monitor
NOTE: Recessed
75x75 VESA interfaces
will require a Spacer
Kit (sold separately)
NOTE: VESA Head
will automatically
latch onto the tilt link.
4.3 Tighten joint screw.
Too long
TIP! To allow monitor to be rotated
upside down, mount VESA head in
the alternate orientation shown.
6.2 OPTIONAL SECURITY SCREW
If desired, once monitor is attached to
the arm, install the security screw which
disables the release switch.
AWMS-3-13714 Page 4 of 6
NOTE:
Check
the arm
rotation is
smooth after
tightening.
Too short
NOTE:
Logo
position
