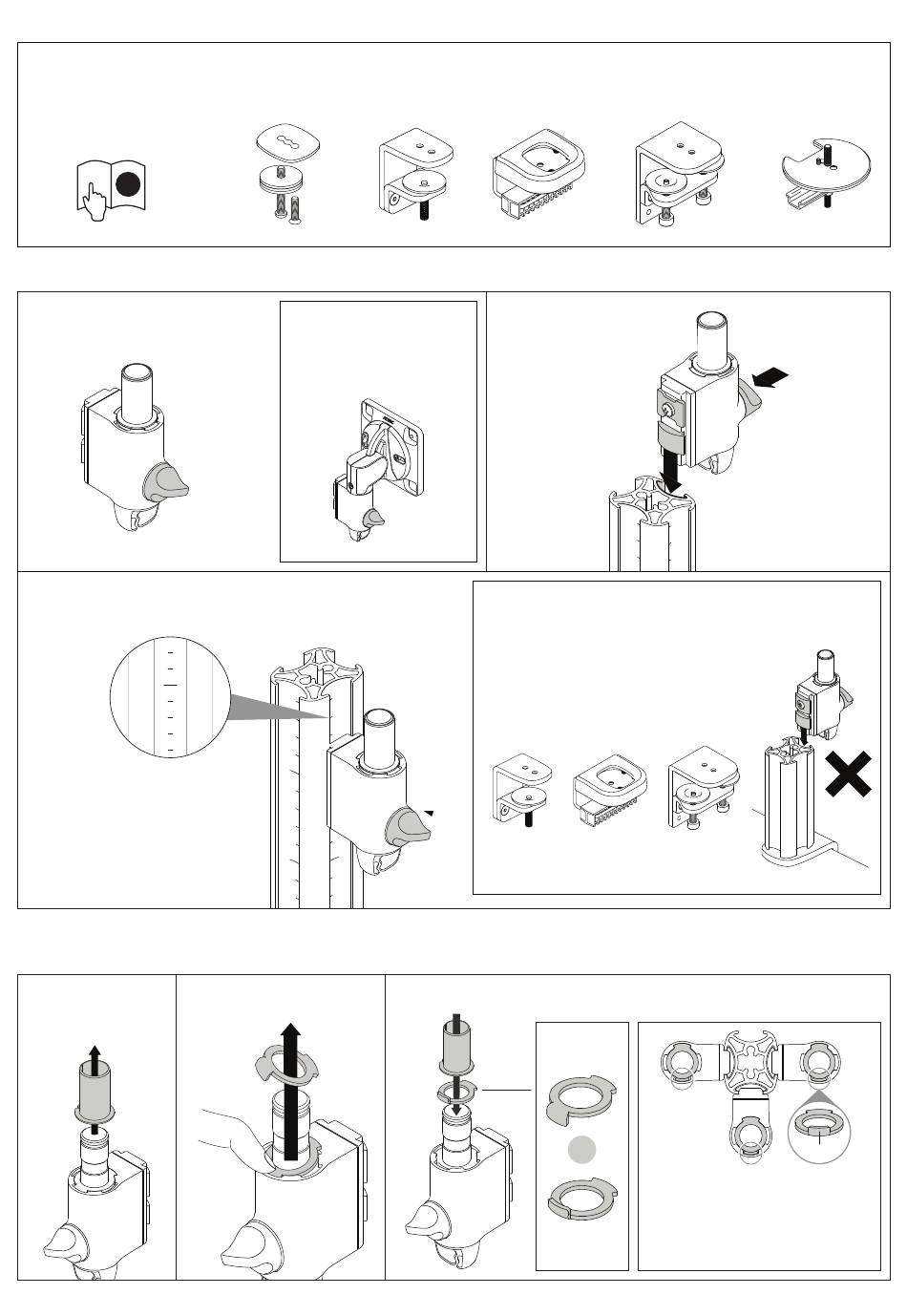

Atdec AWMS-3-13714 Installation Manual page 3

1. Attach post to fixing
1.1 Follow the installation
guide provided with
your fixing to attach it
to the post and fit it to
the worksurface.
i
2. Attach channel clamp to post
2.1 Ensure knob is undone.
2.3 Hold clamp in desired position on channel and turn
knob to lock in place.
Use guide marks on post
channels as a reference for
setting the height of each arm.
NOTE: Additional adjustments
may be required once
monitors are installed.
3. (OPTIONAL) Set arm rotation to 180°
NOTE: Rotation is set to 360° by default.
3.1 Remove plastic
sleeve from
channel clamp.
BOLT
THROUGH
AWM-FB
TIP: AWM-A13T Monitor
Arm can be attached to
post as shown below -
no need to disassemble!
3.2 Remove rotation ring.
2. Lift
1. Press
F CLAMP C CLAMP
AWM-FF AWM-FC
2.2 Slide channel
clamp into channel.
NOTE: Do not mount monitor arm on rear
channel post when using the following
desk clamps:
AWM-FF
3.3 Place rotation ring in desired position and replace plastic sleeve.
HEAVY DUTY
F CLAMP
AWM-FH
AWM-FH
AWM-FC
Default
Position
360°
OR
NOTE: Rotation ring placement
180° depends on the position of the
clamp on the post. The tag on
Flipped
the ring should always face
Position
toward the user.
AWMS-3-13714 Page 3 of 6
GROMMET
CLAMP
AC-GC
Push knob to
aid insertion
Tag
