A M P R E S E A R C H P O W E R S T E P

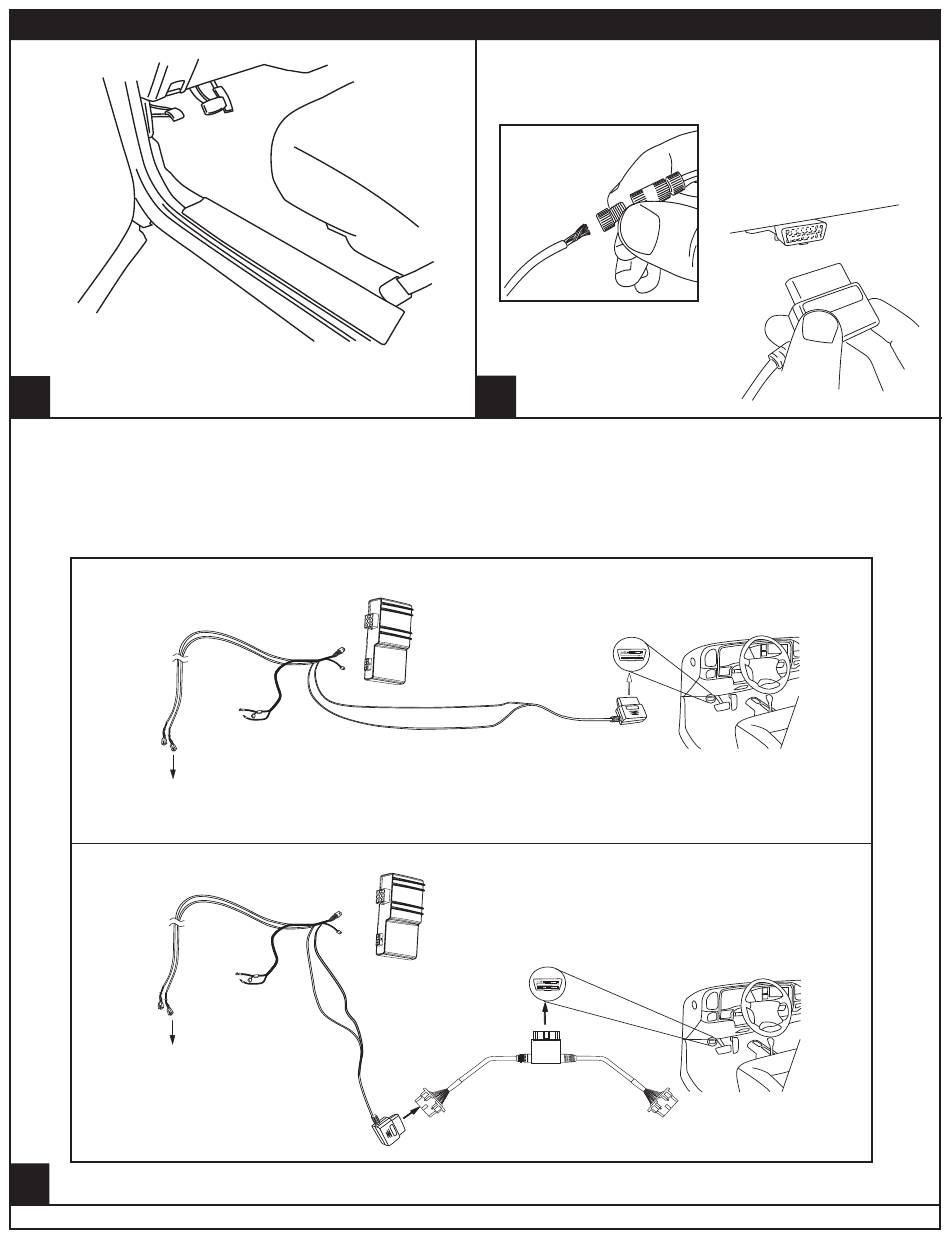

Open driver door and remove sill plate and kick
10
11
panel.
OBD II install: Use Supplied Posi Twist connectors to attach the Plug and Play Module to the
Harness. Attach matching colors on the harness to the wires on the module. Plug in module to
OBD II port on the vehicle. Secure harness with supplied tie wraps.
Note: If the OBD II pass thru harness (76404-01A) was purchased see install sheet supplied in packaging. The
pass through harness allows for an open port for other accessories. See below for a brief description.
To Powerstep
Motors
To Powerstep
Motors
15
12
www.amp-research.com
To Vehicle
Power (12V)
To Vehicle
Power (12V)
Powerstep
Connection Module
– F O R D S U P E R D U T Y
T M
Wire OBD II connector with Posi-Splice and
plug into port.
11
Powerstep
Control Module
Powerstep
Connection Module
14
Pass-Through Harness Option
Powerstep
Control Module
Vehicle Port
Vehicle Port
Pass-Through Harness
(pin-topin at each terminal)
7/10
Vehicle Port
Direct to Port Option
New Vehicle Port
(replaces original port)
IM76234 rev 11.20.19
