HOMCOM A91-180 Assembly & Instruction Manual page 15

22
24
9
24
20
11
26

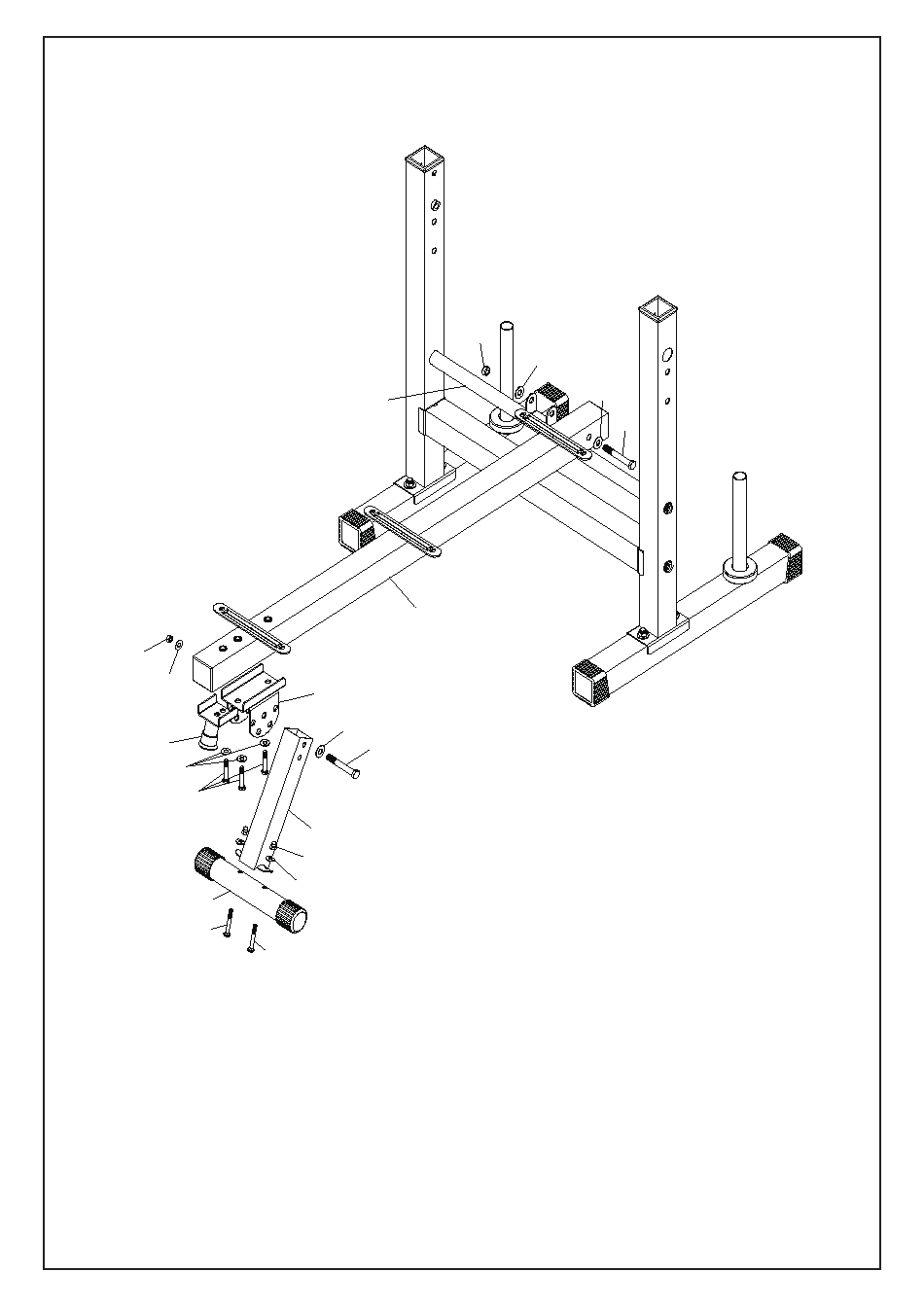

Step 3:
1,Fix Front Stabilizer（11）to Connect Tube(5)and secure with two Carriage Bolt M8*60（
26）,two Arch Washerφ8（25）and two Cap Nut M8（23）.
2,Fix Front Support Tube（9）and Front Adjust Tube（10）to Main Tube（1）and secure
with three Flat Washer Ø10（24）and three Hex Screw M10*50（20）.
3,Fix Connect Tube（5）to Front Adjust Tube（10）and secure with two Flat Washer Ø10
（24）,one Nylon Nut M10（22）and one Hex Screw M10*65（31）.
4,Fix Main Tube（1）to Backrest Adjustable Rod（6）and secure with two Flat Washer
Ø10（24）,one Nylon Nut M10（22）and one Hex Screw M10*70（31）.
ASSEMBLY
6
1
10
24
31
5
23
25
26
22
24
24
31
15
