Chapter 2: Jumpers and Connectors

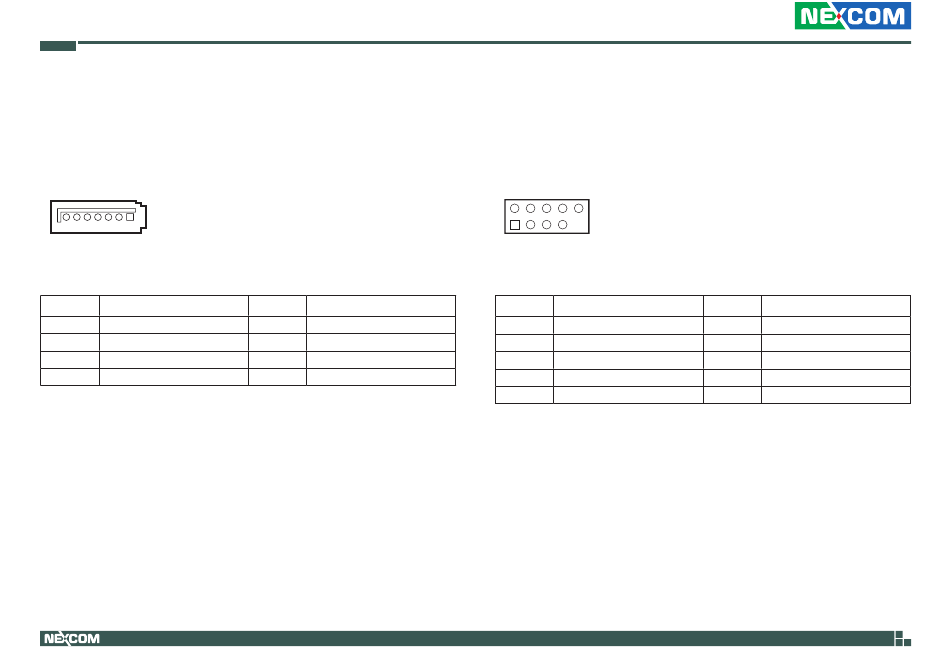

Serial ATA 6.0Gb/s Connector 4
Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA6G_4
7
1
Pin
Definition
1
GND
3
RSATA_TXN4
5
RSATA_RXN4
7
GND
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
RSATA_TXP4
4
GND
6
RSATA_RXP4
USB 2.0 Connectors
Connector type: 2x5 10-pin header
Connector location: USB1213
2
10
1
Pin
Definition
1
+5V_USB
3
USB2_DN13
5
USB2_DP13
7
GND
9
17
Pin
Definition
2
+5V_USB
4
USB2_DN12
6
USB2_DP12
8
GND
10
NC
NEX 913 User Manual
