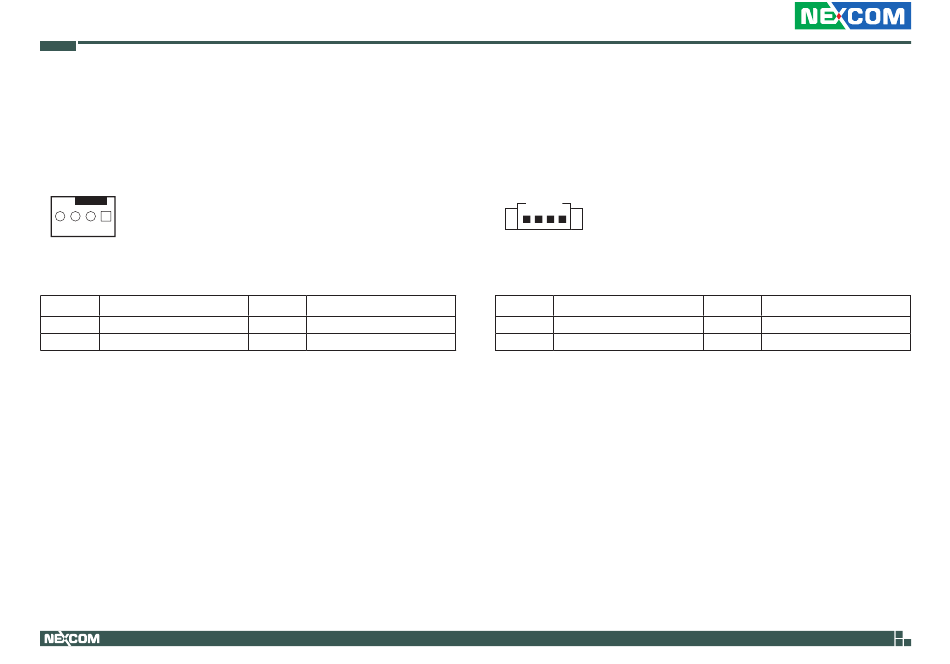

Chapter 2: Jumpers and Connectors
Chassis Fan Connectors
Connector type: 1x4 4-pin header
Connector location: CHA_FAN1 and CHA_FAN2
4
1
Pin
Definition
1
GND
3
SENSE
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
+12V
4
PWM
Audio Amplifier Connector
Connector type: 1x4 4-pin header
Connector location: AMP_CON1
1
4
1
4
Pin
Definition
1
ROUTP
3
LOUTN
14
Pin
Definition
2
ROUTN
4
LOUTP
NEX 913 User Manual
