Chapter 2: Jumpers and Connectors

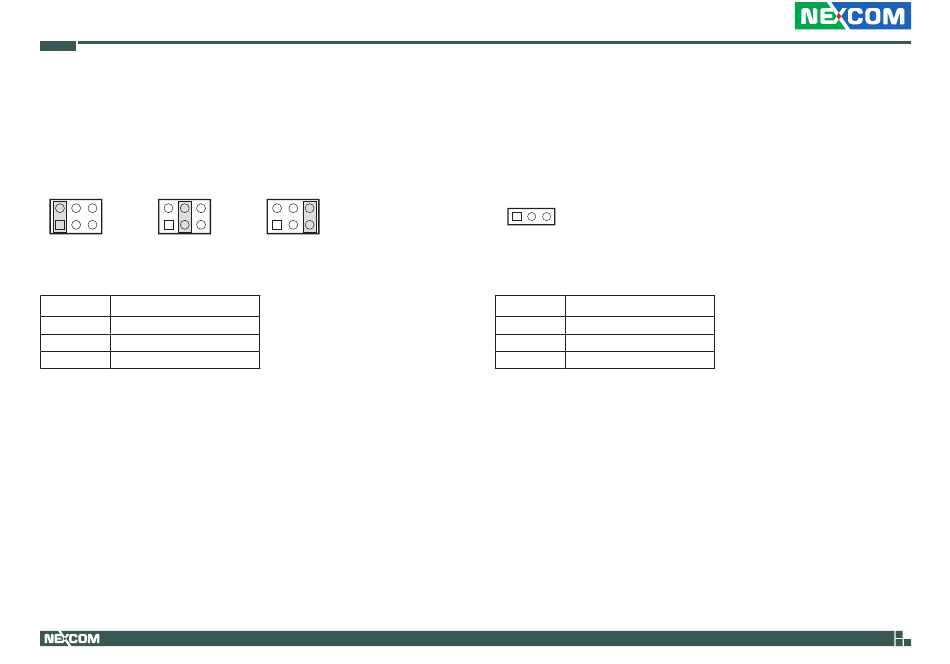

COM1 Ring/+5V/+12V Selection
Connector type: 2x3 6-pin header
Connector location: COM1_V1
2
6
2
6
1
5
1
5
1-2 On
3-4 On
Pin
Definition
1-2 On
+12V
3-4 On
+5V
5-6 On
Ring
5-6 On: default
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
2
6
1
5
5-6 On
(Default)
Intel
ME
®
Connector type: 1x3 3-pin header
Connector location: DIS_ME
1
3
Pin
Settings
1-3 Off
Enable ME Flash Security
1-2 On
Enable ME Flash Security
2-3 On
Disable ME Flash Security
1-3 Off: default
11
NEX 913 User Manual
