2. Specifications
2.1. Physical Dimensions
3499mm (Sectional)
2296mm (Tip-up)
3300mm (Sectional)
2097mm (Tip-up)
150mm
3196mm (Sectional)
1993mm (Tip-up)
31mm
303mm
106mm
211mm

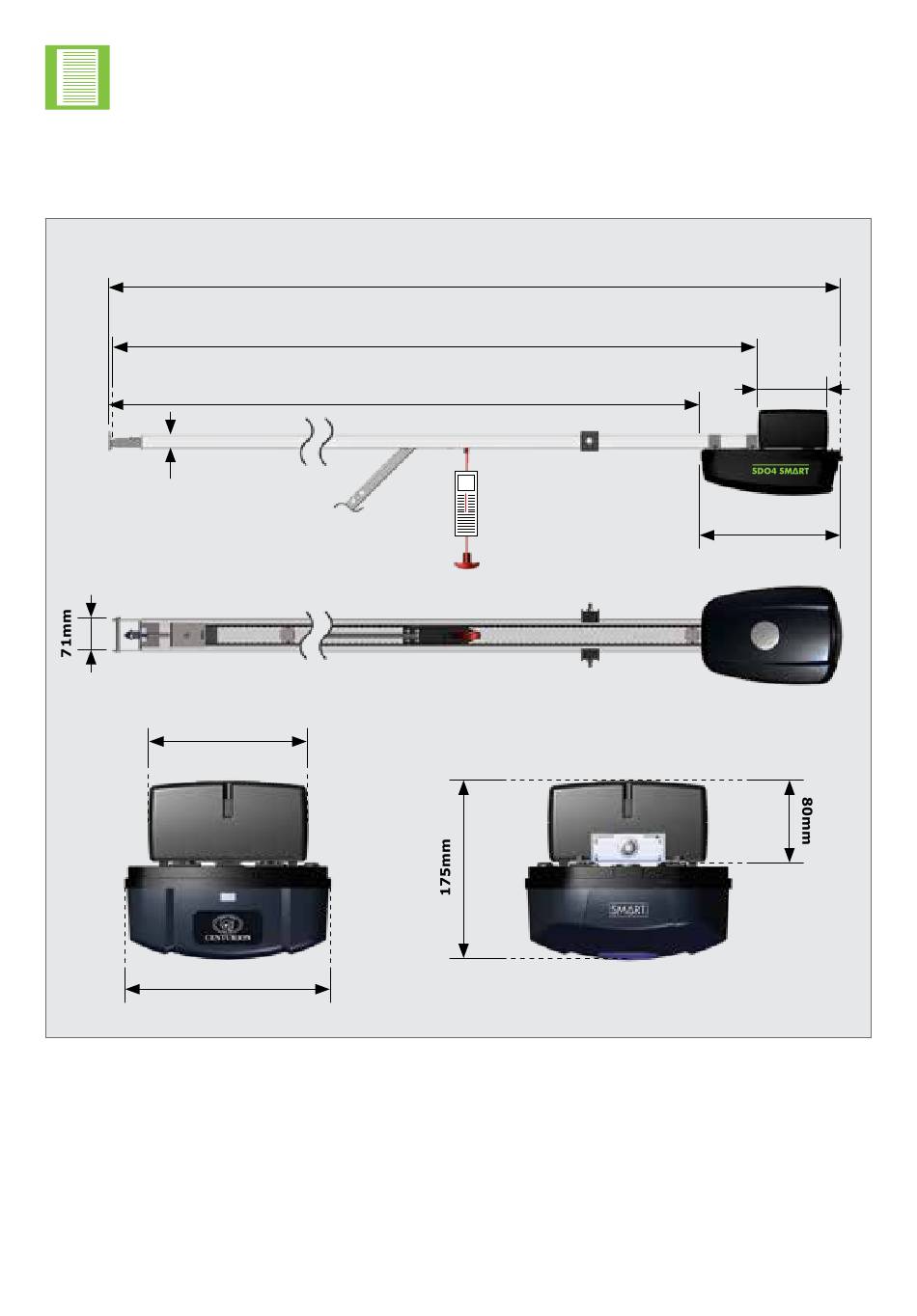

FIGURE 1. OVERALL DIMENSIONS FOR THE SDO4 SMART
