SECTION 7
12V Siren
+12V
-12V
Jumper position
J1
J2 J3
NC
NO
COM
Multi-function
Relay Board
CP13071V3
ELECTRICAL SETUP OF ACCESSORIES
page 50
IO1 and IO2 be configured using
the MyCentsys Pro App.
SDO4 SMART
IO2
+24V
COM
SB
IO1

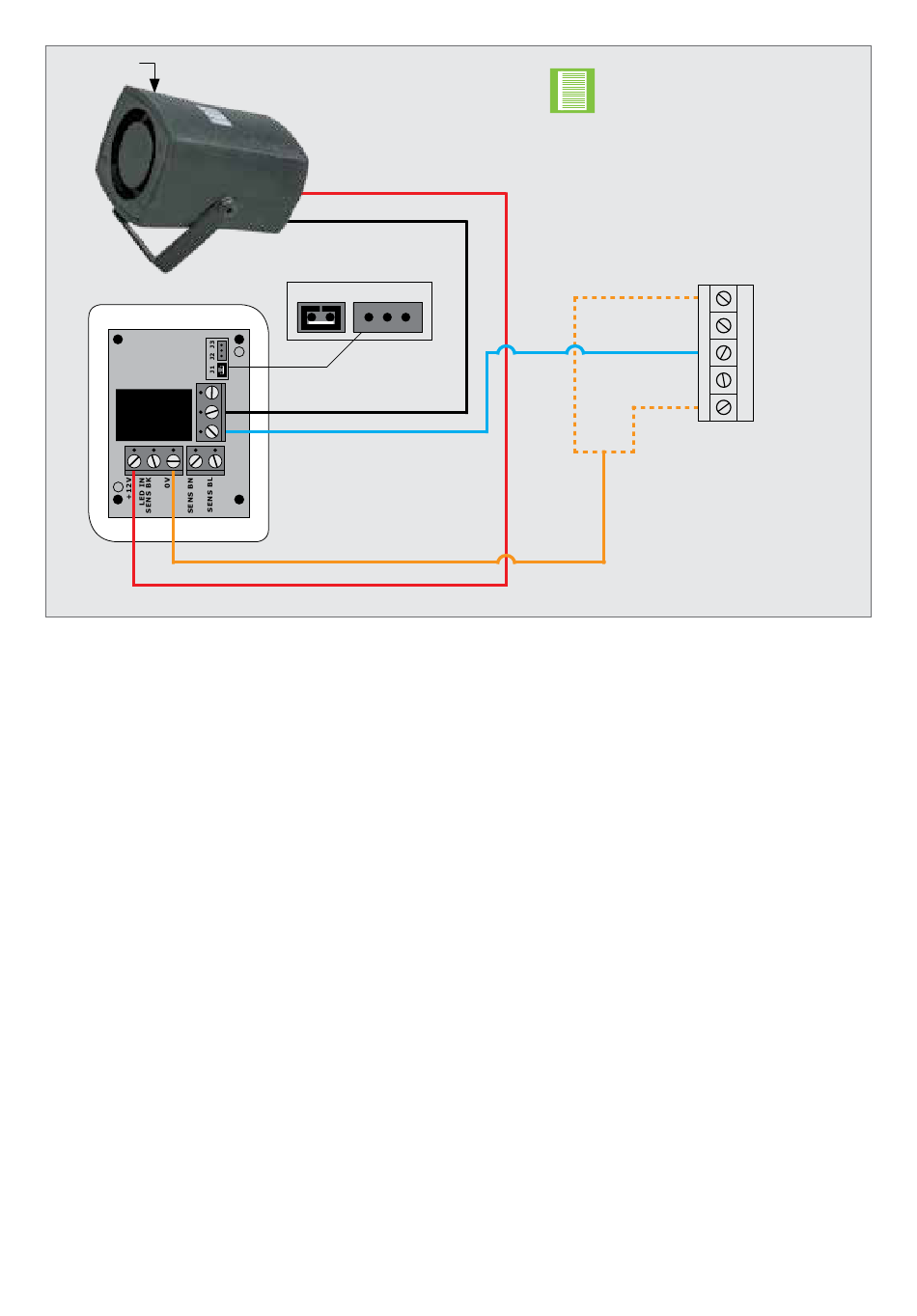

FIGURE 87. 12V SIREN
