CENTURION SYSTEMS SDO4 SMART Installation Manual page 48

SECTION 7
Universal
receiver

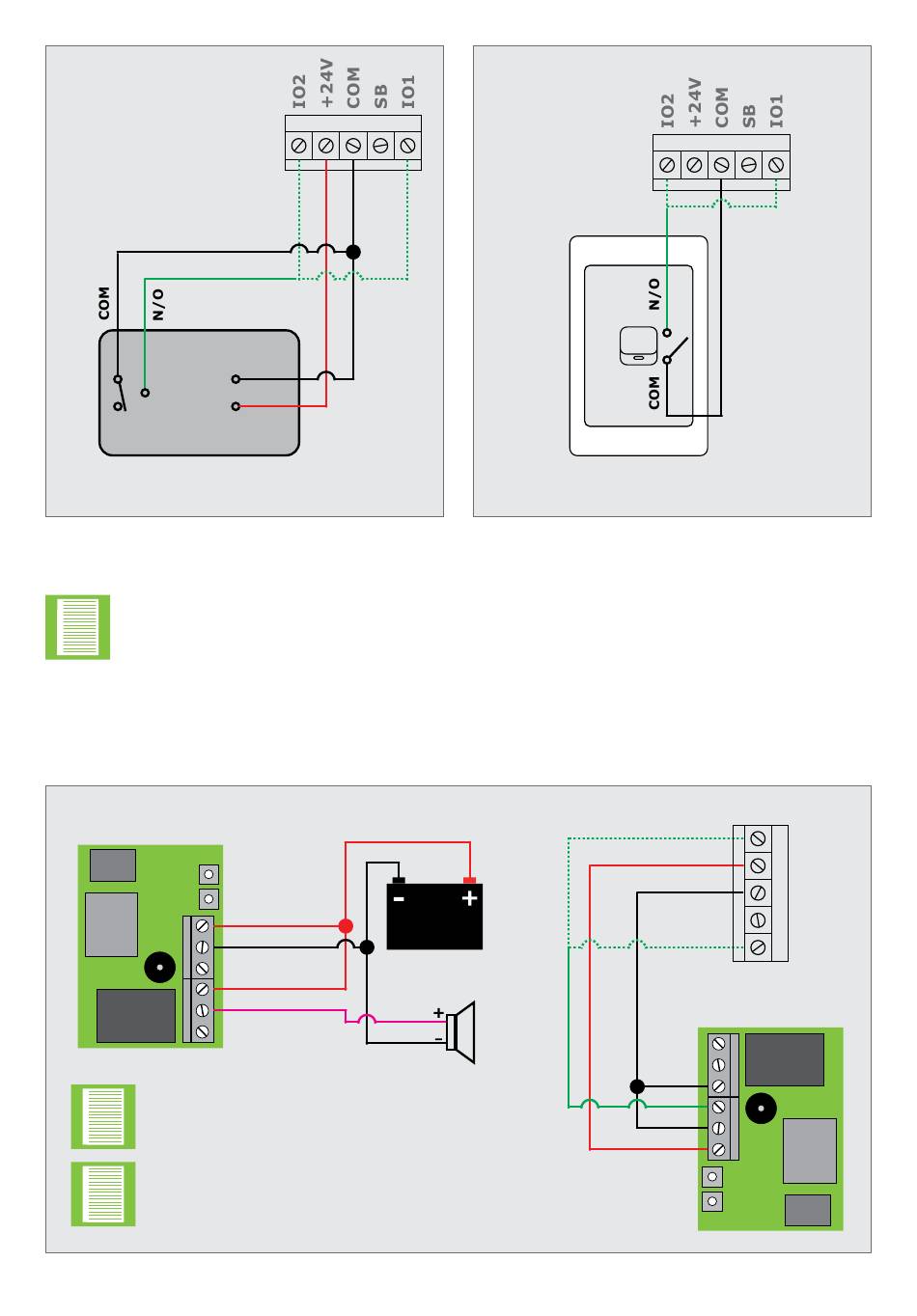

FIGURE 83. WIRING A UNIVERSAL
RECEIVER TO THE
• The trigger/TRG (green wire) in Figures 83, 84 and 85 can be either wired
into IO1 or IO2, depending on the sites individual needs
• IO1 and IO2 can be configured using the MyCentsys Pro mobile application
• IO1 is configured as trigger/TRG by default
Two WiZo-Link wireless modules may be connected to the system for a signal to be
wirelessly relayed to a third party alarm in the event that the anti-tamper input is
triggered.
WiZo 2
( )
Inside House
WiZo 1's INPUT is linked to WiZo 2's OUTPUT.
Please note that this wiring diagram is intended
for legacy sites where WiZo devices have been
installed. The WiZo-Link has been officially
discontinued and, as such, no new devices are sold.
GND
24V +
SDO4 SMART
+12-24V DC
GND
12V DC Lead
Acid Battery
COM
NO
Siren
FIGURE 85. ANTI-TAMPER ALARM WIRING WITH TWO WIZOS
ELECTRICAL SETUP OF ACCESSORIES
Hard-wired
wall switch
FIGURE 84. HARD-WIRING A WALL
SWITCH TO THE
+12-24V DC
page 48
SDO4 SMART
SDO4 SMART
IO2
+24V
COM
SB
IO1
WiZo 1
(
Inside SDO4 SMART
COM
IN
GND
