SECTION 6

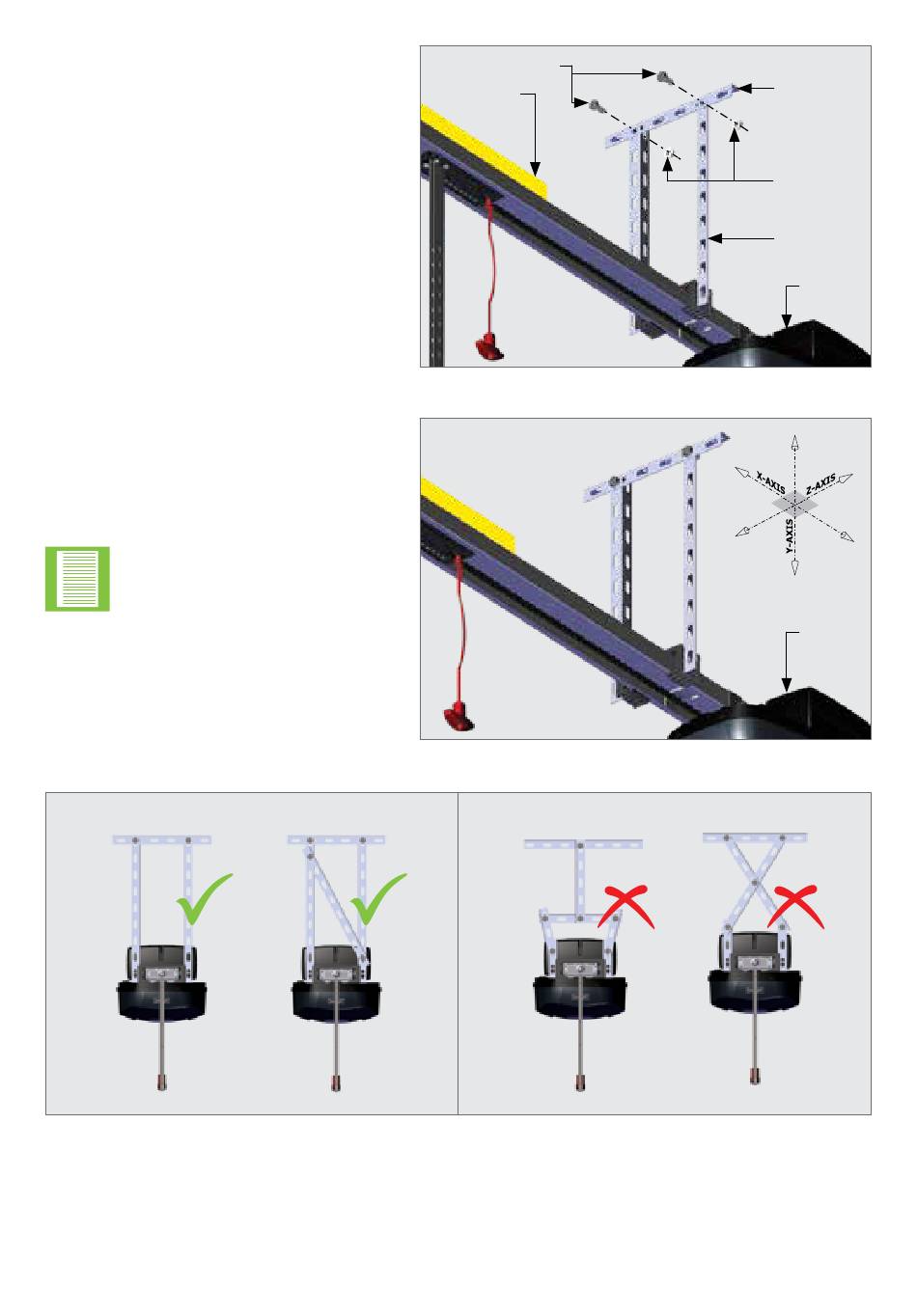

Use a spirit level to ensure that
the SDO4 SMART is still level and
parallel to the ceiling. Align the holes
of the punched angle iron mounted
to the ceiling, with the holes on
the punched angle iron mounted
to the drive rail hanger. Secure it
into position using two supplied M8
flange bolts and nuts using a 13mm
socket.
Using a spirit level, ensure
that the SDO4 SMART is
level on both the X-Axis
and Z-Axis of the horizontal
plain. If it is not, it may
cause the motor to stress,
or the drive rail to twist.
RECOMMENDED
FIGURE 34. CORRECT AND INCORRECT MOUNTING CONFIGURATIONS
OPERATOR INSTALLATION - SECTIONAL DOORS
M8 Flange bolts
Spirit level
NOT RECOMMENDED
page 26
Punched
angle iron
mounted
to ceiling
M8 Flange
nuts
Punched
angle iron
SDO4
SMART
FIGURE 32
SDO4
SMART
FIGURE 33
