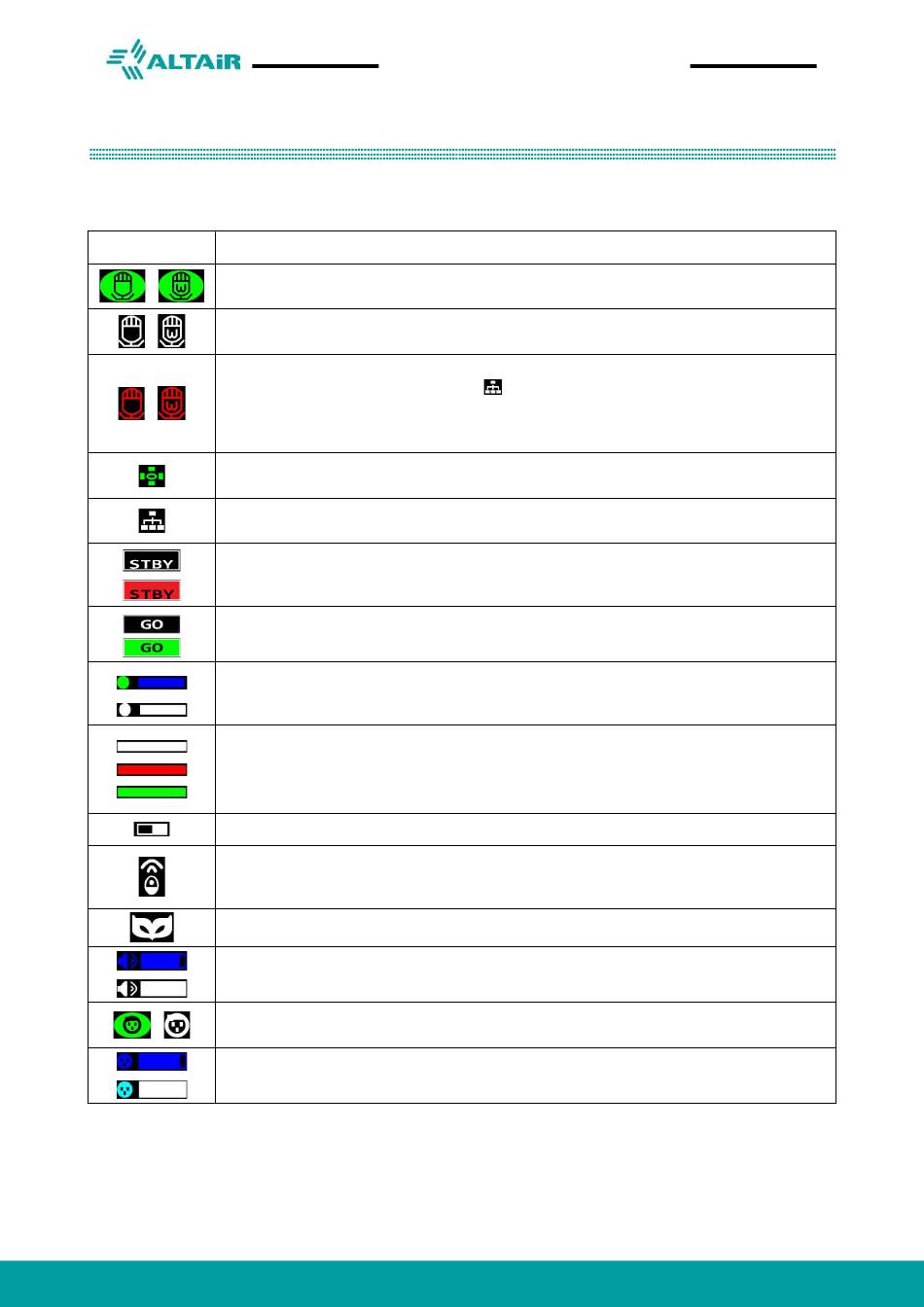

DISPLAY INFORMATION
Icon summary
Description
Icon
Active microphone indicator on the channel. This icon will contain a W when the
/
system is set to High(24kHz) audio bandwidth.
Muted microphone indicator on the channel. This icon will contain a W when the system
/
is set to High(24kHz) audio bandwidth.
Microphone locked on channel indicator. This state occurs when the group to which this
icon belongs is set to One To Many (
/
higher assigned priority) is speaking. This state prevents the user from modifying the
state of his microphone. This icon will contain a W when the system is set to
High(24kHz) bandwidth.
Group indicator configured as Party Line.
(All group members can speak at the same time)
Group indicator set to One To Many.
(Only one member of the group can speak at the same time)
Standby indicator. This indicator will flash red when the CUE is activated until the
corresponding user indicates that they have seen the signal. At that moment, the
indicator will remain solid red, waiting for the "GO".
GO indicator. This indicator will remain with a black background until the "GO" signal is
given, at which time the background will change to green.
Indicator of channel configured as intercom. The circle represents the state of the
channel´s microphone (active=green / muted=white) and the rectangle represents the
listening state on the channel (active=blue / inactive=white).
Thumbnail of channel configured as CUE Transmitter. It will be shown white when the
CUE is inactive, red (flashing) when the CUE is in the "Standby" status awaiting
confirmation from the receiving user of the CUE, red (fixed) when the user has confirmed
the "Standby" status and finally in green when the GO signal is given.
Indicator of channel configured as GPIO.
Indicator of channel configured as remote. The device to be controlled and the
parameters that can be modified are determined through the IPcom configuration
software.
Private call indicator icon.
Level indicator and listening status. It will show blue when listening is active or white
when listening is muted.
Audio line input as SOURCE via an XLR F icon. As the microphone indicator, green
/
means active and white means inactive input.
Level and status of audio line output as DESTINATION via an XLR M icon. Blue
(output active) / white (output inactive).
ALTAIR IPcom Series: Model IPF-316
) and any member of that group (with equal or
8
