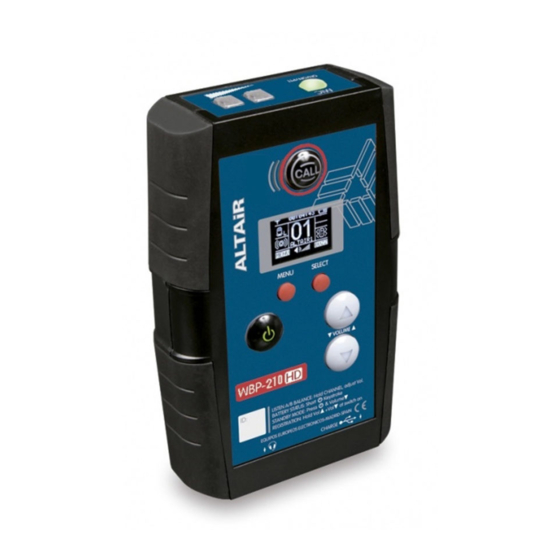

Altair WBP-210 Owner's Manual

Single channel wireless beltpack wb-200 series wireless intercom system
Hide thumbs
Table of Contents

Advertisement

Quick Links

WBP-210
SINGLE CHANNEL WIRELESS BELTPACK
WB-200 SERIES WIRELESS INTERCOM SYSTEM
OWNERS MANUAL
ISSUE 29J10
AUDIO ELECTRONICS DESIGN
AUDIO ELECTRONICS DESIGN
AUDIO ELECTRONICS DESIGN
AUDIO ELECTRONICS DESIGN
EQUIPOS EUROPEOS ELECTRÓNICOS, S.A.L
Avda. de la Industria, 50. 28760 TRES CANTOS-MADRID (SPAIN).
34-91-761 65 80
34-91-804 43 58
altair@altairaudio.com
www.altairaudio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBP-210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altair WBP-210

Summary of Contents for Altair WBP-210

  • Page 1 WBP-210 SINGLE CHANNEL WIRELESS BELTPACK WB-200 SERIES WIRELESS INTERCOM SYSTEM OWNERS MANUAL ISSUE 29J10 AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN EQUIPOS EUROPEOS ELECTRÓNICOS, S.A.L Avda. de la Industria, 50. 28760 TRES CANTOS-MADRID (SPAIN). 34-91-761 65 80 34-91-804 43 58 altair@altairaudio.com...

  • Page 2: Table Of Contents

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 1. INTRODUCTION............................3 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS..............4 2.1 UPPER PANEL................................4 2.2 FRONT PANEL.................................4 2.3 REAR PANEL................................4 3. OPERATION..............................5 3.1 HEADSET CONNECTION............................5 3.2 MIC ON/OFF/PUSH TO TALK SWITCH (TALK)......................6 3.3 VOLUME UP/DOWN SWITCHES..........................6 3.4 CALL SWITCH.................................6 3.5 OLED DISPLAY................................7...

  • Page 3: Introduction

    It is very important to read it carefully, mainly the paragraphs marked as NOTE, PRECAUTION and DANGER, for your security. Save the original packing, you can re-use it to transport the unit. NEVER SHIP THE ALTAIR WBP-210 WITHOUT ITS ADDECUATE PACKAGE.

  • Page 4: Switches, Controls, Adjustments And Connectors

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS Switches, controls, adjustments and connectors that you can find in your ALTAIR intercom beltpack. The description and explanation of each one will be found in the corresponding section. 2.1 UPPER PANEL - MIC SWITCH.

  • Page 5: Operation

    WBP-200/202 on the same installation. In order to begin to use its new beltpack ALTAIR WBP-210, turn on the base station on which the beltpack is registered (if it is not registered to any base, goes to the registry section).

  • Page 6: Mic On/Off/Push To Talk Switch (Talk)

    The unit provides a MIC-KILL (turns off the MIC) system, so that when the mic is enabled it is possible to muted it by the MIC-KILL function of the base station ALTAIR WBP-200 or a master station EF-200, connected to the base station. This MIC-KILL system is compatible with other intercom systems of the market.

  • Page 7: Oled Display

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK with the wireless beltpack that is calling at this time (if the call is from the base station does not indicate any number associated), if the vibrator is enabled (see vibrator on/off section for more information) will be vibrate, and if the buzzer is enabled (see buzzer on/off section for more information) an intermittent sound will take place during about three seconds.

  • Page 8: Microphone Extra Gain

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK If the microphone phantom power is enabled, this icon: appears near to the microphone icon When using electret type mics, MIC level must be set to around 5 steps higher than minimum position as general recommendation. Set also the SIDE TONE setting accordingly.

  • Page 9: Changing The Beltpack Name

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 3.6.7 CHANGING THE BELTPACK NAME With the Name MENU, the user can change the beltpack name that appears on the display , under the beltpack registration number, this name has 7 characters, selected by the user.

  • Page 10: Twin Mode

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK lock the keys configured in the keyboard lock configuration (see section 3.6.10) TOP Panel, FRONT panel or all. The keyboard lock can be enabled via the appropriate menu, or directly without accessing the beltpack menu, pressing the ON/OFF...

  • Page 11: Beltpack Deregistration

    At this moment you can begin to use your ALTAIR WBP-210 wireless beltpack. To turn off the beltpack, press and hold two seconds the ON/OFF switch when the beltpack is turned on.

  • Page 12: Select Switch

    The unit provides a BUZZER-KILL (turns off the BUZZER) system, so that when the buzzer is enabled it is possible to muted it by the BUZZER-KILL function of the base station ALTAIR WBS-200, WBS-202 or a master station ALTAIR EF-200, connected to the base station. This BUZZER-KILL system is compatible with other intercom systems of the market.

  • Page 13: Auxiliary Battery

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 4.1 AUXILIARY BATTERY The wireless beltpack has a battery holder to place an alkaline battery, Ni-MH battery 2500 mA/h or lithium battery of AA size, which gives us a range of 3/4/5 hours respectively with the main battery discharged.

  • Page 14: Troubleshooting Guide

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 6. TROUBLESHOOTING GUIDE WHEN POSSIBLE CAUSES AND SOLUTIONS 1) Abnormal low range. a) With the beltpacks on, switch off the base station, wait for 30 seconds and then switch on to reorganize links. 2) Beltpack switch on but does a) Beltpack is not registered.

  • Page 15: Battery Charger Altair Wbpc-210

    The charge time is approximately of four hours with the batteries totally discharged. 7.1 CHANGING THE FUSE The battery charger ALTAIR WBPC-200 is set to operate from 100 VAC, 50-60Hz to 240VAC, 50-60Hz. Make sure that the unit is disconnected of the mains.

  • Page 16: Beltpack Battery Charge

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 7.3 BELTPACK BATTERY CHARGE The battery charger ALTAIR WBPC-210 has four connectors to allow the charge up to four wireless beltpacks at the same time. Take any of the battery charger connector and insert it in a wireless beltpack connector. If the battery charger is connected, the connector associated LED of the battery charger will change from green to orange, indicating that the wireless beltpack batteries are charging.

  • Page 17: Technical Specifications

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 8. TECHNICAL SPECIFICATIONS PREAMPLIFIER MICROPHONE TYPE: Dynamic or electret. • INPUT IMPEDANCE: 4K7. • NOMINAL LEVEL: -45 dBu. • PHANTOM VOLTAGE: +9 VDC (internal preset ). • HEADSET AMPLIFIER IMPEDANCE: • 200 Ω (nominal), 2KΩ (maximum).

  • Page 18: Warranty

    WBP-210 SINGLE CHANNEL WIRELESS BELTPACK 9. WARRANTY This unit is warranted by Equipos Europeos Electrónicos to the original user, against flaws in the manufacturing and in the materials, for a period of two years (one year depending on some countries), starting from the date of sale.
  • Page 19 WBP-210 SINGLE CHANNEL WIRELESS BELTPACK European Union Waste Electronics Information Unión Europea Información sobre residuos electrónicos Waste from Electrical and Electronic Equipment (WEEE) directive The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products.
