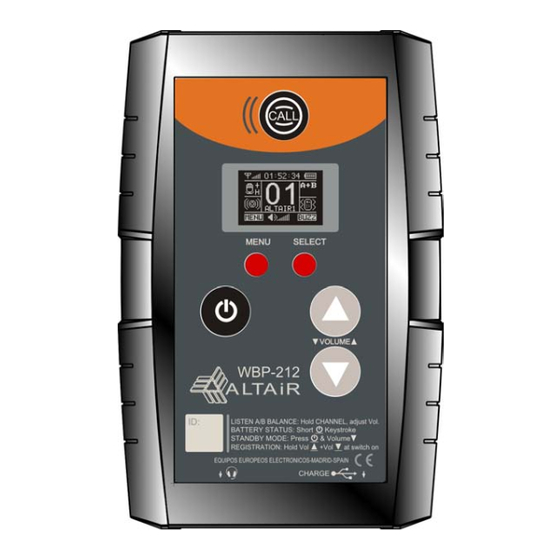

Altair WBP-212 Owner's Manual

Wireless dual channel manager beltpack wb-200 series wireless intercom system
Hide thumbs
Table of Contents

Advertisement

Quick Links

WBP-212
WIRELESS DUAL CHANNEL MANAGER BELTPACK
WB-200 SERIES WIRELESS INTERCOM SYSTEM
OWNERS MANUAL
ISSUE 29J10
AUDIO ELECTRONICS DESIGN
AUDIO ELECTRONICS DESIGN
AUDIO ELECTRONICS DESIGN
AUDIO ELECTRONICS DESIGN
EQUIPOS EUROPEOS ELECTRÓNICOS, S.A.L
Avda. de la Industria, 50. 28760 TRES CANTOS-MADRID (SPAIN).
34-91-761 65 80
34-91-804 43 58
altair@altairaudio.com
www.altairaudio.com

Advertisement

Table of Contents
loading

Related Manuals for Altair WBP-212

Summary of Contents for Altair WBP-212

  • Page 1 WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK WB-200 SERIES WIRELESS INTERCOM SYSTEM OWNERS MANUAL ISSUE 29J10 AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN EQUIPOS EUROPEOS ELECTRÓNICOS, S.A.L Avda. de la Industria, 50. 28760 TRES CANTOS-MADRID (SPAIN).

  • Page 2: Table Of Contents

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 1. INTRODUCTION............................3 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS..............4 2.1 UPPER PANEL................................4 2.2 FRONT PANEL.................................4 2.3 REAR PANEL................................4 3. OPERATION..............................5 3.1 HEADSET CONNECTION............................5 3.2 MIC ON/OFF/PUSH TO TALK SWITCH (TALK)......................6 3.3 CHANNEL SELECTION SWITCHES...........................6 3.4 STAGE ANOUNCE (SA) KEY............................6 3.5 CALL SWITCH.................................7...

  • Page 3: Introduction

    It is very important to read it carefully, mainly the paragraphs marked as NOTE, PRECAUTION and DANGER, for your security. Save the original packing, you can re-use it to transport the unit. NEVER SHIP THE ALTAIR WBP-212 WITHOUT ITS ADDECUATE PACKAGE.

  • Page 4: Switches, Controls, Adjustments And Connectors

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS Switches, controls, adjustments and connectors that you can find in your ALTAIR intercom beltpack. The description and explanation of each one will be found in the corresponding section.

  • Page 5: Operation

    WBP-200/202 on the same installation. In order to begin to use its new beltpack ALTAIR WBP-212, turn on the base station on which the beltpack is registered (if it is not registered to any base, goes to the registry section).

  • Page 6: Mic On/Off/Push To Talk Switch (Talk)

    The unit provides a MIC-KILL (turns off the MIC) system, so that when the mic is enabled it is possible to muted it by the MIC-KILL function of the base station ALTAIR WBP-200 or a master station EF-200, connected to the base station. This MIC-KILL system is compatible with other intercom systems of the market.

  • Page 7: Call Switch

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK Press and hold the Channel Select switch and when the AB lamps flashes (wait 2 seconds), start your message from the headset microphone. When done, release the switch. On the WBS-202 base station, the front panel SA led will glow for the time you are depressing this switch and the message is carried out from the SA output to the external PA equipment.

  • Page 8: Menu Switch

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 3.7 MENU SWITCH When the MENU switch is pressed and there isn't active any message on the wireless beltpack, appears the menu of the beltpack, with which various parameters of the beltpack can be configured. If any beltpack message or the beltpack menu are active, the system return to normal mode.

  • Page 9: Sidetone Gain Adjustment

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 3.7.4 SIDETONE GAIN ADJUSTMENT The sidetone gain adjustment allows attenuating or amplifying the own mic signal that we listen in our headphones. The sidetone gain can be adjust with the appropriate menu, or directly without...

  • Page 10: Changing The Beltpack Name

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 3.7.8 CHANGING THE BELTPACK NAME With the Name MENU, the user can change the beltpack name that appears on the display , under the beltpack registration number, this name has 7 characters, selected by the user.

  • Page 11: Keyboard Lock

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 3.7.12 KEYBOARD LOCK The keyboard lock is useful to prevent unwanted use and to avoid unwanted key press. With this menu option you can lock the keys configured in the keyboard lock configuration (see section 3.7.11) TOP Panel, FRONT panel or all.

  • Page 12: Beltpack Deregistration

    At this moment you can begin to use your ALTAIR WBP-212 wireless beltpack. To turn off the beltpack, press and hold two seconds the ON/OFF switch when the beltpack is turned on.

  • Page 13: Volume Up/Down Switches

    The unit provides a BUZZER-KILL (turns off the BUZZER) system, so that when the buzzer is enabled it is possible to muted it by the BUZZER-KILL function of the base station ALTAIR WBS-202 or a master station ALTAIR EF-200, connected to the base station. This BUZZER-KILL system is compatible with other intercom systems of the market.

  • Page 14: Special Operations

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 4. SPECIAL OPERATIONS In order to set-up some of the wireless beltpack possibilities, the unit must be opened removing the bottom auxiliary cover, removing a screw. NOTE: This type of operations takes place with the unit is opened; the best thing should be to carry it out by a qualified technician.

  • Page 15: Troubleshooting Guide

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 6. TROUBLESHOOTING GUIDE WHEN POSSIBLE CAUSES AND SOLUTIONS 1) Abnormal low range. a) With the beltpacks on, switch off the base station, wait for 30 seconds and then switch on to reorganize links. 2) Beltpack switch on but does a) Beltpack is not registered.

  • Page 16: Battery Charger Altair Wbpc-210

    The charge time is approximately of four hours with the batteries totally discharged. 7.1 CHANGING THE FUSE The battery charger ALTAIR WBPC-200 is set to operate from 100 VAC, 50-60Hz to 240VAC, 50-60Hz. Make sure that the unit is disconnected of the mains.

  • Page 17: Beltpack Battery Charge

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 7.3 BELTPACK BATTERY CHARGE The battery charger ALTAIR WBPC-210 has four connectors to allow the charge up to four wireless beltpacks at the same time. Take any of the battery charger connector and insert it in a wireless beltpack connector. If the battery charger is connected, the connector associated LED of the battery charger will change from green to orange, indicating that the wireless beltpack batteries are charging.

  • Page 18: Technical Specifications

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 8. TECHNICAL SPECIFICATIONS PREAMPLIFIER MICROPHONE TYPE: Dynamic or electret. • INPUT IMPEDANCE: 4K7. • NOMINAL LEVEL: -45 dBu. • PHANTOM VOLTAGE: +9 VDC (internal preset ). • HEADSET AMPLIFIER IMPEDANCE: • 200 Ω (nominal), 2KΩ (maximum).

  • Page 19: Warranty

    WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK 9. WARRANTY This unit is warranted by Equipos Europeos Electrónicos to the original user, against flaws in the manufacturing and in the materials, for a period of two years (one year depending on some countries), starting from the date of sale.
  • Page 20 WBP-212 WIRELESS DUAL CHANNEL MANAGER BELTPACK European Union Waste Electronics Information Unión Europea Información sobre residuos electrónicos Waste from Electrical and Electronic Equipment (WEEE) directive The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products.
