HARDWARE

Rear Panel

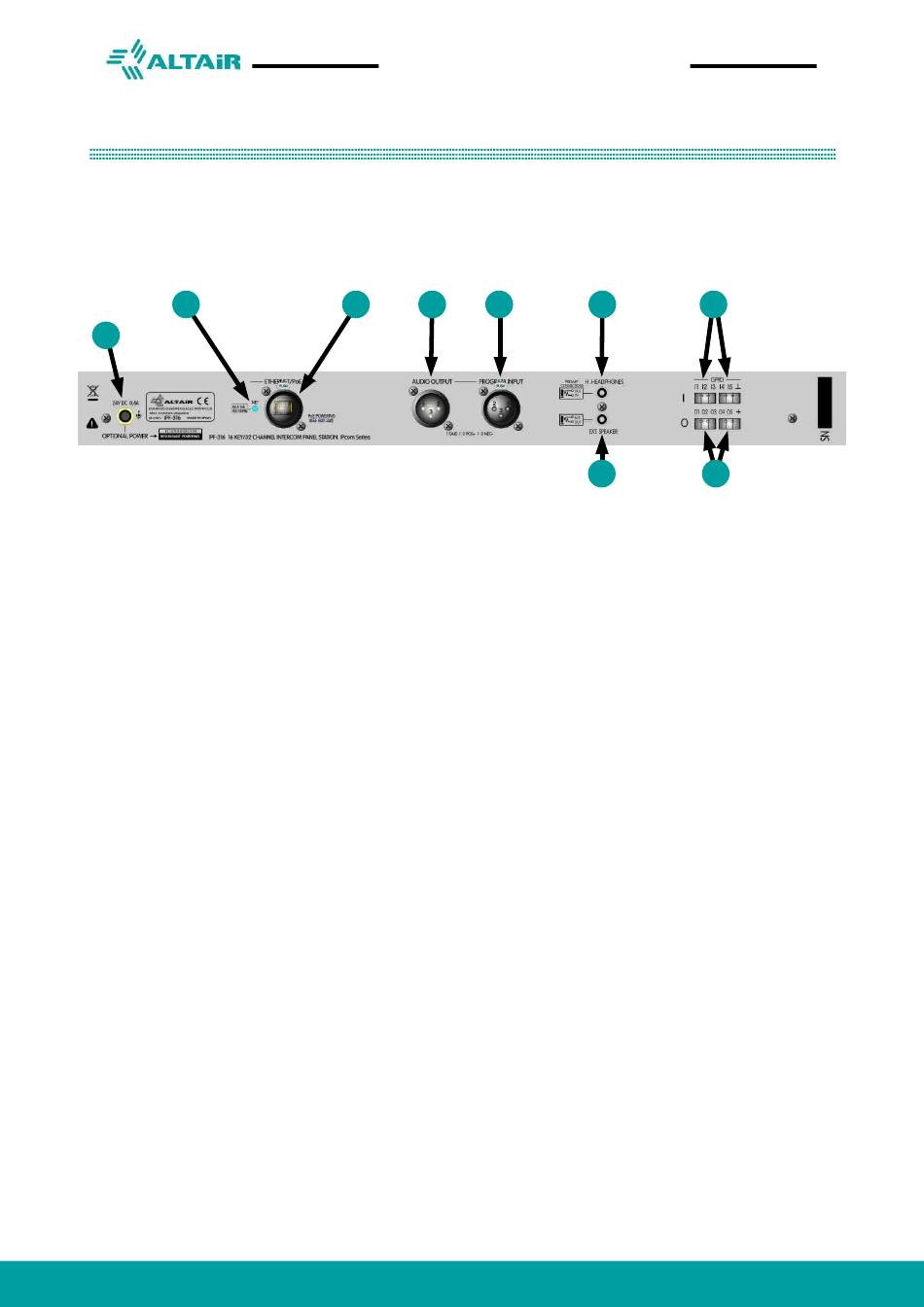

The rear panel of the IPF-316 panel contains the following connectors and indicators:
B
A
Safety DC Connector (A)
DC to 24V safety connector with anti-pull lock.
PINOUT: Pin +24 Vdc | Body 0V GND
NOTE: In case of using PoE power, it is not necessary to use this connector
Net Status (B)
This LED will indicate the status of the Ethernet connection and the Panel powering.
Led will flash green with intermittent blue sparks when the Panel is connected to an operating switch.
Led will flash green/blue when audio packets are transmitted around the system.
Ethernet Connector (C)
Ethernet RJ45 connector that supports PoE (Power over Ethernet) power in accordance with IEEE802.af
standard. Connector allows either etherCON (Neutrik TM) and standard RJ-45. 100/1000 Mb
Audio Output (D)
3-pin male XLR connector whose function is balanced analog audio output port.
Line Input (E)
3-pin female XLR connector whose function is balanced analog audio input port.
Headset Headphones Connector (F)
Mini-jack connector for the preamplifier headphones section.
External Speaker Connector (G)
Mini-jack connector for external speakers. Its connection cancels the internal speaker.
GPIO Connectors (H, I)
Phoenix connector for general purpose (GPIO) input (H) and output (I) signals.
ALTAIR IPcom Series: Model IPF-316
C D E F H
G I
