- Page 1 EB-200 BLUETOOTH BASE STATION E-200 SERIES INTERCOM SYSTEM OWNERS MANUAL Issue 19X10 AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN EQUIPOS EUROPEOS ELECTRÓNICOS, S.A.L Avda. de la Industria, 50. 28760 TRES CANTOS-MADRID (SPAIN). 34-91-761 65 80 34-91-804 43 58 altair@altairaudio.com...
-
Page 2: Table Of Contents
BLUETOOTH BASE STATION, E-200 SERIES INTERCOM SYSTEM 1. INTRODUCTION............................3 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS ..............4 2.1 FRONT PANEL................................4 2.2 REAR PANEL................................4 3. OPERATION..............................5 3.1 INTERCOM LINE CONNECTION..........................5 3.2 PAIRING SWITCH..............................6 3.3 MIC SWITCH................................6 3.4 EAR SWITCH................................6 3.5 ANTENNA................................6 3.6 PAIRING THE BLUETOOTH BASE STATION......................6 3.7 UNPAIR ALL UNITS..............................7 3.8 CHANGING THE HEADSET MIC GAIN........................7 3.9 CHANGING THE HEADSET EAR GAIN........................7... -
Page 3: Introduction
The unit incorporates a Class 1 bluetooth connection, which gives a theoretical maximum coverage of 100 meters. It is possible to connect it to the wired system ALTAIR E-200 ALTAIR, or to the wireless system ALTAIR WB-200. The radio link is performed on a compatible headset bluetooth, bluetooth hands free system or a mobile phone with bluetooth connectivity. -

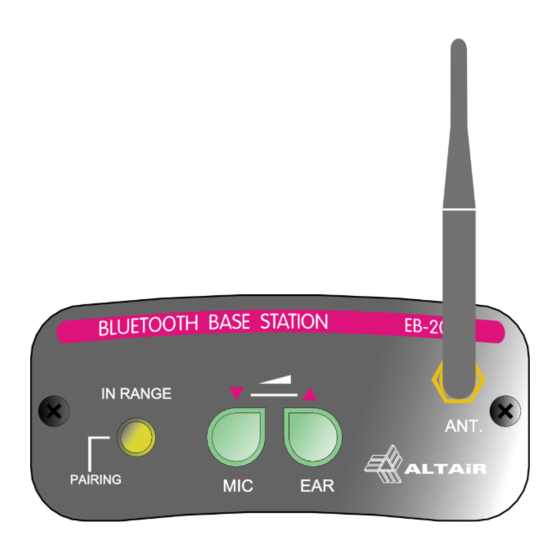

Page 4: Switches, Controls, Adjustments And Connectors
BLUETOOTH BASE STATION, E-200 SERIES INTERCOM SYSTEM 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS These are the switches, controls, adjustments and connectors that you can find in your ALTAIR bluetooth base station. The description and explanation of each one will be found in the corresponding section. -
Page 5: Operation
BLUETOOTH BASE STATION, E-200 SERIES INTERCOM SYSTEM 3. OPERATION The new bluetooth base station ALTAIR EB-200 is compatible with the ALTAIR E-200 cable based intercom systems. This new first on the market station allows the operation of bluetooth devices into the intercom lines. -
Page 6: Pairing Switch
The unit provides a MIC-KILL (turns off the MIC) system, so that when the mic is enabled it is possible to muted it by the MIC-KILL function of the master station ALTAIR EF-200 or ALTAIR WB- 200/WB-202. This MIC-KILL system is compatible with other intercom systems of the market. -
Page 7: Unpair All Units
(with which it is paired). NOTE: The pairing password match of the ALTAIR EB-200 unit by default, is: 0000, suitable for most bluetooth devices. If you want to change, there is a software to do it through the USB connection of the unit. -
Page 8: Special Operations
BLUETOOTH BASE STATION, E-200 SERIES INTERCOM SYSTEM 4. SPECIAL OPERATIONS In order to set-up some of the single channel beltpack, the unit must be opened, removing the two external screws of its rear panel. NOTE: This type of operations takes place with the unit open, for what it should be carried out by a qualified technician. -
Page 9: Technical Specifications
BLUETOOTH BASE STATION, E-200 SERIES INTERCOM SYSTEM 5. TECHNICAL SPECIFICATIONS RADIO FREQUENCY: • (2400 ... 2483,5) MHz. MODULATION: • GFSK (1 Mbps). • P/4 DQPSK (2Mbps). TRANSMIT POWER: Minimum -11 ... -9 dBm. • Maximum • +14 ... +18 dBm. RECEIVE SENSITIVITY: •... -
Page 10: Warranty
Nº de SERIE ........... AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN EQUIPOS EUROPEOS ELECTRÓNICOS, S.A.L Avda. de la Industria, 50. 28760 TRES CANTOS-MADRID (SPAIN). 34-91-761 65 80 34-91-804 43 58 altair@altairaudio.com www.altairaudio.com... - Page 11 Información basada en la Directiva de la unión europea RAEE 2002/96/EC y el Real Decreto 208/2005 AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN AUDIO ELECTRONICS DESIGN EQUIPOS EUROPEOS ELECTRÓNICOS, S.A.L Avda. de la Industria, 50. 28760 TRES CANTOS-MADRID (SPAIN). 34-91-761 65 80 34-91-804 43 58 altair@altairaudio.com www.altairaudio.com...
