DISPLAY INFORMATION

Display Information
Each of the two main displays on the IPF-316 panel shows eight channels, thus a total of 16 channels are
displayed at the same time. Using the PAGE key toggles between the displayed first page of channels 1 to
16 to second page, channels from 17 to 32 (The red box that borders the icons at the top of the Display

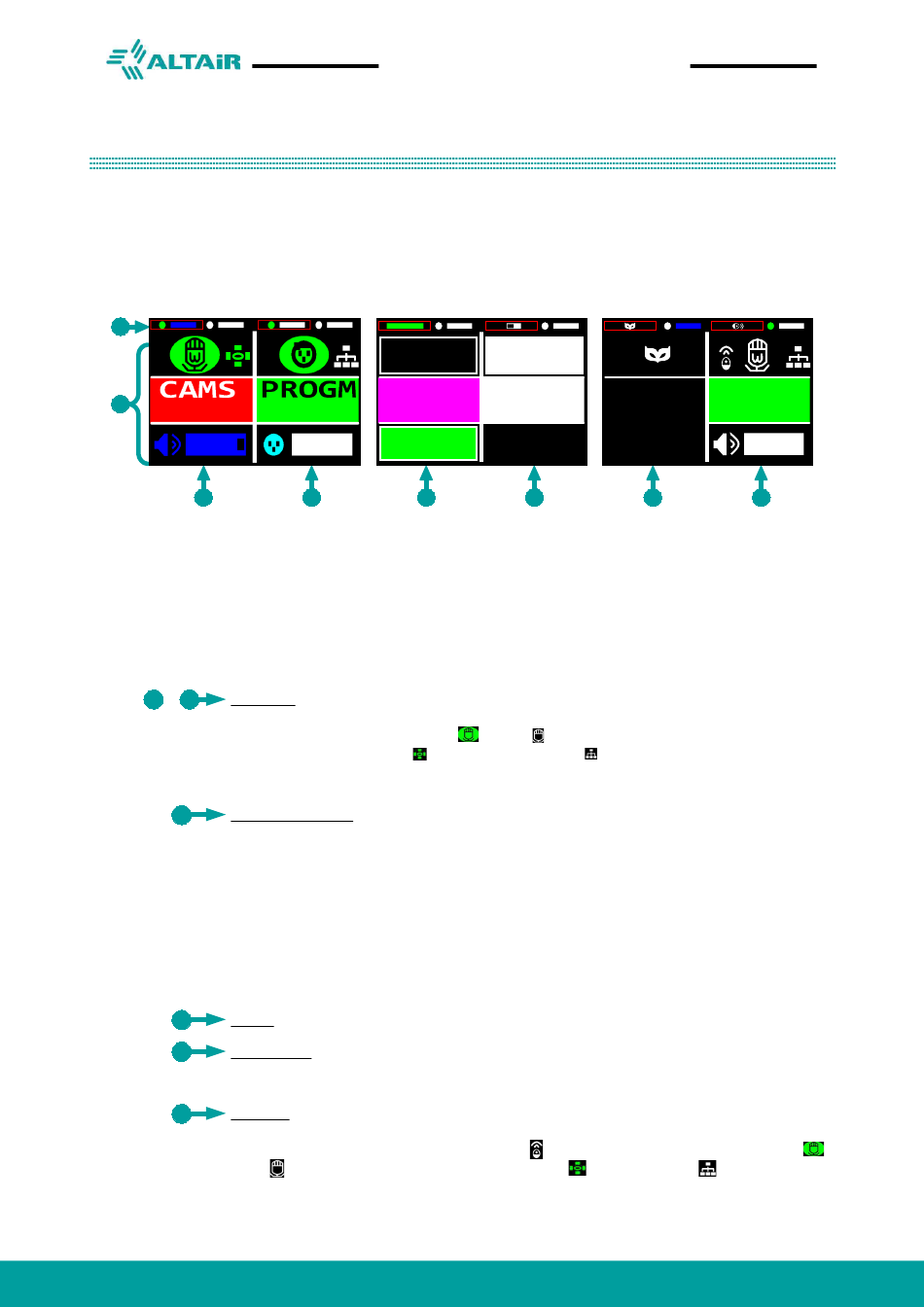

indicates the page that is being displayed). Examples of various channels configured with different functions
are shown below:
1
2
A
The information shown on the Display is divided vertically into two well-differentiated parts:
1. Channel Configuration Summary:
representative icons of the function assigned to each of the 32 channels and their status. The red
box in this section shows the status of the displayed channel and other block the hidden one. Left
block corresponds to the channels on PAGE 1 (1 to 16) and right block to PAGE 2 (17 to 32).
2. Detailed information of the displayed channel: This section is divided into several parts
depending on the type assigned to the displayed channel:
Intercom: Audio communication mode between groups typical of intercom devices.
A
B
y
Section divided into 3 parts. The upper third shows two icons, the first one indicates the
status of the microphone (active
configured as Party Line ( ) or as One To Many ( ). The middle third will display the
name of the assigned group. Finally, the lower part indicates the listening status and the
volume level.
CUE Transmitter: CUE warning transmitter mode. Section divided into 3 parts. The
C
upper part is the "Stand By" indicator, when the operator of the CUE transmitter unit
activates the "Stand By" warning, the STBY icon will flash red and a flashing red sign
will appear on the receiving unit's display indicating said warning. When the operator of
the receiving unit indicates that it is ready to carry out the pertinent action, the STBY
icon of the transmitting unit will become solid red and a solid red banner will appear on
the receiving unit's display. Finally, when the operator of the transmitting unit presses
the GO action, the STBY icon will be displayed with a black background and in the
lower part of this section the GO icon will light up in green. Likewise, a fixed green
sign will appear on the display of the receiving unit, indicating that the pertinent action
must be executed.
GPIO: Mode for generating or receiving signals (General Purpose Inputs Outputs).
D
E
Private call: Point to point intercom mode. Section divided into two parts, the upper part
shows the private call icon. The lower part shows the name of the device to which the
call will be made.
Remote: Mode to remotely control the microphone status, listening status and volume
F
level of a group configured on another device. Section divided into 3 parts: the upper
part shows the remote identification icon ( ), the microphone status icon (open
mute
shows the name of the assigned group; and finally, at the bottom, the listening status
and its volume level are shown.
ALTAIR IPcom Series: Model IPF-316
S T B Y
C U E 1
G O
B
C
Only THIRTY TWO CHANNELS mode:
) and the group settings icon (Party Line
G P I O
O N A I R
IPB-316
BeltPack
IPF-316
6ch
D
E
/ mute
), the second icon indicates if the group is
/ One To Many
7
W I R E -
L E S S
F
This section shows the
/
); the middle part
