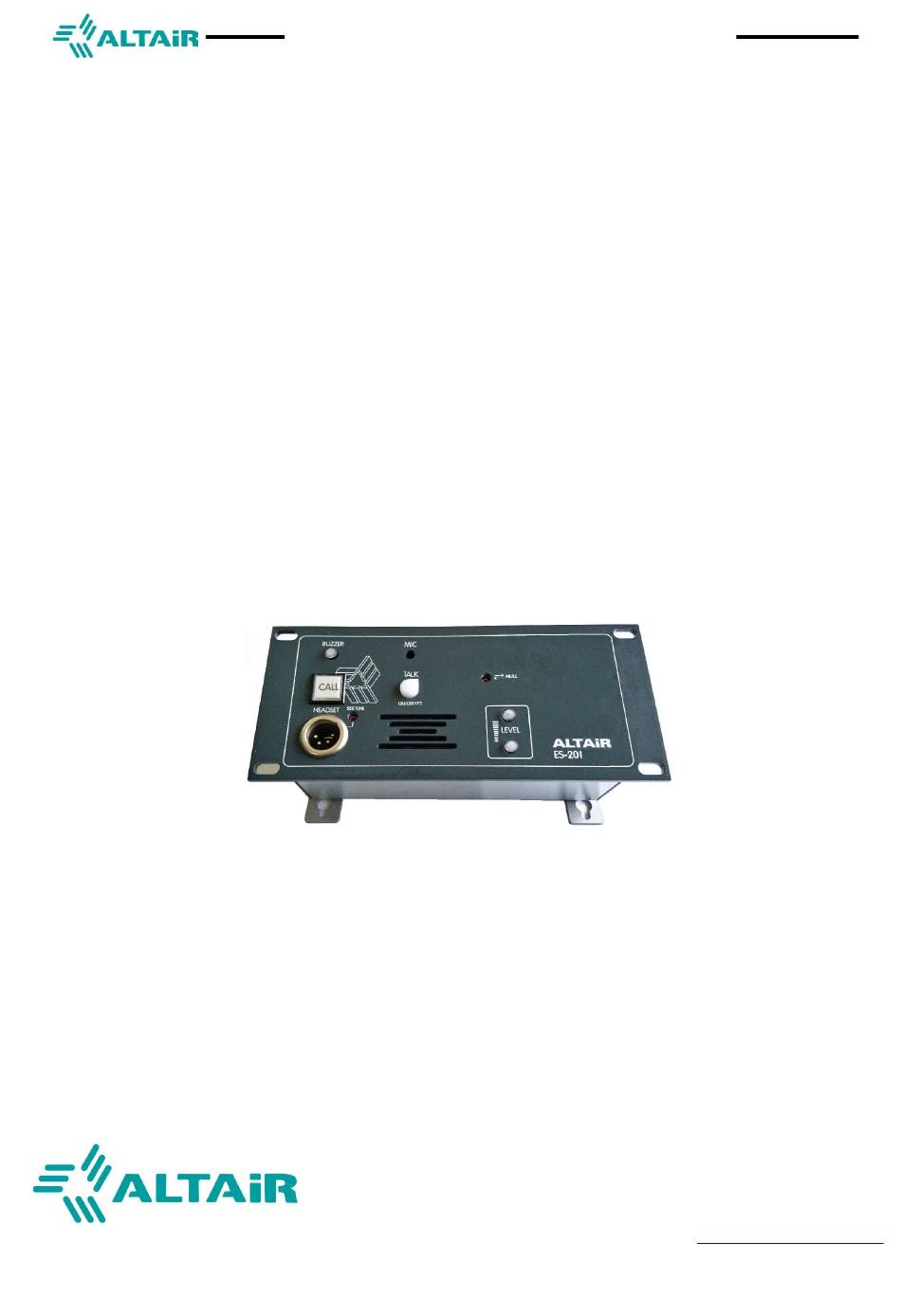

- Page 1 ES-201 DUAL CHANNEL DESK STATION ES-201 SINGLE CHANNEL DESK STATION E-200 Series Intercom Systems OWNERS MANUAL Issue 11Jul18 www.altairaudio.com AUDIO | BROADCAST | COMMUNICATION PRODUCTS COPYRIGHT Equipos Europeos Electrónicos...
-
Page 2: Table Of Contents
ES-201 DUAL CHANNEL DESK STATION 1. INTRODUCTION..............................2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS................4 2.1. FRONT PANEL..............................2.2. REAR PANEL..............................3. SAFETY PRECAUTIONS............................4. INSTALLATION..............................4.1. UNPACKING..............................4.2. MOUNTING..............................4.3. CONNECTOR PANEL BOTTOM/SIDE MOUNTING..................7 4.4. 1-2-3 INTERCOM LINE CONNECTION ......................5. OPERATION................................5.1. -
Page 3: Introduction
Congratulations for your purchase of the ALTAIR ES-201 single channel desk station of the E-200 Series wired intercom system. There are a lot of characteristics that make of the ALTAIR E-201 series one of the most highlighted in the audio professional market, some are... -
Page 4: Switches, Controls, Adjustments And Connectors
ES-201 DUAL CHANNEL DESK STATION 2. SWITCHES, CONTROLS, ADJUSTMENTS AND CONNECTORS Find the switches, controls, adjustments, and connectors located in your ALTAIR intercom desk station. 2.1. FRONT PANEL 1 CALL SWITCH 2 BUZZER ON/OFF SWITCH. HOLD FOR SPECIAL SETTINGS. MORE INFO IN REAR PANEL 3 TALK (MIC) SWITCH. -
Page 5: Rear Panel
ES-201 DUAL CHANNEL DESK STATION 2.2. REAR PANEL 1. INTERCOM LINE. XLR3-M AND XLR3-F CONNECTORS 2. INTERCOM LINE. TERMINAL BLOCK 3.5 mm CONNECTOR 3. MICRO USB CONNECTOR. USED FOR FIRMWARE UPDATE 4. CONNECTOR PLATE. USED TO COVER THE NON POPULATED CONNECTOR... -
Page 6: Safety Precautions
INTERCOM DESK STATION WITHOUT ITS ORIGINAL PACKAGING. 4.2. MOUNTING The ALTAIR ES-201 desk station is designed to be mounted in different ways depending on the application environment. The rear connectors pcb can be mounted on the rear or in the upper side to facilitate connection. -
Page 7: Connector Panel Bottom/Side Mounting
ES-201 DUAL CHANNEL DESK STATION - It is advisable to change the connector panel position to the bottom side. CONNECTOR PANEL See above. Alternatively you can use the terminal block connector depending on the available deep. Thin walls admit XLR mounting so it is no necessary to reverse the connector panel. RACK MOUNT (OPTION) It is possible to mount it by using 2 HE 19”... -
Page 8: Operation
ES-201 DUAL CHANNEL DESK STATION Certain rules have to be followed when installing the cables of an intercom system to avoid ground loops and to minimize the power loss and the possible effect of electromagnetic fields. *Do not connect the XLR pin 1 to the XLR metal housing or to metal wall boxes. The ground loop created could increases notably the system background noise. -
Page 9: Call Switch 1
ES-201 DUAL CHANNEL DESK STATION 5.2. CALL SWITCH The ES-201 desk station unit is provided with a CALL switch allowing to generate a call signalling sent to the intercom channel. The call signal makes the LED associated with the switch start blinking; if the buzzer is enabled (consult buzzer on/off section for more information) an intermittent sound takes place during three seconds on the desk station and to the units (beltpacks, desk stations, master stations, etc.) connected to the same intercom channel. -
Page 10: Panel Microphone 4
The unit provides a MIC-KILL (turns off the MIC) system, so that when the mic is enabled it is possible to be remote muted by the MIC-KILL function from any ALTAIR EF/PS/WBS base stations. This MIC-KILL system is proprietary so is not compatible with other intercom brands. -
Page 11: Setting Phantom Power
ES-201 DUAL CHANNEL DESK STATION SETTING PHANTOM POWER. The electret microphones need to be powered. Make the following setting: Holding down the TALK key press Vol+ to change from OFF (disabled) to ON (active) or from ON to OFF. The unit will produce a long beep when setting to ON and a short beep when OFF (default). -
Page 12: Mic On By Incoming Call
ES-201 DUAL CHANNEL DESK STATION 6.2. MIC ON by incoming CALL MIC on by incoming call sets briefly –as long as the remote call is hold- the mic key activated independent of the state of the key. This mode is normally used to monitor the activity of the room where the unit is installed, to hear someone unable to depress the mic key or for evacuation purposes. -
Page 13: Troubleshooting Guide
When the unit is set to gooseneck mode –hands free mode- the panel mic is disabled and it is necessary to install a 4 pin gooseneck as the Altair MF-200. Speaker is always activated so the null, side-tone and volume settings must be set accordingly to avoid undesirable feedback when mic is activated. -
Page 14: Technical Specifications
ES-201 DUAL CHANNEL DESK STATION 6-Mic is remotely activated when receiving a -Maybe the MIC ON by incom. CALL is CALL activated: See SPECIAL SETTINGS chapter/label on the back 7- Excessive return/feedback when using -Reduce the listening level. boom microphone. -Check NULL setting. -
Page 15: Warranty
ES-201 DUAL CHANNEL DESK STATION 9. WARRANTY This unit is warranted by Equipos Europeos Electrónicos to the original user, against flaws in the manufacturing and in the materials, for a period of two years (one year depending on some countries), starting from the date of sale. Flaws due to wrong use of the unit, internal modifications or accidents, are not covered by this warranty. - Page 16 ES-201 DUAL CHANNEL DESK STATION European Union Waste Electronics Information Unión Europea Información sobre residuos electrónicos Waste from Electrical and Electronic Equipment (WEEE) directive The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products. If you have further questions about recycling, contact your local sales office.
