Optical Trap Kit Fluorescence Light Unit
3.4.
Connection to OTKB
OTKB-FL is designed to work seamlessly with the OTKB system. The complete assembly is shown in Figure 3. To
connect to OTKB, please follow the following instructions:
1. Disconnect the camera segment from the beam expansion segment as shown in Figure 4.
2. Screw the 4 ER05 cage rods to the beam expansion segment. Keep the imaging tube lens (AC245-200-
A) from the original microscope assembly with the camera segment.
Rev D, May 20, 2020

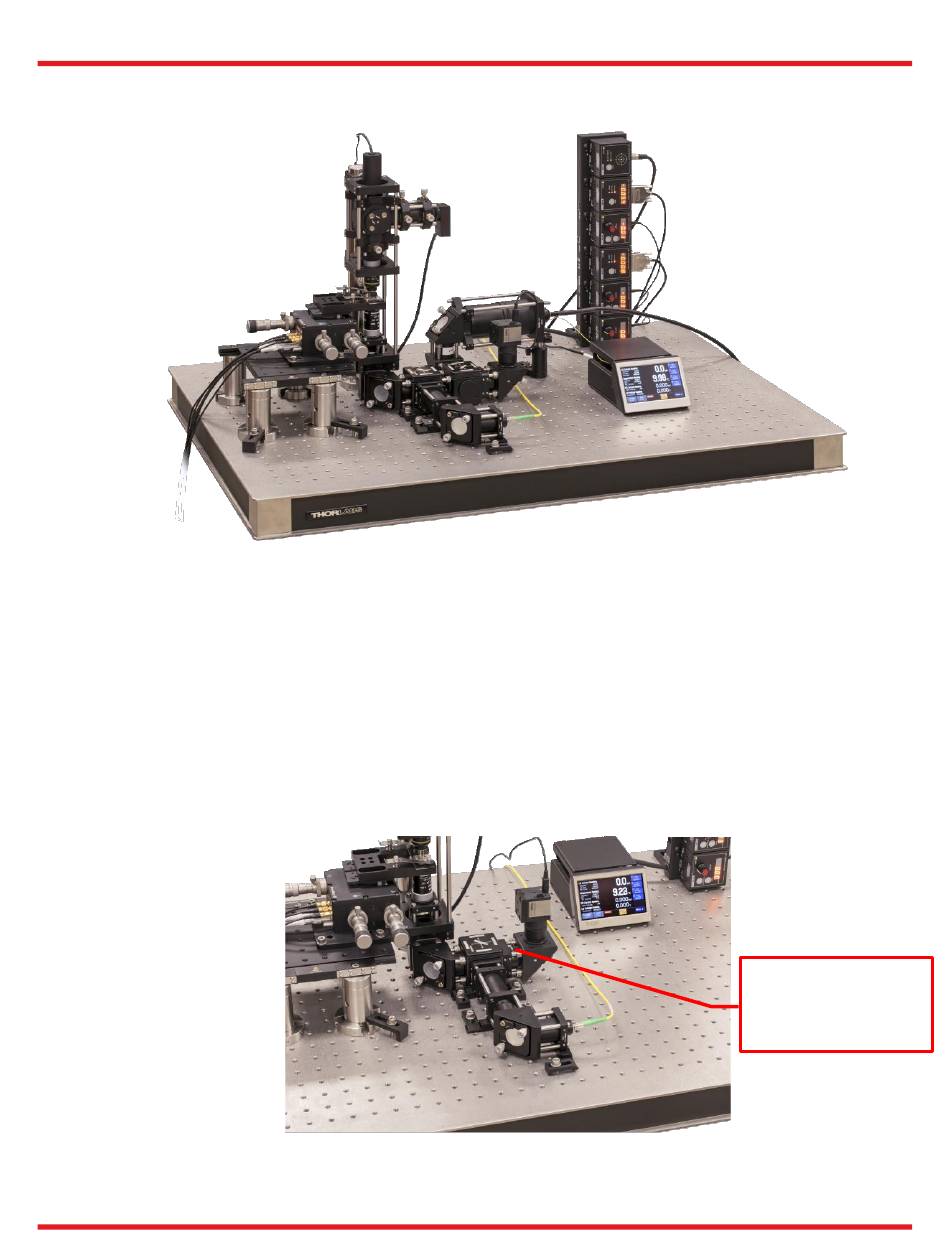

Figure 3
Complete OTKB system with OTKB-FL
Figure 4
Location of the camera segment connections
Chapter 3: OTKB-FL
Disconnect the
Camera Segment
Here
Page 7
